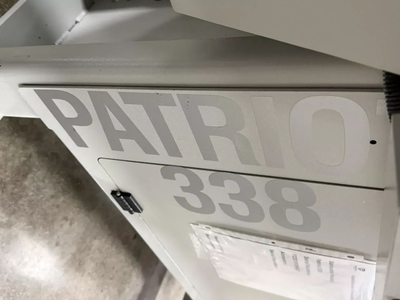

USED 2018 EDGE TECHNOLOGIES PATRIOT 338

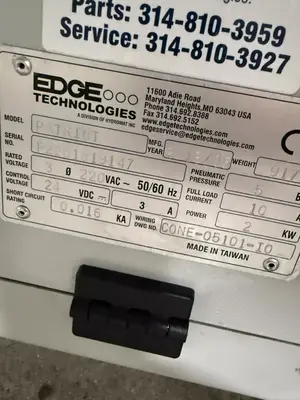

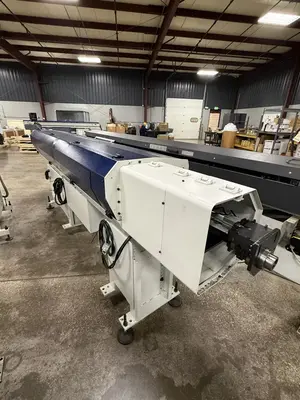

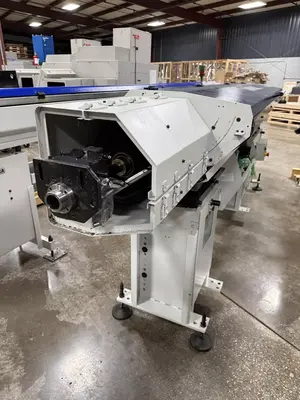

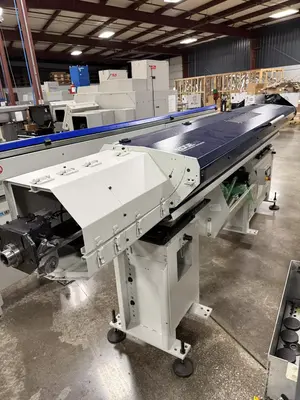

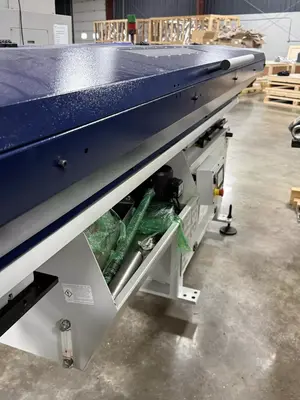

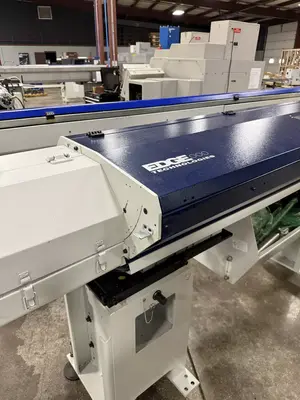

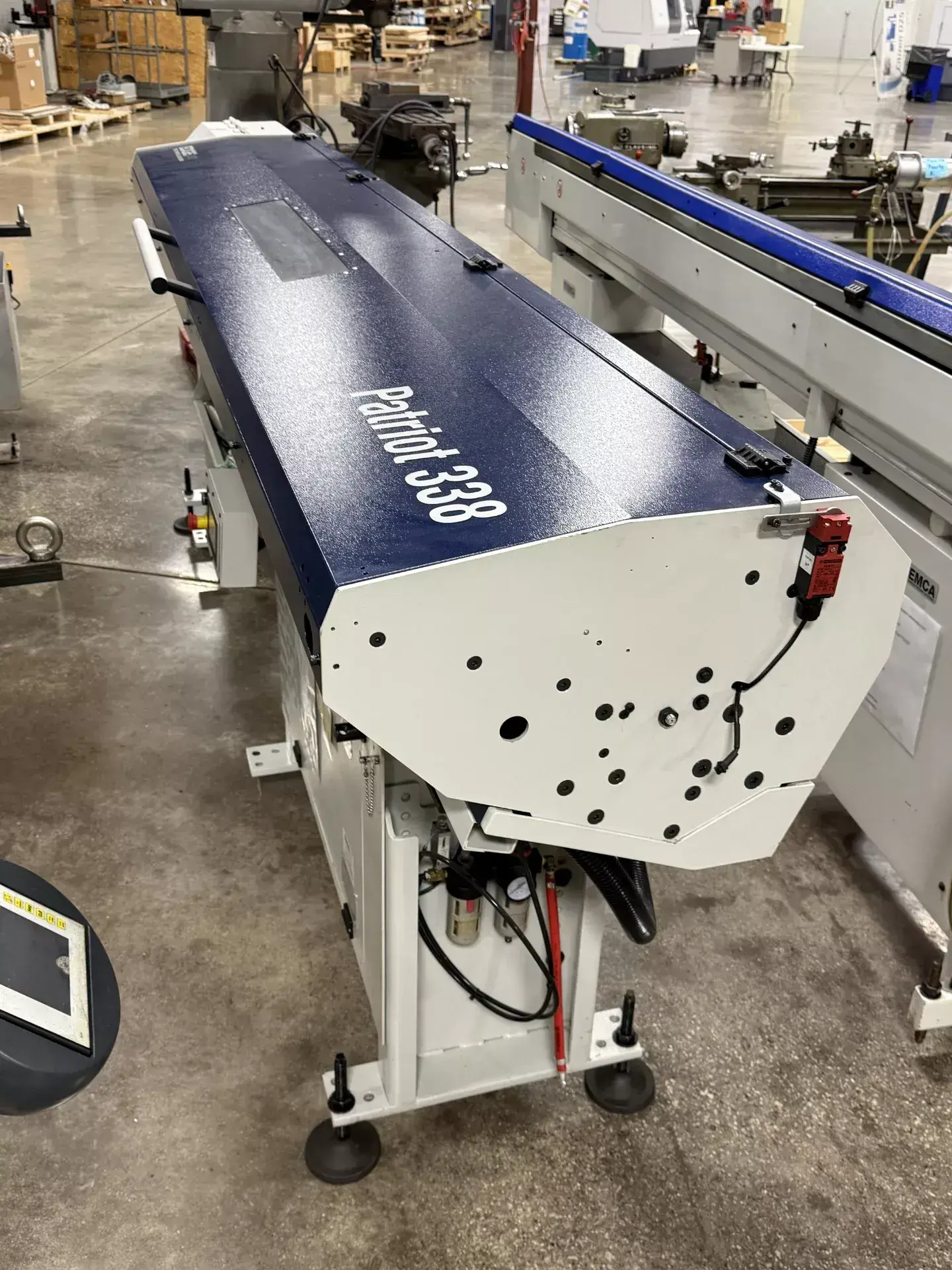

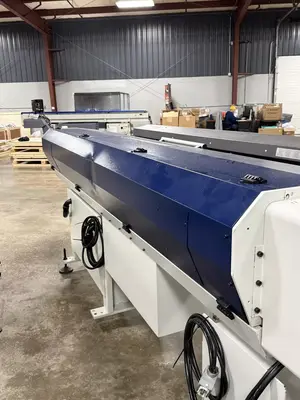

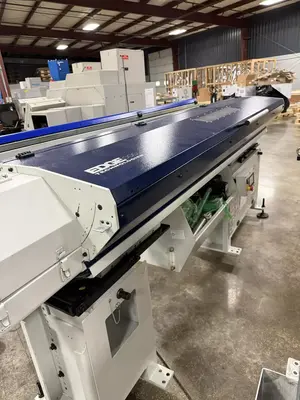

Introducing the 2018 Edge Technologies Patriot 338 Bar Feeder. This magazine-type bar feeder is designed to support fixed or sliding headstock lathes and accommodates round bar stock from 3 mm to 42 mm (0.118" to 1.653") in diameter. It supports bar lengths from 1000 mm to 3800 mm (39.4" to 12'5"), with the current configuration for 8 ft maximum bar length. The system features a 12-inch (304 mm) automatic loading magazine, polyurethane quick-change guide channels for noise and vibration reduction, hydrodynamic bar support utilizing high-volume oil flow, and dual anti-vibration devices, including an internal damping system and a second unit positioned between the telescopic nose and the lathe headstock. Technical specifications include a maximum pusher torque of 450 N (adjustable), forward feed rate up to 593 mm/sec (1400 IPM), return feed rate up to 1000 mm/sec (2360 IPM), approximate 30-second loading cycle for 12-ft bars, 406 mm (16") maximum remnant length, 1.5 kW / 2 kVA power consumption, 230 V / 60 Hz / 3-phase operating voltage, 24 V DC control voltage, 57-liter (15-gallon) oil capacity, ISO 100 cSt machine oil and ISO BG32 air oil requirements, 6 bar (90 PSI) compressed air supply, approximately 8 liters of air consumption per loading cycle, 1130 kg (2500 lb) machine weight without oil, and a material straightness specification of 0.007" TIR per foot. This unit is configured for use with fixed or sliding headstock lathes.
