USED 1996 ACCURPRESS 713010

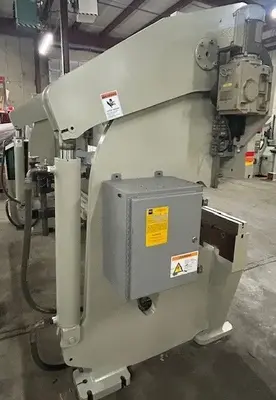

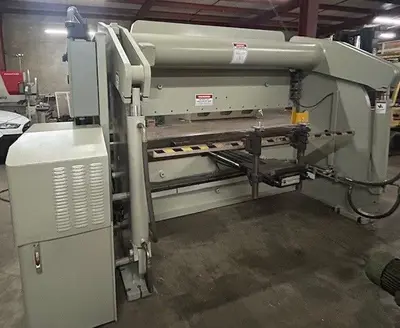

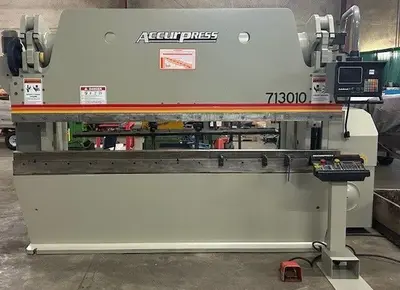

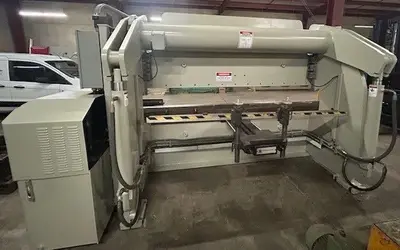

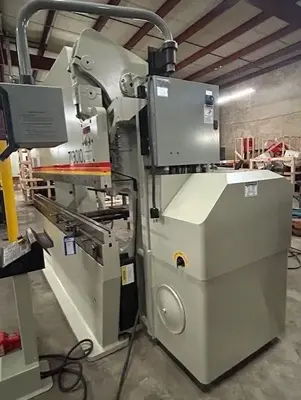

The Accurpress 713010 is a hydraulic press brake designed for heavy-duty metal bending and precision fabrication. Manufactured in 1996, this model delivers a maximum bending capacity of 130 tons and features an overall bed and ram length of 10 feet (120 inches). The physical distance between the side housings measures 8 feet (96 inches) to accommodate substantial material lengths. It is engineered with a standard ram stroke of 8 inches, an open height of 14 inches, a closed height of 6 inches, and a throat depth of 10 inches to allow for complex deep-box forming.

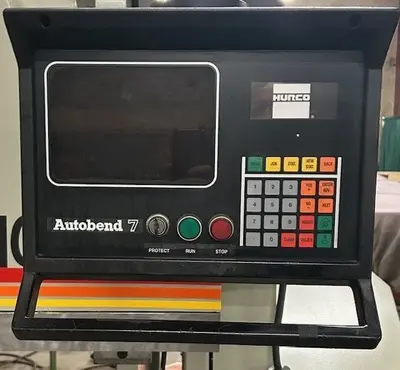

The machine is powered by a 15 to 20 horsepower main motor, typically wired for 220V/440V three-phase electrical systems operating at 60 Hz. Ram operating speeds consist of a fast approach speed of up to 115 inches per minute (IPM), a slow bending speed of 17 to 24 IPM, and a fast return speed of 180 IPM. This configuration features a 2-Axis CNC system equipped with a Hurco AB7/S7 control, governing the Y-Axis ram control and X-Axis backgauge function. Built with a robust rocker arm design and a torque tube mechanical link to maintain parallelism, it includes self-lubricating ram gibs and overload protection. The unit is equipped with a 3-inch by 3-inch by 10-foot lower die holder with tang. The press brake has approximate physical dimensions of 145 inches long by 53 inches wide by 91 inches high and carries a weight of approximately 15,000 to 17,000 pounds.
