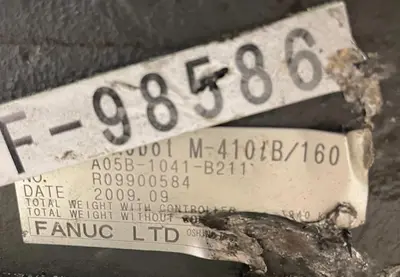

USED 2009 FANUC FANUC M410IB/160

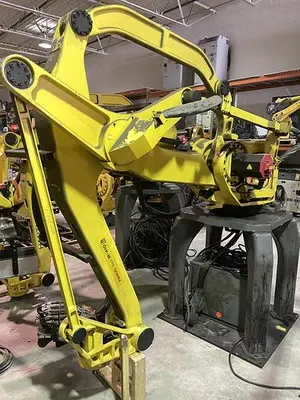

THE 2009 FANUC M410IB/160 IS A FOUR-AXIS ARTICULATED PALLETIZING ROBOT DESIGNED FOR HIGH-SPEED, HIGH-PAYLOAD APPLICATIONS WITH PRECISION PERFORMANCE. THIS MODEL FEATURES A 160KG PAYLOAD CAPACITY, A HORIZONTAL REACH OF 3140MM, AND A REPEATABILITY OF ±0.5MM. THE ROBOT HAS A MASS OF 1940KG AND IS DESIGNED FOR FLOOR MOUNTING. IT IS EQUIPPED WITH A FANUC R30IA CONTROLLER, CONNECTION CABLES, AND A TEACH PENDANT. TECHNICAL SPECIFICATIONS FOR AXIS MOTION SPEED INCLUDE J1 AT 130°/S, J2 AT 130°/S, J3 AT 135°/S, AND J4 AT 300°/S. THE MOTION RANGE FOR THE AXES IS J1 ±360°, J2 ±144°, J3 ±136°, AND J4 ±540°. THIS SYSTEM IS ENGINEERED FOR PALLETIZING TASKS, OFFERING FAST CYCLE TIMES AND A LARGE WORKING ENVELOPE.
