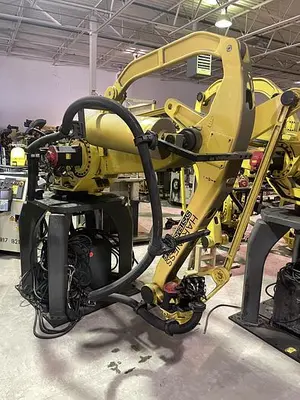

USED 2009 FANUC FANUC M410IB/160

THE 2009 FANUC M-410IB/160 IS A FOUR-AXIS ARTICULATED ROBOT SPECIFICALLY ENGINEERED FOR HIGH-SPEED PALLETIZING AND MATERIAL HANDLING APPLICATIONS. IT FEATURES A MAXIMUM PAYLOAD CAPACITY OF 160 KG, A HORIZONTAL REACH OF 3140 MM, AND A REPEATABILITY OF ±0.5 MM. THE ROBOT HAS A MASS OF 1940 KG AND IS DESIGNED FOR FLOOR MOUNTING. ITS AXIS MOTION SPEEDS ARE 130 DEGREES/S FOR J1 AND J2, 135 DEGREES/S FOR J3, AND 300 DEGREES/S FOR J4. THE MOTION RANGES FOR THE AXES ARE J1 ±360 DEGREES, J2 ±144 DEGREES, J3 ±136 DEGREES, AND J4 ±540 DEGREES. THIS SYSTEM IS EQUIPPED WITH A FANUC R-30IA CONTROLLER, ROBOT CONNECTION CABLES, AND A TEACH PENDANT. THE M-410IB/160 IS CAPABLE OF PERFORMING APPROXIMATELY 20 CYCLES PER MINUTE FOR CASE PALLETIZING AND 27 CYCLES PER MINUTE FOR BAG PALLETIZING. IT FEATURES A HOLLOW WRIST DESIGN FOR INTERNAL CABLE ROUTING TO REDUCE INTERFERENCE AND WEAR, ALONG WITH A SMALL FOOTPRINT TO OPTIMIZE FLOOR SPACE. COMPATIBLE SOFTWARE OPTIONS INCLUDE COLLISION GUARD, PALLET TOOL, PALLET PRO, AND IRVISION FOR 2D OR 3D MACHINE VISION.
