USED 2025 WMW DXWD 1800

Completely Rebuilt & Retrofitted In 2025. New Condition.

This machine was Completely Re-Manufactured, Rebuilt & Retrofitted, Mechanical & Electrical with a New Siemens 840D One CNC System,

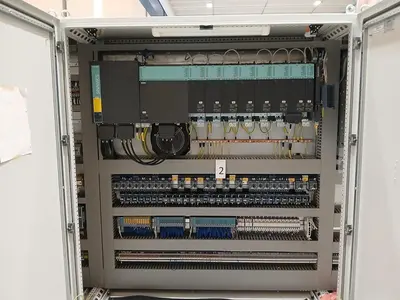

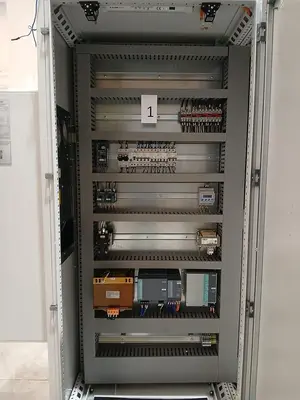

All New Electrics, Motors. In NEW Condition.

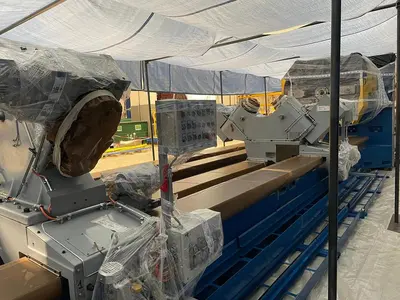

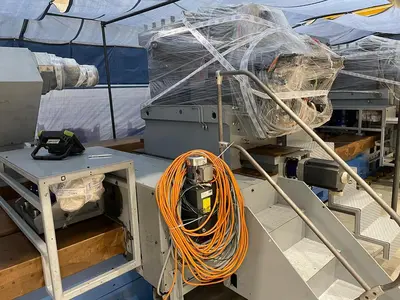

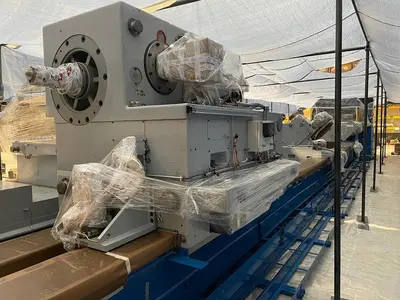

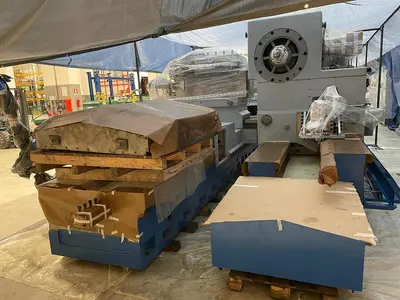

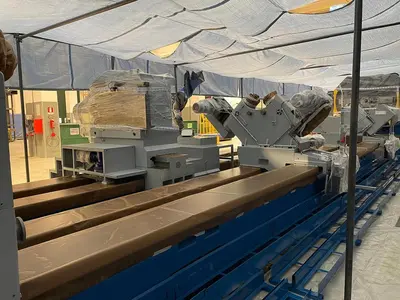

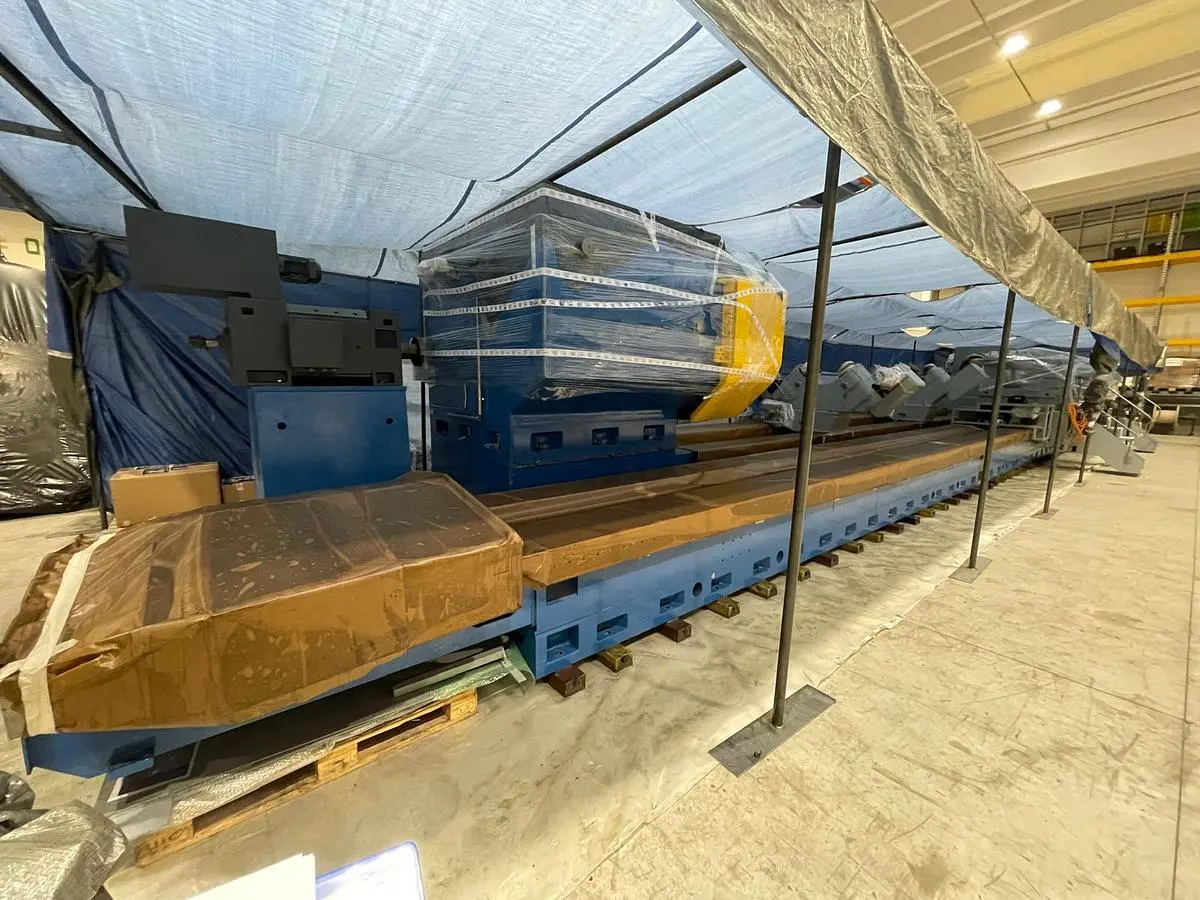

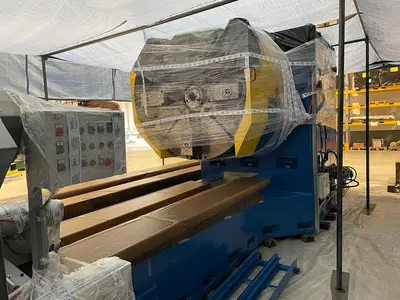

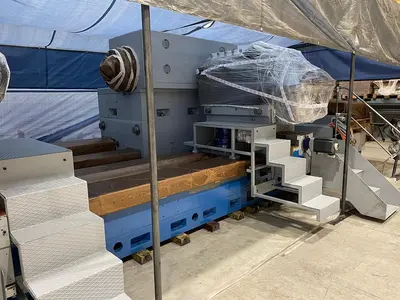

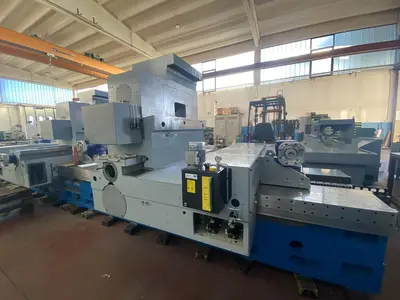

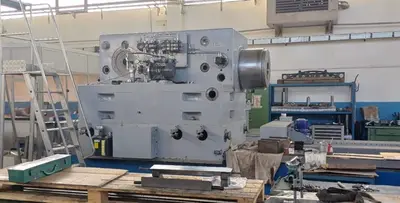

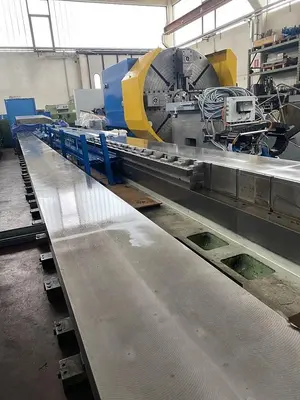

This VEB WZM Meuselwitz (WMW) DXWD 1800 / 2 is a heavy-duty lathe designed for large-scale machining tasks. Manufactured and overhauled in 2025, it features a robust construction with overall dimensions of 25,500 mm in length, 5,150 mm in width, and 3,230 mm in height, and a substantial machine weight of 160,000 kg. The lathe is capable of handling a maximum workpiece weight of up to 80,000 kg, making it suitable for very heavy and large components.

The machine offers a maximum turning diameter of 1,900 mm and a faceplate diameter of 1,900 mm, allowing it to accommodate sizable workpieces. The distance between centers is approximately 12,025 mm, and a spindle center height of 1,300 mm. Its spindle motor delivers 160 kW of power, supporting a spindle torque up to 155 kNm and a rotation speed range from 1 to 150 rpm across three speed ranges.

Maximum loadable weight (capacity between centers) 80 Tons
Machine weight 160 Tons
Nominal turning diameter mm Ø 1,800
Maximum turning diameter mm Ø 1,900
Maximum swing diameter over bed Ø 2,600 mm
Max turning length (distance between centers) 12,025 mm
Spindle axis height 1,300 mm

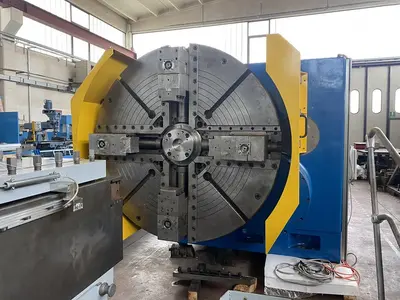

Chuck diameter Ø 1,900 mm
Chuck jaw range Ø 300 ÷ Ø 1,350 mm
Clamping force (with max tightening torque 250 Nm) kN 200
Spindle motor power 160 kW
Total installed power 310 Kw
Maximum spindle torque 155 kNm
Spindle rotation speed range 1 ÷ 150 rpm
Carriage forward speed in transverse direction (“X” axis – “U” axis) 1 - 400 mm/min
Carriage forward speed in the longitudinal direction (“Z” axis – “W” ​​axis) 1-400 mm/min
Rapid carriage forward speed in transversal direction (“X” axis – “U” axis) 3,000 mm/min
Rapid carriage forward speed in the longitudinal direction (“Z” axis – “W” ​​axis) 3,000 mm/min
Minimum distance between centers 1,600 mm
Maximum tool holder overhang 530 mm
Longitudinal travel of carriages (“Z” axis – “W” ​​axis) 14,451 mm
Carriage translation travel (“X” axis – “U” axis) 795 mm
Rapid tailstock translation speed mm/min 3,000
Tailstock quill stroke 300 mm
Tailstock quill advancement speed 20 mm/min
Rapid feed speed of the tailstock quill 100 mm/min
Maximum thrust of the tailstock quill 600 kN
Tailstock quill diameter Ø 630 mm

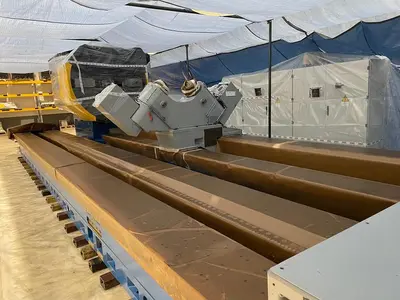

Maximum diameter large Steady Rest (open type) - Dis 175-42-6120:00-00, 550÷900 mm
Maximum load admitted 40 tons
Feed speed large Steady 194 mm/min
Maximum diameter of small steady rest (open type) - Dis 175-42-6110:00-00, 200÷600 mm
Maximum load allowed 20 tons
Feed speed Small steady 194 mm/min.
Main cutting force of the carriage 180 kN
Back pressure force 1,144 kN
Feed force 108 kN
(material being processed Ks = 1,800 N/mm2) 2 100 mm
Chip removal for each carriage 1,118 kg/h
