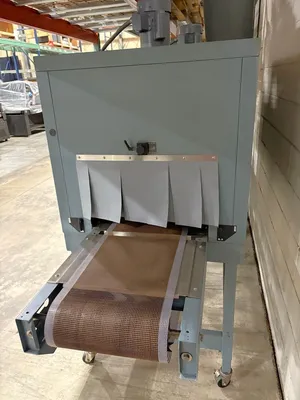

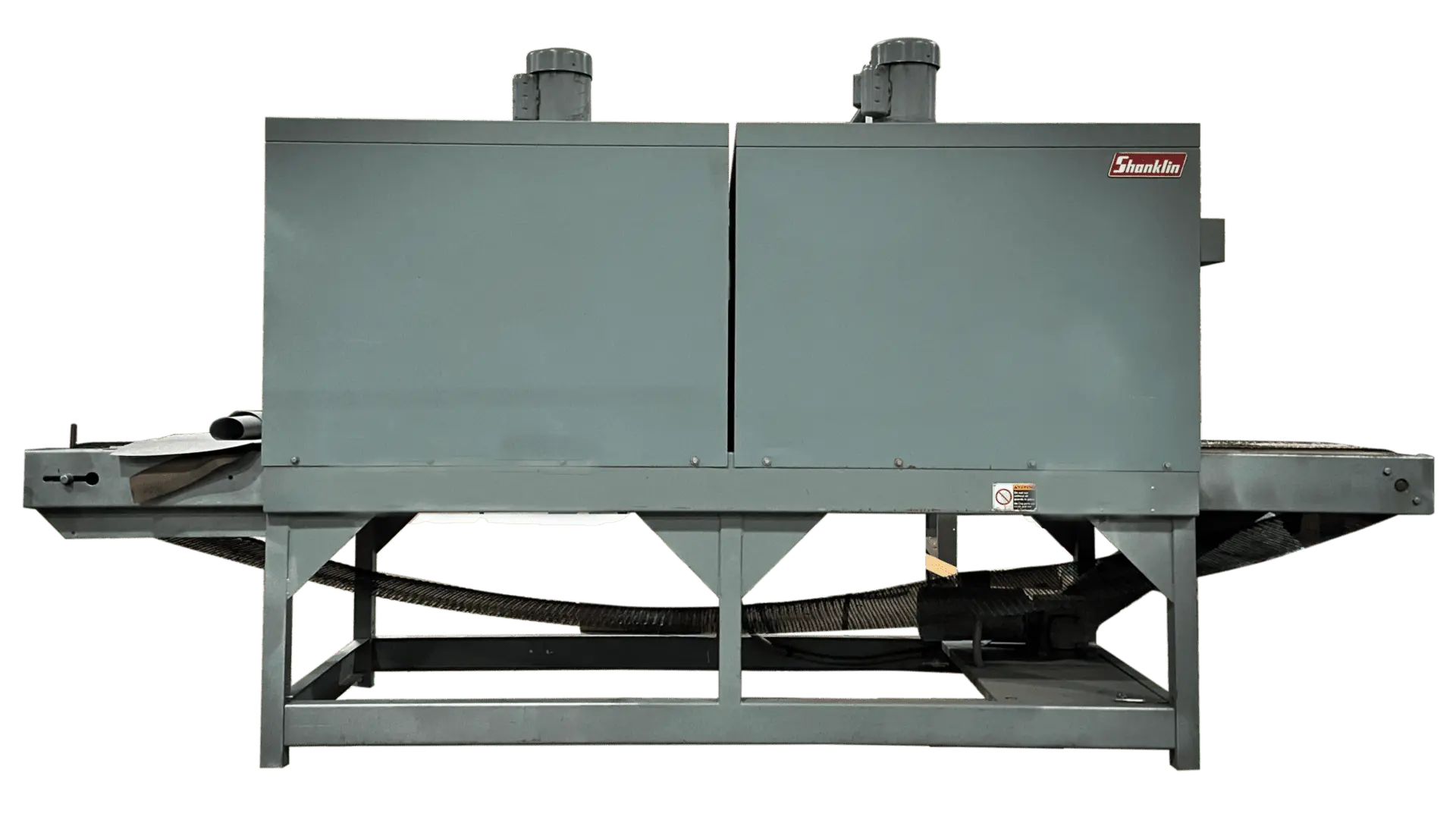

USED SHANKLIN T-72H

The Shanklin T-72H is a high efficiency dual chamber heat shrink tunnel designed to withstand even the harshest industrial environments. Both high speed heat chambers have individualy controlled flow, air velocity, and temperature to delivery the perfect shrink on packages large and small.

Overall Machine Dimmensions
Length 132” (3353 mm)
Width 43” (1092 mm)
Height 69.5” (1765 mm)

Tunnel Passage Dimensions
Length 84” (2134 mm)
Width 22” (559 mm)
Height 12” (305 mm)

Conveyor Dimensions
Length 132” (3353 mm)
Height 29” - 42” (737 mm - 1067 mm)

Conveyor Speeds
Variable from 25 to 150 ft/min (7.6 - 45.7 m/min)

Electrical Requirements
230 Volts, 3 Phase, 64 Amps, 14.8 KVA max

Blower Motors
Two motors, 3/4 hp each motor

Heaters
Multiple finstrip (encased element)

Temperature Controller
Precision indicating controller calibrated 50° to 500° F

Controls
• Main power circuit breaker
• Tunnel on/off switch
• Conveyor start/stop switch
• Main and top air velocity controls
• Tunnel on/off switch

Safety Features
• Motor overload protection
• High temperature limit switches
• Main power circuit breaker
• Emergency stop switches

Available options
• Side air cascade plates with adjustable dampers
• Volume control for bottom air
• End viewing windows
• Teflon conveyor belt
• Live or dead roller conveyor
• Composite link conveyor belt
• Special package guides
• “Poly kit” for use with LDPA
