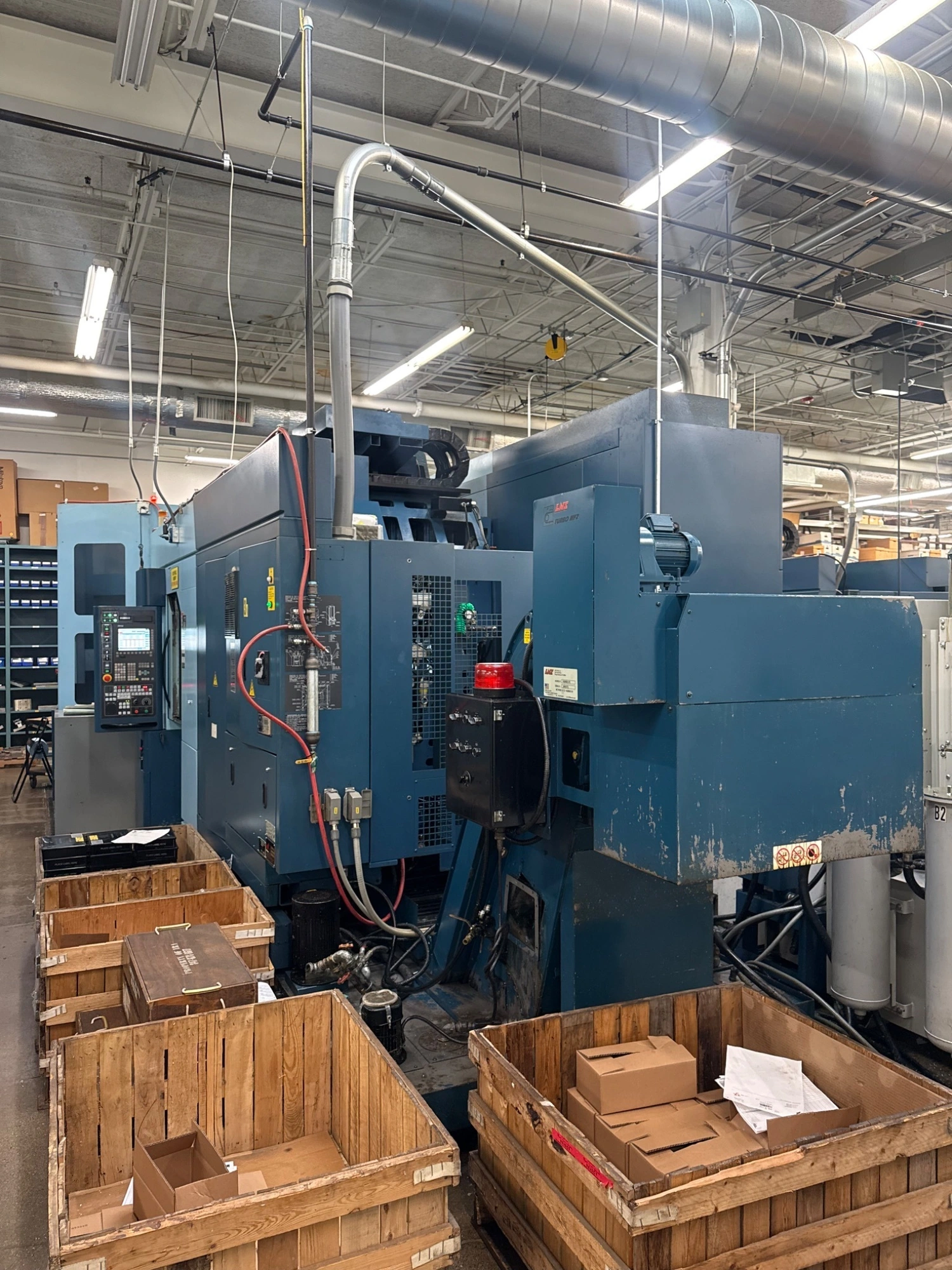

USED 2011 MATSUURA CUBLEX-63
Overview
MATSUURA CUBLEX-63 multitasking center available. Model year 2011, features X/Y/Z travel of 760/845/660 mm, 12,000 RPM, HSK-A63W taper, 5 axes, and 300-tool capacity. High-pressure coolant and 18-APC included.
Specs
Travel: X / Y / Z mm 760 / 845 / 660
Travel: A / C deg -120 + 30 / 360
Working Surface mm Ø500
Max Work Size mm Ø630×H450
Loading Capacity Per Pallet kg 350
Spindle Speed min-1
12,000: HSK-A63W (ICTM) Standard
Rapid Traverse: X / Y / Z m / min 60
Rapid Traverse: A min-1 25
Rapid Traverse: C (Milling and Turning) min-1 200 / 1300
Number of Tools 51 Standard - up to 320 optional
Maximum Tool Length mm 350
Maximum Tool Weight kg 10
Tool Changing Time Secs 1.1
Equipped With
HSK63
18-APC
300-tool ATC
High-Pressure coolant
*Needs spindle repair
