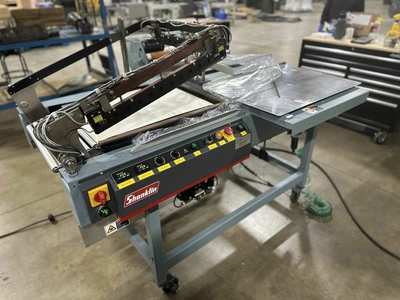

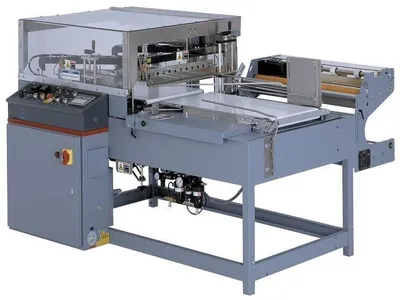

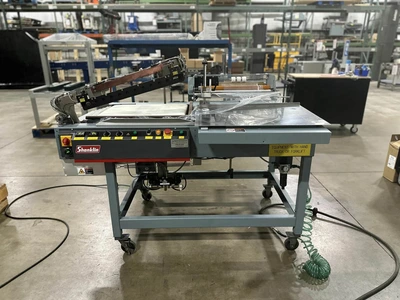

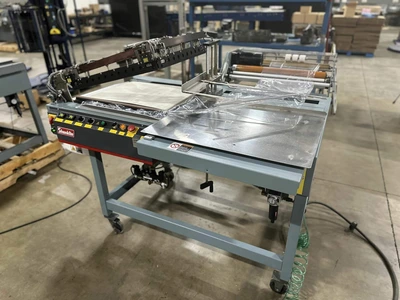

The Shanklin A-27A automatic L-Sealer for shrink wrapping offers gentle product feed and straight line product flow that makes it ideal for handling a wide variety of products. The Shanklin A-27A features adjustable height seal jaws and can automatically wrap a wide range of products, including high profile or short length items, at speeds up to 35 packages per minute. Plus the L-seal design provides great flexibility and quick product change. This Shanklin L-bar sealer will accept randomly spaced product, fed either automatically or by hand.
Overall Machine Dimensions
Length 84” (2133 mm)
Width 56” (1422 mm)
Height 54” (1372 mm)
Seal Size
Length 21” (533 mm)
Width 33” (838 mm)
Product Dimensions
Width 4” - 31” (102 mm - 787 mm)
Height Up to 71⁄2” (190 mm)
Max. Film Width
30” (762 mm) Folded,
42” (1067 mm) Flat (with compact centerfolder)
Conveyor Height
311⁄2” - 371⁄2” (Adjustable) (800 mm - 953 mm)
Packaging Speed
Up to 35 Packages Per Minute (Varies by product/application)
Longitudinal and Transverse Seal
Hot Knife Jaws
Electrical Requirements
230 V, 15 Amps, 60 Hz, 1 Phase
Pneumatic Requirements
.05 CFM free air at 60 PSI (1.52 L/min at 413685 kPa)
Safety Devices
• Emergency stop button instantly stops all machine functions until manually reset.
• A transparent hood, interlocked electrically with the automatic sequencing circuit, covers the sealing area; gas cylinders support the hood when it is lifted to allow access
• Film clamp proximity sensors ensure safe sealing arm jaw closure
• Multiple safety interlocks

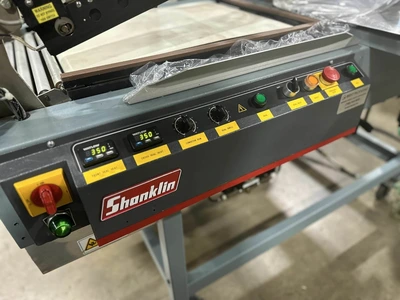

• Tamper-resistant controls
• Low voltage sensors and actuators
