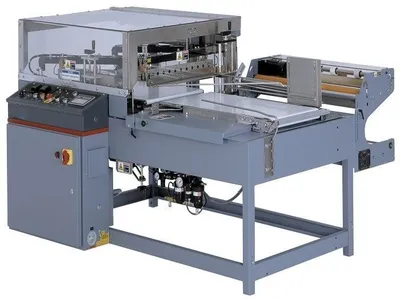

The Shanklin A-26A automatic L-Sealer for shrink wrapping offers gentle product feed and straight line product flow that makes it ideal for handling a wide variety of products. The Shanklin A-26A features adjustable height seal jaws and can automatically wrap a wide range of products, including high profile or short length items, at speeds up to 35 packages per minute. Plus the L-seal design provides great flexibility and quick product change. This Shanklin L-bar sealer will accept randomly spaced product, fed either automatically or by hand.
Overall Machine Dimensions
Length 65” (1651 mm)
Width 50” (1270 mm)
Height 54” (1372 mm)
Seal Size
Length 21” (533 mm)
Width 15” (381 mm)
Product Dimensions
Width 4” - 20” (102 mm - 508 mm)
Height Up to 51⁄2” (140 mm)
Max. Film Width
24” (610 mm) Folded,
44” (1118 mm) Flat (with compact centerfolder)
Conveyor Height
311⁄2” - 371⁄2” (Adjustable) (800 mm - 953 mm)
Packaging Speed
Up to 35 Packages Per Minute (Varies by product/application)
Longitudinal and Transverse Seal
Hot Knife Jaws
Electrical Requirements
230 V, 15 Amps, 60 Hz, 1 Phase
Pneumatic Requirements
.05 CFM free air at 60 PSI (1.52 L/min at 413685 kPa)
Safety Devices
• Emergency stop button instantly stops all machine functions
until manually reset.
• A transparent hood, interlocked electrically with the automatic
sequencing circuit, covers the sealing area; gas cylinders
support the hood when it is lifted to allow access
• Film clamp proximity sensors ensure safe sealing arm jaw
closure
• Multiple safety interlocks
• Tamper-resistant controls
• Low voltage sensors and actuators
