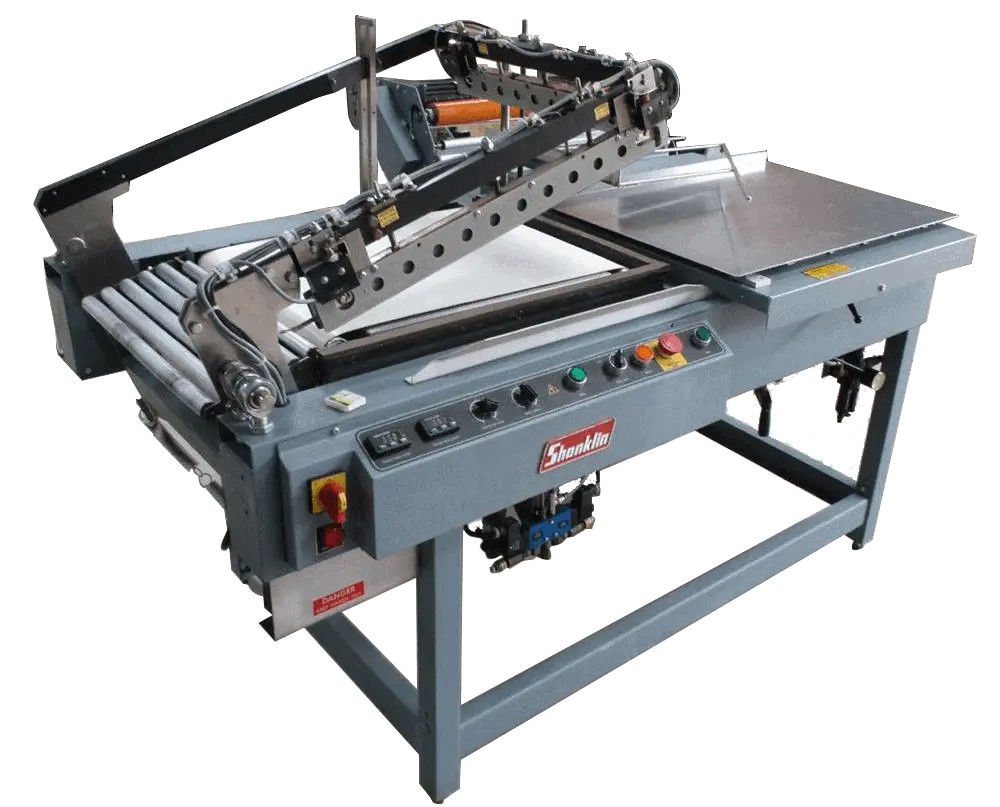

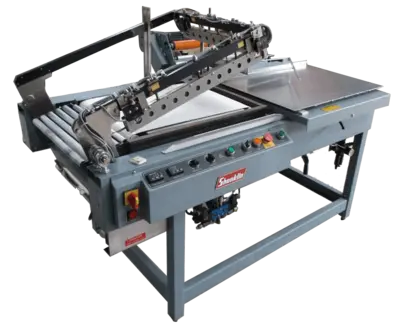

USED SHANKLIN S-26

The Shanklin model S-26 L-bar sealer is compact, realiable, and easy to change over. The EZ Load Film Unwind permits film to be loaded onto support rollers without the need to insert a chuck into the core of the film. The film is drawn off the supply roll by a pair of powered drive rollers and then it flows on to the product loading area of the machine. The film then passes over and through a film inverting head, which redirects the film and produces an opening into which products are inserted. A loading tray in the inverting head makes it easy to insert the products and the film inverting head is easily
adjustable for different heights and widths of product.

Seal jaws, which are pivoted at the discharge end of the machine, provide maximum opening height to enable heigher profile products to be wrapped. Sealing is accomplished by means of hot knife seal jaws for improved seal jaw reliability. A conveyor in the product sealing area discharges product automatically.

Special Features
• “EZ Load” power film unwind
• Power film opener
• Pin perforator
• Adjustable inverting head with adjustable cut back
• Belt conveyor discharge
• Hot knife seal jaws
• Modern seal arm suspension accepts higher profile packages
• Automatic sealing cycle and package discharge

Seal Size
Max Length: 24″ (610 mm)
Max Width: 16″ (406 mm)
Max Height: 8″ (12.7 mm)

Overall Machine Dimensions (L x W x H)
Length: 62″ (1575 mm)
Width: 50″ (1270 mm)
Height: 31″ – 43″ (787 – 1092 mm)

Speed
20-25 Packages/Minute

Electrical Requirements
115 V, 15 Amps, 1 Phase (U.L. Listed control panel)

Compressed Air
1.5 C.F.M at 60 P.S.I.

Mechanical Adjustments
Discharge Conveyor Height
Packaging Table Depth
Inverting Head Height
Film Roll Guides

Electrical Controls
Dewll Timer
Conveyor Run Time
Anti-Tie Down Seal Buttons
Unwind Reverse Switch
Hot Knife Temperature Controllers

Pneumatic Controls
Air Filter
Air Regulator
Guage
Flow Control Valves on Sealing Arm

Safety Features
Jaw Safety Switches on Seal Arm
Jaw Shield

Accessories
Teflon Coated Inverting Head
Film Centerfolder
Casters
Hole Punch
