USED OK INTERNATIONAL 200
Overview
Description

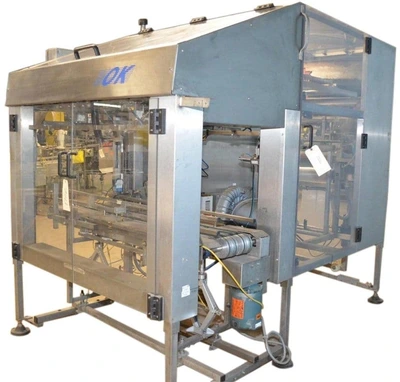

The Model 200 by OK International pulls from a roll of gusseted film tubing to cut, insert, and cuff bags in a manner of seconds. Four corner fingers open the inserted cut-off film and cuff it over the edges of the case. Depending on the materials, application, and machine configuration, the Model 200 operates at speeds up to 15 cases per minute.

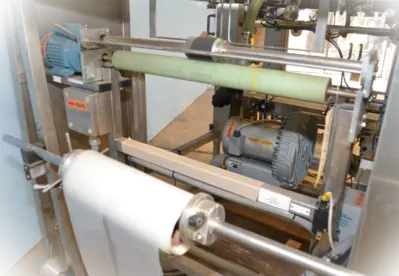

Bags are cut from a roll of gusseted polyethylene layflat tubing. A 26” long heated cut-
off bar forms bags of variable lengths.

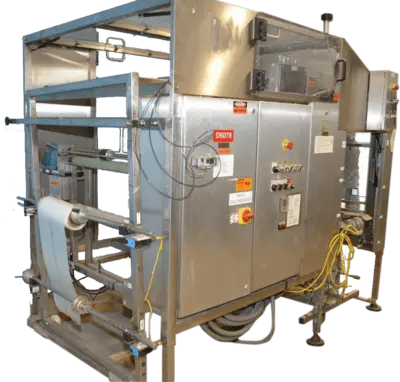

The control panel features A/B controller, bag-only start/stop and e-stop push button. It also features variable length controls for bag and cuff length, as well as cut-off bar temperature controller.
Advantages:
• Faster than manual process
• Reduces bag cost by forming bags from a roll
• More consistent results (compared to manual bag lining)
Specifications
Case Dimensions (L x W x H):
Minimum Case Size: 10″ x 8″ x 6″ (254 x 203 x 152 mm)
Maximum Case Size: 23″ x 16″ 18″ (584 x 406 x 457 mm)
Speed:
Up to 15 Packages Per Minute
Bag Gauges:
0.6-5.0 mm gusseted polyethylene layflat tubing
Overall machine dimensions (L x W x H):
93″ x 75″ x 64″ (2362 x 1905 x 1626 mm)
Electrical Requirements
480 V, 3 Ph, 60 Hz
Construction
Stainless steel frame and exterior, plated and painted interior.
