USED OK INTERNATIONAL SUPERFORMER 1M

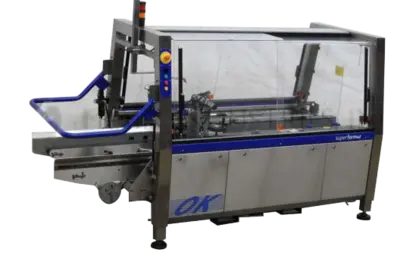

The OK International, Model Superformer 1M is an automatic case erector and bottom taper. This machine is capable of running between 3 to 16 cases per minute – depending on materials and application. It is designed for RSC boxes. Control panel has PLC controller with start, stop and e-stop push button controls, interlock safety guarding and status light bar. Mounted on height adjustable base frame.

BENEFITS
Automatic dual belt
Blank case magazine
Reciprocating vacuum pick-n-place squaring system
Front and back flap closures
Hand crank adjustable for size changeover

FEATURES
• Quick and easy size change
• Automatic case squaring system
• Tape and case squaring system
• Tape and case monitoring system
• Single frame inline design
• Stainless steel exterior finish

Maximum Case Size
Length 18” (457 mm)
Width 14” (356 mm)
Height 16” (406 mm)

Minimum Case Size
Length 8” (203 mm)
Width 6” (152 mm)
Height 3” (76 mm)

Speed
Up To 16 CPM

Machine Dimensions
Length 116” (2946 mm)
Width 53” (1346 mm)
Height 76” (152 mm)

Electrical Requirements
3Ph, 60Hz, 480V

Tape System
2” bottom tape head with 14” maximum roll diameter

Construction
Stainless steel frame and exterior, plated and painted interior.
