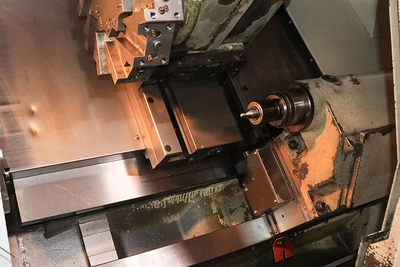

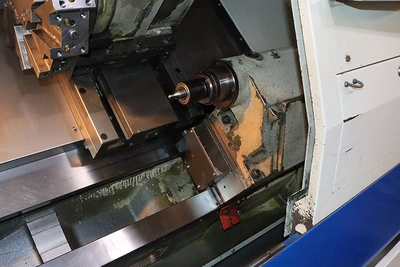

USED 2001 Daewoo Puma 300B

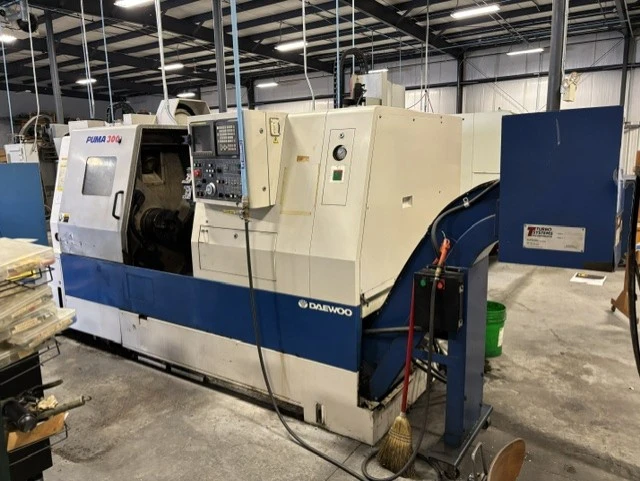

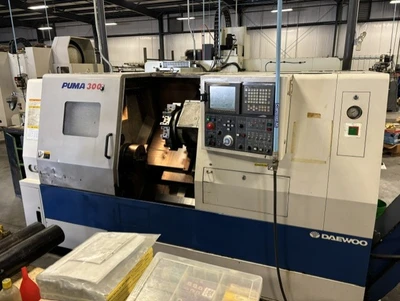

DAEWOO PUMA 300B CNC TURNING CENTER

NEW: 2001

video link: https://youtu.be/OGi-PKILEpk?si=sNLS22KiDPBOaSwW

SPECIFICATIONS:

SWING OVER BED ................ 23.0"

SWING OVER SADDLE ............. 14.5"

MAX. TURNING DIAMETER ......... 15.7"

MAX. TURNING LENGTH ........... 25.5"

MAX. BAR WORKING DIAMETER ..... 3.0"

X-AXIS TRAVEL ................. 11.1"

Z-AXIS TRAVEL ................. 26.8"

SPINDLE SPEED MAX. ............ 3500 RPM

SPINDLE NOSE .................. A2-8

SPINDLE BORE .................. 3.54"

NO. OF TOOL STATIONS .......... 12

OD TOOL SIZE .................. 1.0"

BORING BAR DIAMETER ........... 2.0"

RAPID TRAVERSE X/Z ............ 800/945 IPM

TAILSTOCK QUILL DIAMETER ...... 3.94"

TAILSTOCK QUILL TRAVEL ........ 3.94"

MAIN SPINDLE MOTOR ............ 30/35 HP

APPROX. WEIGHT ................ 12,900 LBS

EQUIPPED WITH:

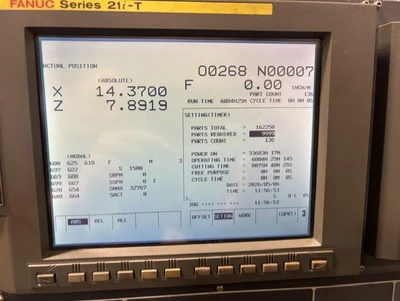

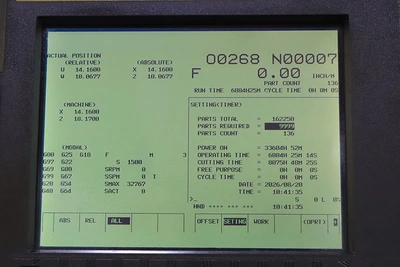

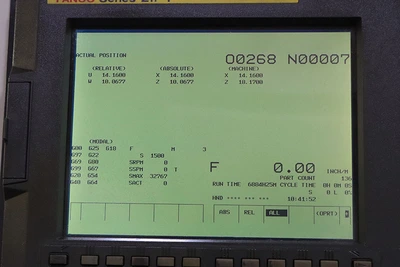

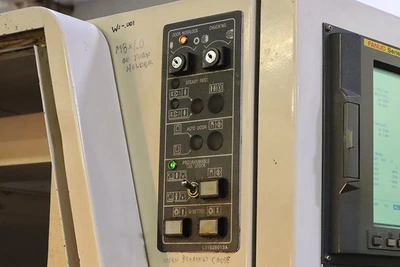

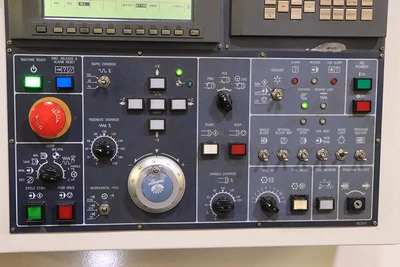

 - FANUC 21i-T CNC CONTROL

 - TOOLSETTER

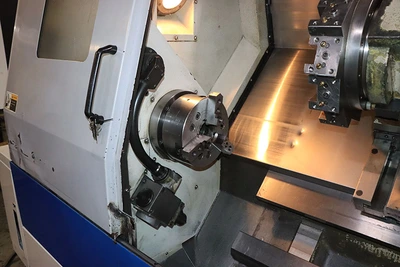

 - 10" 3-JAW HYDRAULIC CHUCK

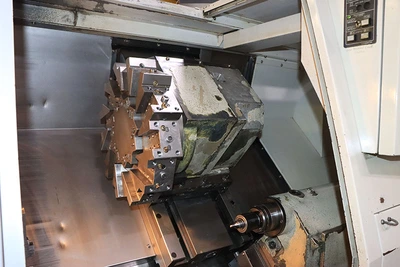

 - 12 POSITION TURRET

 - TAILSTOCK

 - CHIP CONVEYOR

 - ALL AVAILABLE TOOLHOLDERS AND MANUALS

FOR MORE INFORMATION: Call Mike at 973-497-7540
