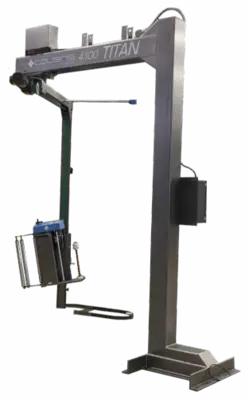

The 4100-35 FA is a fully automatic free-standing rear mount pallet wrapper manufactured by Cousins. Its durable design and user-friendly controls set this stretch wrapper apart from the competition. The 1-12 RPM rotary arm features a soft start acceleration and final revolution deceleration and positive stop alignment. The unique film threading device orients the sticky side of the film against the pre-stretch rollers and the inside of the load. The variable pre-stretch ratio is adjusted using a sprocket change. Wrapping is fast and efficient using the single button auto wrap cycle start/pause.
Standard Features:
• Power off-on-reset swich & power on indicator light
• Single button auto wrap cycle start/pause All structural steel construction
• Reinforce wrap control for mid-wrapping Rotary arm jog switch
• Emergency stop button
• Cycle pause for applying top sheets
• Film carriage lower & raise buttons
• Film clamp open/close button
• Film tension (force-to-load) control
• Separate film carriage raise & lower speed controls
• Variable rotary arm speed control
• Triple beam type auto load height sensing photo eye, detects dark or shiny loads
• Selectable reduced bottom film force parameter for wrapping bottom of load
• Structural steel tube machine tower with sheet metal covers
• A-B-C wrap program selector with capability to input and store unique wrapping parameters for each program
• Electro-static powder coated paint finish
• Stack-light beacon indicates run, clear or fault conditions
• Rotary arm and carriage elevator dynamic braking system
• NEMA 12 control panel enclosure
• Rotary arm obstruction emergency safety stop sensor
• Dust tight slip ring assembly
• Non-proprietary UL/CSA approved components
Maximum Load Size
Length 50” (1270 mm)
Width 50” (1270 mm)
Height 86” (2184 mm)
Minimum Load Size
Length 40” (1016 mm)
Width 40” (1016 mm)
Height 24” (610 mm)
Maximum Load Weight
Unlimited (floor supported)
Production Speed
1-30 loads per hour*
Rotary Arm
Double flange bearing support system
Twin V-belt drive pulleys with belt tensioner
1-12 RPM rotational speed c/w soft start acceleration
Final revolution deceleration and positive stop alignment
1⁄2 HP DC variable speed motor
Film Carriage Elevator
1⁄2 HP AC variable speed motor
Direct flat belt drive system
Film Delivery System
Super Rapid Thread IITM 20” capacity pre-stretch film carriage
1⁄2 HP AC variable speed motor
Fully electronic dynamic dancer corner compensation
33% - 313% fixed stretch capacity
Pneumatic Requirements
3 CFM @ 80 PSI clean dry pneumatic supply required filter/regulator c/w guage & lock-out valve provided
Electrical Requirements
115 Volts, 1 Phase, 60 Hz, 15 Amps
