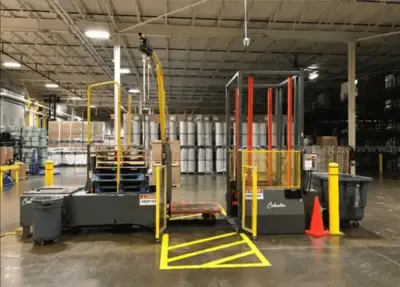

USED COLUMBIA LTS-PD

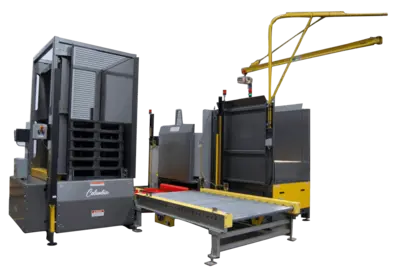

Load Transfer Stations are capable of transferring products that are packaged in cases, barrels, drums, bags and pails from one pallet to another including Plastic, Chep and GMA pallets in both receiving and shipping applications. The Load Transfer Station with Pallet Dispenser (LTS-PD) is made up of a standard LTS, pallet cart and side load pallet dispenser. The forklift driver loads a stack of pallets into the pallet dispenser. The pallet dispenser automatically places the “go to” pallet onto the pallet cart. Then the forklift driver places the load to be transferred onto the receiving deck and activates the unit by pulling the cord, allowing the cycle to complete in less than 60 seconds.

FEATURES:
• Automatically dispenses “go to” pallet
• Overhead pivot pole cord switch
• 4,000 lb. load capacity
• Machine mounted guarding
• 3 Emergency stops
• 5 HP integral hydraulic power unit
• UL / CSA rated control panel
• 24 VDC controls
• 460 VAC power supply
• Heavy-duty construction Allen Bradley PLC controls
• Hydraulically actuated Automatic pallet upstack holds up to 20 pallets
• Low maintenance
• Eliminate injury to warehouse personnel
• Easy-to-operate (ETO)
• Less wear and tear of lift trucks
• Improve plant process cleanliness
• Reduce shipping costs
• Streamline plant and warehouse operations
