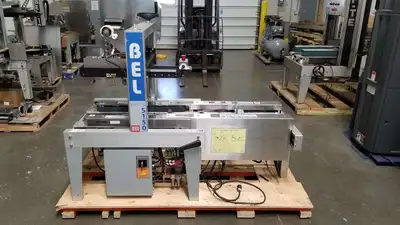

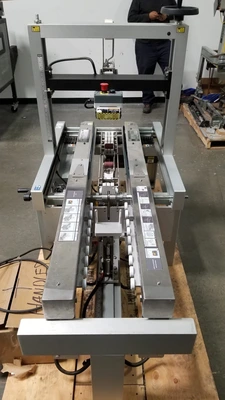

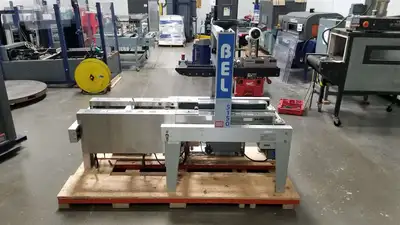

USED WEXXAR BEL 5150

Refurbished BEL 5150 Semi-Automatic Case Erectorw/ Top & Bottom Case Taper by Wexxar Bel®

Minimum Case Size
Length 8” (203 mm)
Width 5” (152 mm)
Height 5” (127 mm)

Maximum Case Size
Length 26” (660 mm)
Width 18” (457 mm)
Height 21” (533 mm)

Minimum infeed/outfeed height*
25” (635 mm)

Maximum infeed/outfeed height*
32” (813 mm)

Machine Dimensions
Length 73” (1,854.2 mm)
Width 33” (838.2 mm)
Height 60” (1524 mm)

Machine Weight
600 lbs (272.2 kg)

Air
0.13 ft3 per cycle at 90 PSI

Electrical
120v, 1PH, 60 Hz - 8 amp draw

Speeds
Up to 15 cases per minute

Note: Casters add 4” to minimum and maximum height
