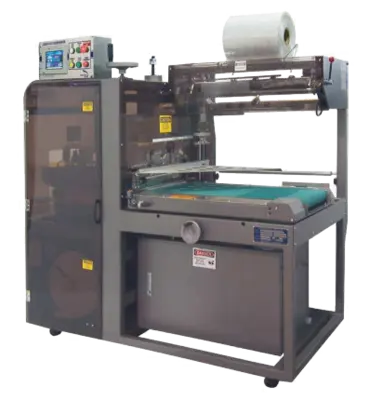

USED ARPAC Hanagata L18

The Hanagata L18 from Arpac is an intermittent motion automatic L-Bar sealer featuring a proprietary design for reliable operation and ease of use. The L-Series from Arpac is engineered to provide you with high quality packaging for retail display. Achieve packaging speeds up to 40 ppm for most products.

Standard Features:
• Guillotine style seal head for simple film loading
• Independent scrap film rewind system with motor and closed loop operation
• Digital controls for conveyor speeds, timing, and temperature settings for fast accurate setup when changing product size and film
• Unique film trim takeaway
• Strong polycarbonate safety door for product visibility and safety
• Stroke limiting adjustable seal height
• Industry standard Allen Bradley electrical components
• Standard needle perfs allow positive air evacuation during shrink process for the most uniform retail page
• ARPAC’s operator interface features a color touch screen with message display and self diagnostics
• NEMA 12 electrical cabinet and controls
• Hand crank adjustments to marked scale positions offer maximum flexibility with fast product changeover

Length Width Height
Overall Machine Dimensions
Length 65” (1651 mm)
Width 36” (914 mm)
Height 63” (1600 mm)

Machine Shipping Weight
1170 LBS (530.7 kg)

Minimum Product Size
Length 4” (102 mm)
Width 1 1⁄2” (38 mm)
Height 1⁄4” (6 mm)

Maximum Product Size*
18 1⁄2” (470 mm) 15” (381 mm) 6” (152 mm)

Maximum Package Weight
25 lbs. (.45 kg)

Packaging Speed
40 PPM based on 4” x 7” x 1” (102 x 178 x 25 mm) product

Variable Conveyor Speed
45 - 90 FPM (.23 - .46 meters per second)

Seal Dimensions
19 1⁄2” x 17 3⁄4” (495 mm - 451 mm)

Film Size
24” (610 mm) centerfold maximum, 111⁄2” (292 mm) diameter, “B” wind

Film Types
Polyolefin, PVC, or Polyethylene

Power Requirements
230V (AC), 1Ph, 60Hz, 15A

Pneumatic Requirements
80 psi, 1 SCFM
