New | Build-to-Order

NEW DTI Model 90

New York, United States
536Listings|0Followers
Overview
Wire In-Line Drawers

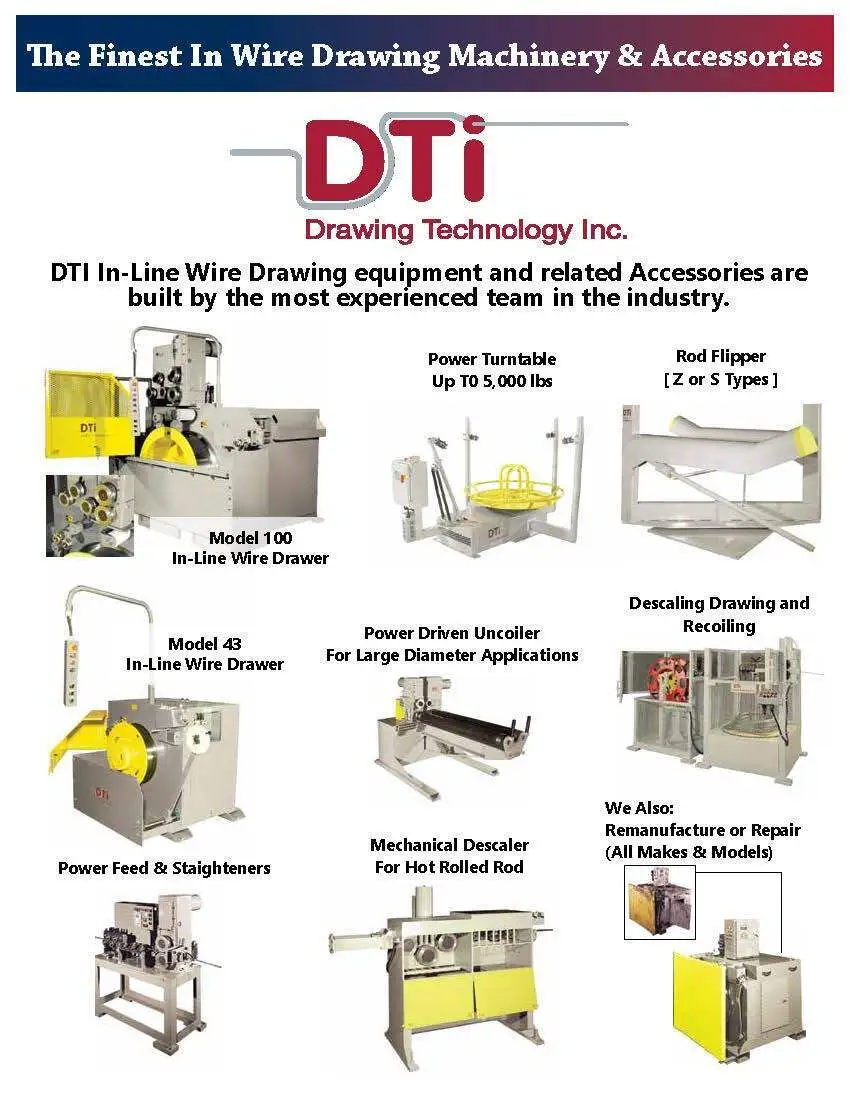

In-line wire drawers and payoff equipment for wire processing. Wire resizing for the fastener and heading industries. Rod breakdown machinery for processing of cold drawn steel from hot rolled rod. Mini wire mill recoiling and wire spooling for the heading and concrete pipe wire cage producing industries. Payoff equipment including Power driven uncoilers, Flippers, Power driven turntables, etc. Mechanical breaker roll type descalers for hot rolled rod up to .750 diameter. Tooling and spare parts for all in line wire drawing, wire straighten and cut, and payoff machines.

Specs

Capstan Diameter: 44 in [1118 mm]
Max. Rated Draw Force: 20,000 lbs [9060 kg]
Alloy Max. Diameter: .750 in [19.0 mm]
Mild Steel Max. Diameter: .900 in [22.9 mm]
Available Horse Power Range: 30–100 hp [22.5–75 kW]
Feed Head: STANDARD
