NEW PMC PS‑2VS

- Type of Machine: Mechanical
- Bar Diameter Capacity (w/out heat treatment): 5–19 mm
- Bar Diameter Capacity (with heat treatment): 5–16 mm

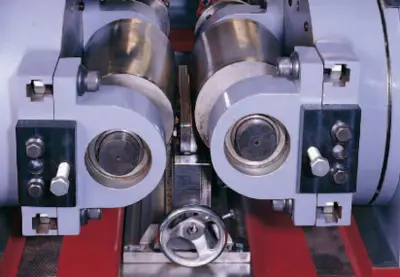

- Rolls (each concave & convex roll): 115 mm
- Die Face Width: 150 mm
- Rolls (Multi-Piece Special-Made Rollers): 300 x 35W
- Inclination of Rolls (adjustable angle): 0°–70°
- Spindle Speed (rpm, variable speed): up to 300
- Straightening Speed (m/min): 12–20
- Die-Spindle Drive Motor: 3 HP
- Frequency Inverter (Variable Speed): 5 HP
- Hydraulic Motor: N/A
- Machine Net Weight (approx.): 750 kg

* All models available with Automation Linkage (magazine loader + auto feed + unloader).
* Design and technical data are subject to continuously improve and modify without notice.
