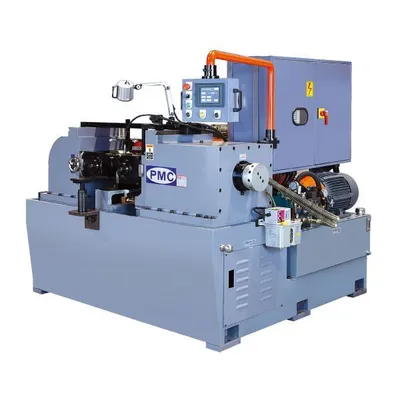

NEW PMC PM-160VS

- Outside Diameter (threaded): 12–160 mm
- Thread Pitch Range: 3–16 mm pitch
- Max. In-Feed Thread Length: 310 mm
- Max. Thru-Feed Thread Length: Free for extension
- Rolling Dies Max. Outside Diameter: 300 mm
- Rolling Dies Bore Diameter: 100 mm (standard) or 85 mm (option)
- Rolling Dies Max. Width: 310 mm
- Variable Spindle Speeds: 0–75 RPM
- Die-Spindle Diameter (2 pcs roller spindle): 100 mm (standard) or 85 mm (option)
- Max. Inclination of All-2-Spindles: From 0° up to 10° (for thru-feed)
- Distance Between Die-Spindle Centers: 260–450 mm
- Height from Table Surface to Spindle Center: 360 mm
- Max. Rolling Pressure: 100 ton
- Die-Spindle Main Drive Motor: 50 HP
- Variable Speed Drive: 60 HP inverter
- Hydraulic Motor: 20 HP (S) to 25 HP (O)
- Coolant System: 1 HP
- Machine Net Weight (approx.): 9500 kg
- Machine Gross Weight (approx.): 9900 kg
- Machine Dimensions (L×W×H): 300 × 230 × 230 cm
- Shipping Dimensions (L×W×H): 330 × 230 × 230 cm

* All models available with Automation Linkage (magazine loader + auto feed + unloader).
* Design and technical data are subject to continuously improve and modify without notice.
