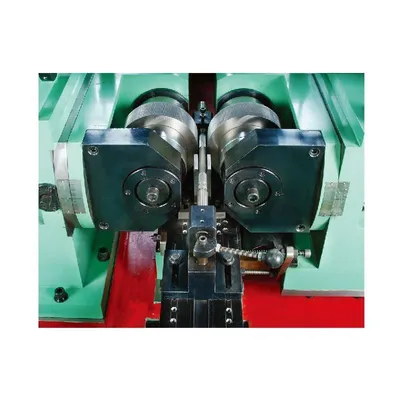

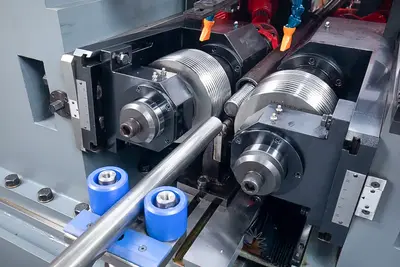

NEW PMC PM-75VS-L

- Outside Diameter (threaded): 5–80 mm
- Thread Pitch Range: 1–10 P / 24–2.5 TPI
- Max. In-Feed Thread Length: 230 mm

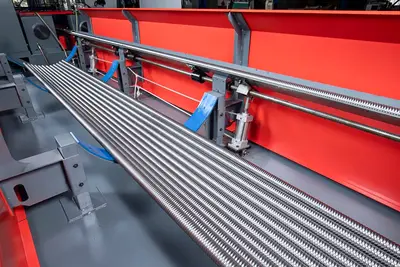

- Max. Thru-Feed Thread Length: Free for extension
- Rolling Dies Max. Outside Diameter: 220 mm
- Rolling Dies Bore Diameter: 85 mm (standard) or 80 mm (option)
- Rolling Dies Max. Width: 230 mm
- Variable Spindle Speeds: 0–90 RPM
- Die-Spindle Diameter (2 pcs roller spindle): 85 mm (standard) or 80 mm (option)
- Max. Inclination of All-2-Spindles: From 0° up to 10° (for thru-feed)
- Distance Between Die-Spindle Centers: 220–340 mm
- Height from Table Surface to Spindle Center: 300 mm
- Max. Rolling Pressure: 60 ton
- Die-Spindle Main Drive Motor: 25 HP
- Variable Speed Drive: 30 HP inverter
- Hydraulic Motor: 15 HP
- Coolant System: 1/2 HP
- Machine Net Weight (approx.): 5750 kg
- Machine Gross Weight (approx.): 6050 kg
- Machine Dimensions (L×W×H): 230 × 206 × 206 cm
- Shipping Dimensions (L×W×H): 252 × 226 × 228 cm

* All models available with Automation Linkage (magazine loader + auto feed + unloader).
* Design and technical data are subject to continuously improve and modify without notice.
