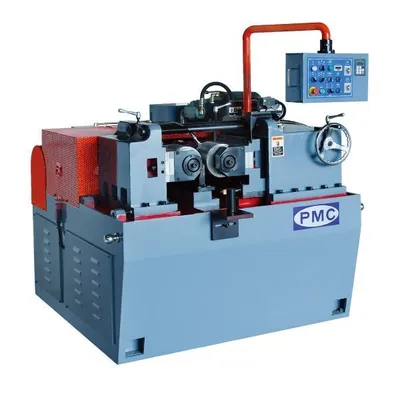

NEW PMC PM-60

- Maximum Rolling Pressure: 40 TON
- Outside Diameter (threaded): 4–60 mm
- Bar Type: Solid bar
- Thread Pitch Range: 1–6 P / 24–4 TPI
- Other Thread Types Suited: Trapezoid (Tr); DIN 405 Knuckle; Spline; Ball Screw; Tie Rod; Diamond Knurling
- Max. Plunge-Feed Thread Length: Thread length = max die width
- Max. Thru-Feed Thread Length: INFINITE (free extension thread length)
- Die-Spindle Diameter (2-piece roller spindle): 70 mm
- Max. Rolling Dies Outside Diameter: 190 mm
- Rolling Dies Bore Diameter: 54 mm (2 1/8")
- Max. Rolling Dies Width: 150 mm
- Spindle Speed Range: 4-step, 20–60 RPM
- Max. Inclination of All-2-Spindles: From 0° up to 10° (for thru-feed)
- Distance Between Die-Spindle Centers: 145–225 mm
- Height from Table Surface to Spindle Center: 235 mm
- Die-Spindle Main Drive: 15 HP
- Hydraulic Motor: 7.5 HP
- Coolant System: 1/4 HP
- Machine Net Weight (approx.): 3,100 kg
- Machine Gross Weight (approx.): 3,350 kg
- Machine Dimensions (L×W×H): 190 × 156 × 185 cm
- Shipping Dimensions (L×W×H): 210 × 176 × 205 cm

All models available with Automation Linkage (magazine loader + auto feed + unloader).
Design and technical data are subject to continuously improve and modify without notice.
