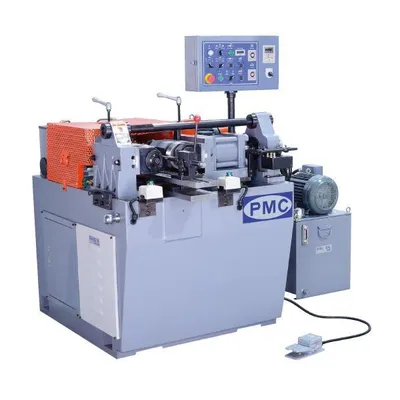

NEW PMC PM-32VS

- Maximum Rolling Pressure: 22 ton
- Solid Bar Outside Diameter (threaded): 3–32 mm
- Thread Pitch Range: 0.5–4.0 P; 40–6 TPI
- Other Thread Types Suited: Diamond knurling; straight knurling; small spline; small ball screw (others subject to approval)
- Max. Plunge-Feed (In-Feed) Thread Length: Equal to max die width
- Max. Thru-Feed Thread Length: Infinite (free extension thread length)
- Die-Spindle Diameter (2 pcs roller spindle): 54 mm (2-1/8")
- Rolling Dies Max. Outside Diameter: 150 mm
- Rolling Dies Bore Diameter: 54 mm (2-1/8")
- Rolling Dies Max. Width: 70 mm (Standard); 100 mm (Option – enlarged mechanism)
- Spindle Speed Range: 4-step, 20–60 RPM
- Variable Spindle Speeds: 0–90 RPM (Inverter)
- Max. Inclination of Both Spindles: 0°–10° (for thru-feed production)
- Distance Between Die-Spindle Centers: 125–180 mm
- Height from Table Surface to Spindle Center: 160 mm
- Die-Spindle Main Drive: 5 HP (Standard); 7.5 HP (Option)
- Variable Speed Drive: 7.5 HP inverter
- Hydraulic Motor: 5 HP
- Coolant System: 1/8 HP
- Machine Net Weight (approx.): 1,300 kg
- Machine Gross Weight (approx.): 1,500 kg
- Machine Dimensions (L × W × H): 178 × 151 × 178 cm
- Shipping Dimensions (L × W × H): 200 × 171 × 198 cm

Additional Notes:
- All models are available with automation linkage (magazine loader, auto feed, and unloader).
- Design and technical data are subject to change without notice.
