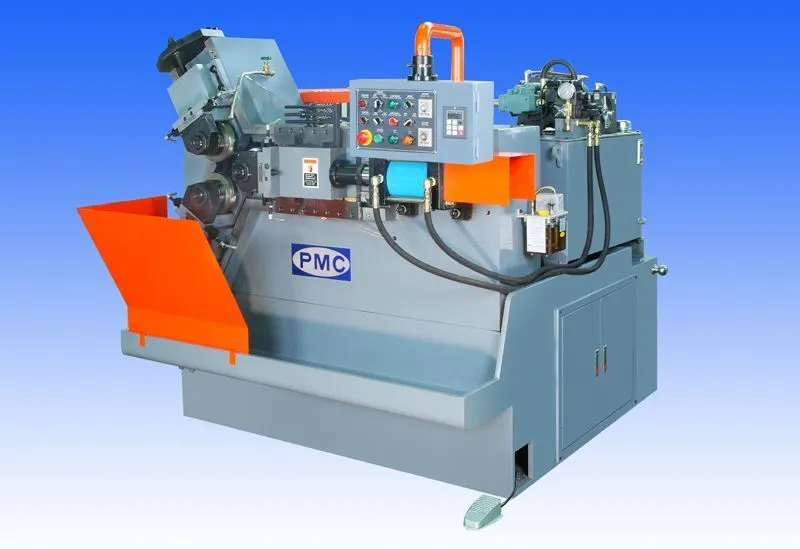

NEW PMC PM-3D-200
Overview
- Proven Technology, producing Quality Threaded Parts
- Sturdy, Durable, High Quality Construction
- Sensible Price Structure
- High Quality Thread Rolling Dies
Specs
- Maximum Rolling Pressure: 100 tons
- PIPE (Tube) Outside Diameter Range: 75–204 mm
- BAR Outside Diameter (subject to approval): 75–132 mm
- Thread Pitch Range: 4–32P; 6–0.8 TPI
- Maximum Thru-Feed Thread Length: Unlimited (free extension thread length)
- Die-Spindle Diameter (3 pcs roller spindle): 85 / 100 mm (Standard)
- Rolling Dies Max. Outside Diameter: 280 mm
- Rolling Dies Bore Diameter: 85 / 100 mm (Standard)
- Rolling Dies Max. Width: 280 mm
- Die-Spindle Rolling Speed Range: 0–100 RPM (variable speed drive by frequency converter as standard)
- Max. Inclination of All 3 Spindles: 0°–8° (set for thru-feed production)
- Die-Spindle Main Drive: 60 / 75 HP
- Variable Speed Drive: Frequency converter
- Hydraulic Motor: 20 HP
- Coolant System: 2 HP
- Machine Net Weight (approx.): 10,000 kg
- Machine Gross Weight (approx.): 10,700 kg
- Machine Dimensions (L × W × H): 335 × 258 × 250 cm
- Shipping Dimensions (L × W × H): 365 × 388 × 278 cm
