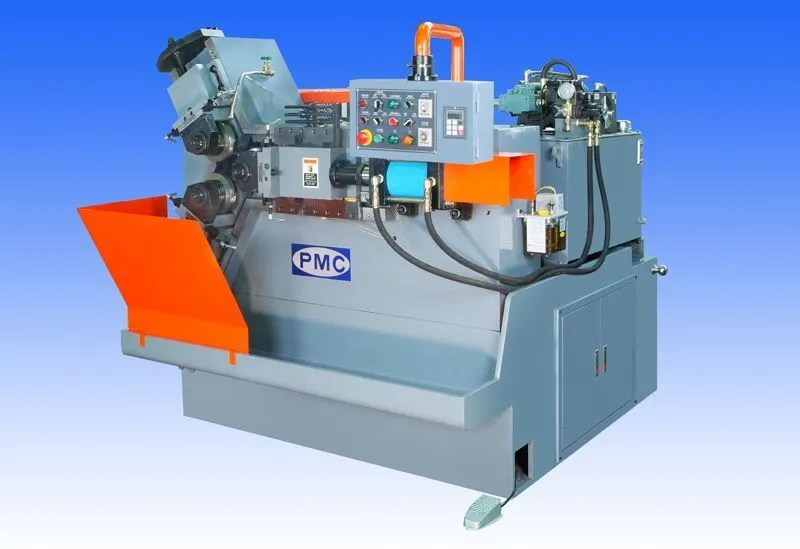

NEW PMC PM-3D-150
Overview
- Proven Technology, producing Quality Threaded Parts
- Sturdy, Durable, High Quality Construction
- Sensible Price Structure
- High Quality Thread Rolling Dies
Specs
- Maximum Rolling Pressure: 70 tons
- PIPE (Tube) Outside Diameter Range: 50–153 mm
- BAR Outside Diameter (subject to approval): 50–100 mm
- Thread Pitch Range: 3–25P; 8–1 TPI
- Maximum Thru-Feed Thread Length: Unlimited (free extension thread length)
- Die-Spindle Diameter (3 pcs roller spindle): 85 mm (Standard)
- Rolling Dies Max. Outside Diameter: 230 mm
- Rolling Dies Bore Diameter: 85 mm (Standard)
- Rolling Dies Max. Width: 210 mm
- Die-Spindle Rolling Speed Range: 0–100 RPM (variable speed drive by frequency converter as standard)
- Max. Inclination of All 3 Spindles: 0°–8° (set for thru-feed production)
- Die-Spindle Main Drive: 40/50 HP
- Variable Speed Drive: Frequency converter
- Hydraulic Motor: 15 HP
- Coolant System: 1 HP
- Machine Net Weight (approx.): 6,450 kg
- Machine Gross Weight (approx.): 6,950 kg
- Machine Dimensions (L × W × H): 270 × 228 × 230 cm
- Shipping Dimensions (L × W × H): 300 × 253 × 255 cm
