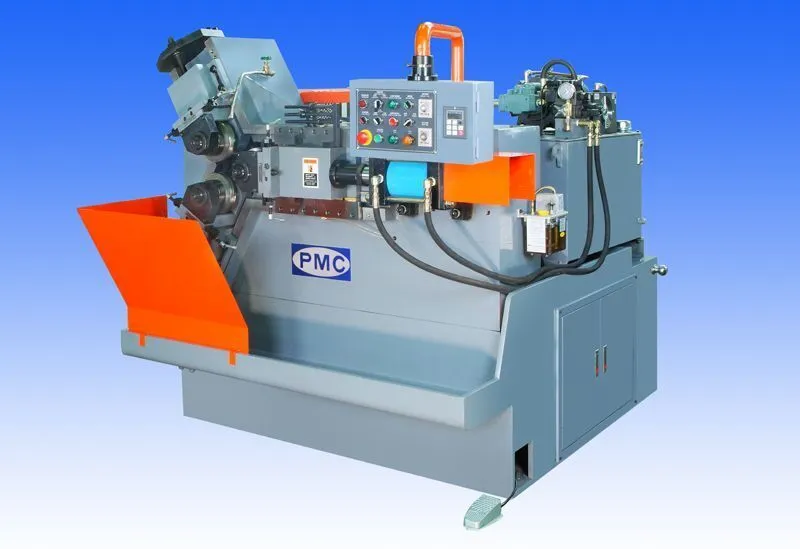

NEW PMC PM-3D-100
Overview
- Proven Technology, producing Quality Threaded Parts
- Sturdy, Durable, High Quality Construction
- Sensible Price Structure
- High Quality Thread Rolling Dies
Specs
- Maximum Rolling Pressure: 45 tons
- PIPE (Tube) Outside Diameter Range: 38–102 mm
- BAR Outside Diameter (subject to approval): 38–70 mm
- Thread Pitch Range: 2–12P; 12–2 TPI
- Maximum Thru-Feed Thread Length: Unlimited (free extension thread length)
- Die-Spindle Diameter (3 pcs roller spindle): 70 mm (Standard)
- Rolling Dies Max. Outside Diameter: 190 mm
- Rolling Dies Bore Diameter: 70 mm (Standard)
- Rolling Dies Max. Width: 150 mm
- Die-Spindle Rolling Speed Range: 0–100 RPM (variable speed drive by frequency converter as standard)
- Max. Inclination of All 3 Spindles: 0°–8° (set for thru-feed production)
- Die-Spindle Main Drive: 30 HP
- Variable Speed Drive: Frequency converter
- Hydraulic Motor: 10 HP
- Coolant System: 1/2 HP
- Machine Net Weight (approx.): 3,800 kg
- Machine Gross Weight (approx.): 4,150 kg
- Machine Dimensions (L × W × H): 215 × 205 × 200 cm
- Shipping Dimensions (L × W × H): 240 × 225 × 225 cm
