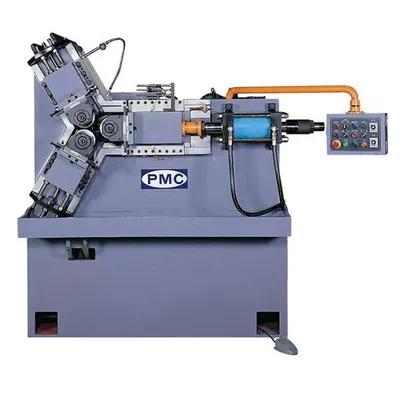

NEW PMC PM-3D-80
Overview
- Proven Technology, producing Quality Threaded Parts
- Sturdy, Durable, High Quality Construction
- Sensible Price Structure
- High Quality Thread Rolling Dies
Specs
Max. Rolling Pressure: 30 ton
PIPE Outside Diameter Range: 30–80 mm
BAR Outside Diameter (subject to approval): 30–40 mm
Thread Pitch Range: 2–8P; 12–3 TPI
Max. Thru-Feed Thread Length: Free for extension
Die-Spindle Diameter (3 pcs roller spindle): 54 mm (Standard)
Rolling Dies Max. Outside Diameter: 150 mm
Rolling Dies Bore Diameter: 54 mm (Standard)
Rolling Dies Max. Width: 100 mm
Die-Spindle Rolling Speed Range: 60–200 RPM (Standard)
Variable Die-Spindle Speed: 0–250 RPM (Option)
Max. Inclination of All 3 Spindles: 0°–8° (for thru-feed production)
Die-Spindle Main Drive: 15 HP (Standard)
Variable Speed Drive: 20 HP (Option)
Hydraulic Motor: 7.5 HP
Coolant System: 1/4 HP
Net Weight (approx.): 2,600 kg
Gross Weight (approx.): 2,850 kg
Machine Dimensions (L × W × H): 181 × 171 × 176 cm
Shipping Dimensions (L × W × H): 205 × 192 × 200 cm
