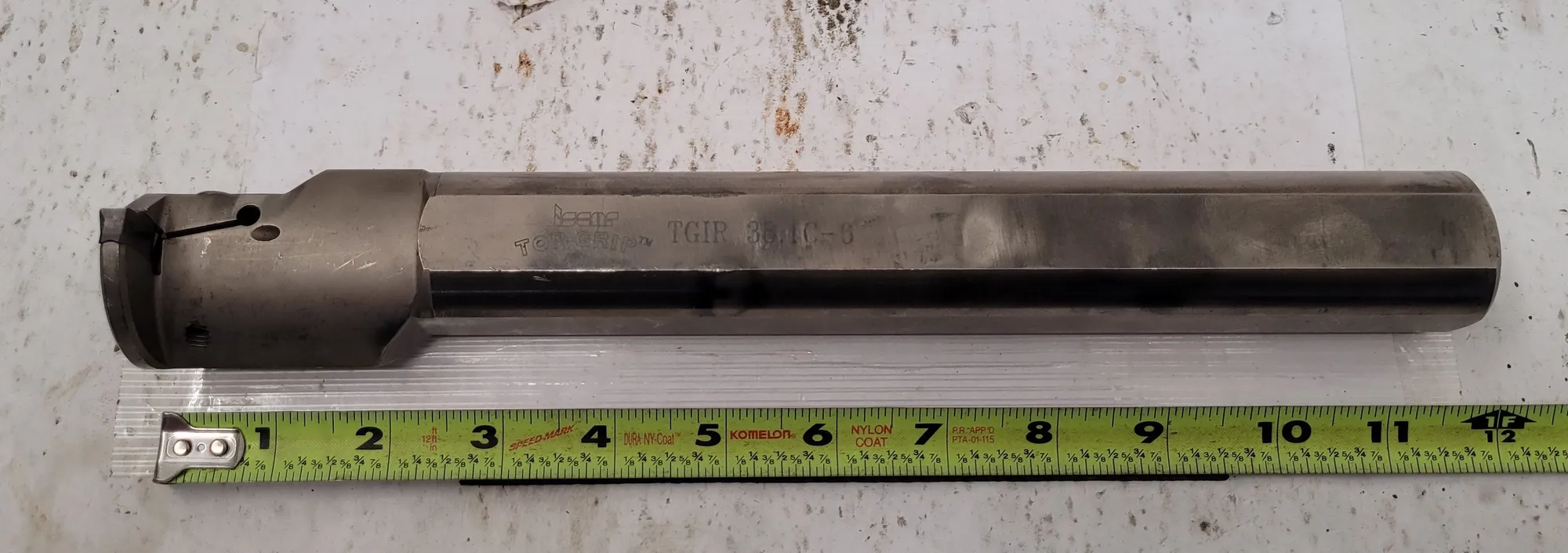

USED ISCAR TGIR 38.1C-6

Iscar Indexable Grooving Toolholder TGIR 38.1C-6 used in tooling and accessories. Key Specs: Right-hand, 0.72" max depth, 0.25" max groove width, 11.8" overall length. Compatible with TGMF inserts. Suitable for universal materials.

Iscar Indexable Grooving Toolholder Top Grip TGIR, 38.1C-6

Toolholder Type Internal Grooving
Hand of Holder Right Hand
Maximum Depth of Cut (Decimal Inch) 0.7200
Minimum Groove Width (Decimal Inch) 0.2360
Toolholder Style TGI
Maximum Groove Width (Decimal Inch) 0.2500
Maximum Groove Width (Inch) 1/4
Insert Holding Method Clamp
Insert Compatibility TGMF
Compatible Insert Size Code TGMA; TGMF; TGMF/P
Shank Length (Decimal Inch) 9.4400
Overall Length (Decimal Inch) 11.8
Head Length (Decimal Inch) 2.36
Primary Workpiece Material Universal
