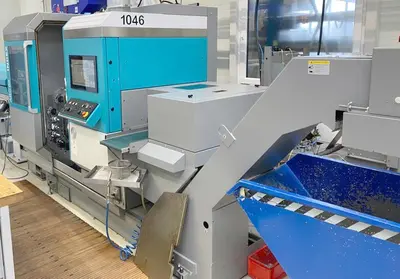

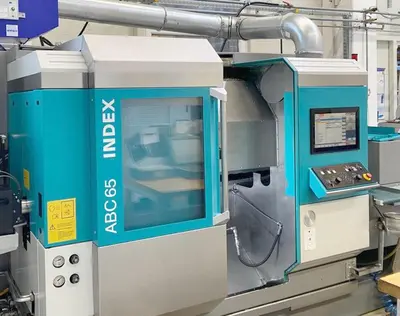

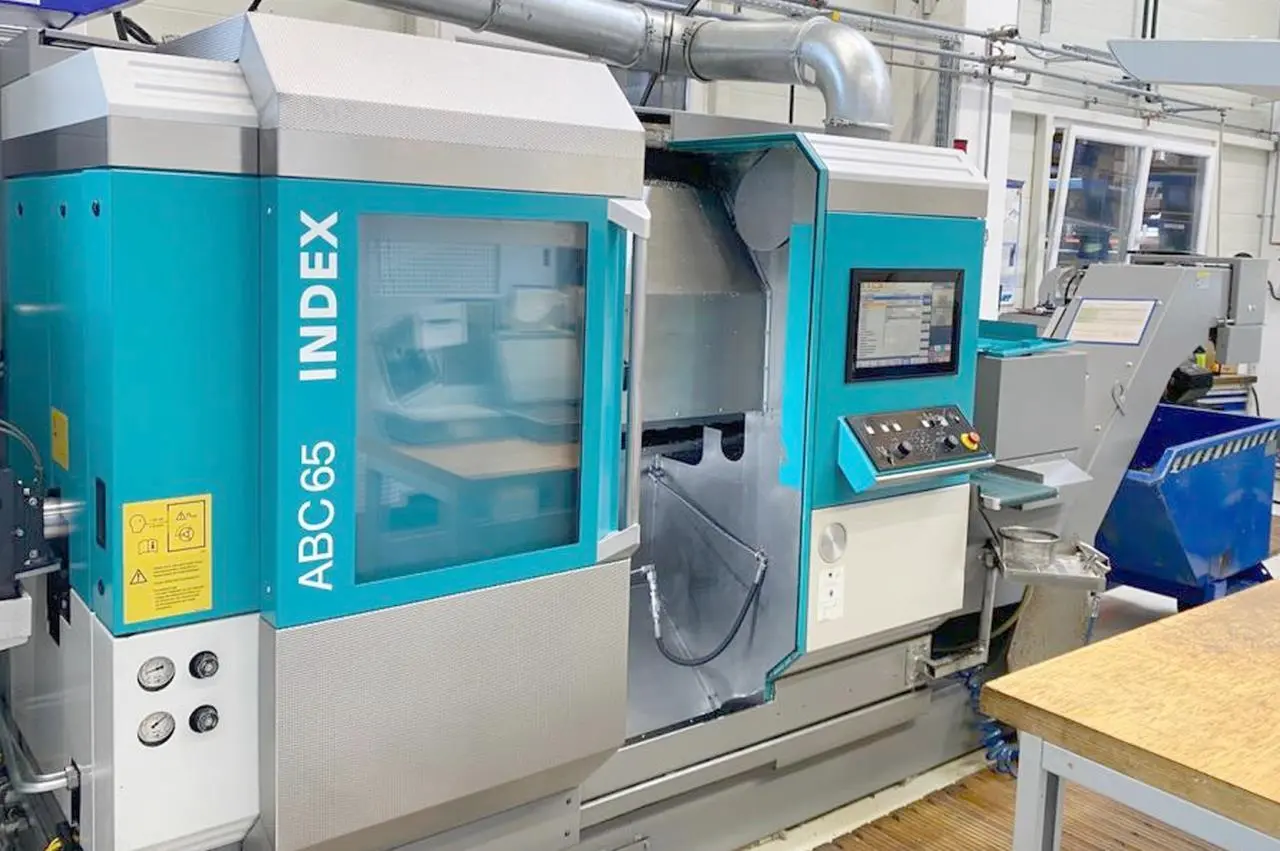

USED 2013 INDEX ABC65

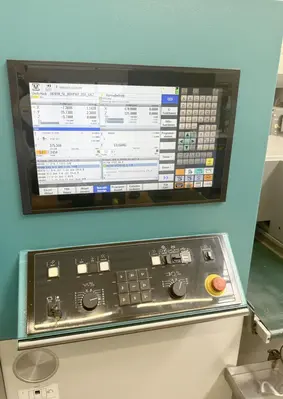

One Used INDEX ABC 65 CNC Turning, Milling, Drilling Center with SIEMENS SINUMERIK 840 D, New 2013.
Technical data
Number of turning spindles 2
Number of revolvers 2
Spindle head ISO 702/1
Spindle hole 65 mm
Spindle diameter 140 mm

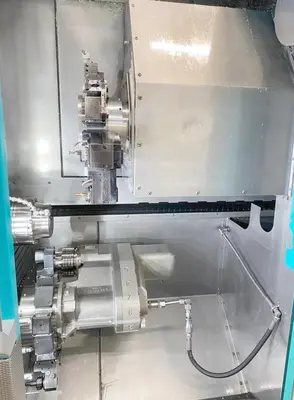

Turret carriage:
Carriage 1:
Longitudinal travel (Z-axis) 300 mm
Transversal stroke (X axis) 140 mm
Transversal travel (y-axis) 100 mm
Carriage 2:
Longitudinal travel (Z-axis) 300 mm
Transversal stroke (X axis) 140 mm
Transversal travel (y-axis) 100 mm
Turret slide: number 2
Number of positions turret 1 10
Number of positions turret 2 9
Number of positions turret back side 8
Driven tools turret 1 10
Driven tools turret 2 9
Driven tools back side 5
Spindle speeds 12000 rpm
Tool shank cross section 45 mm
Power of driven tools 7.5 / 9 kW
Indexing time 0.4 sec
Main spindle:
C axis (spindle, resolution) 0.001 °
Spindle speeds:
stepless
from 0 rpm
up to 6000 rpm
Spindle power 25 / 35 kW
Torque max. 80 / 120 Nm

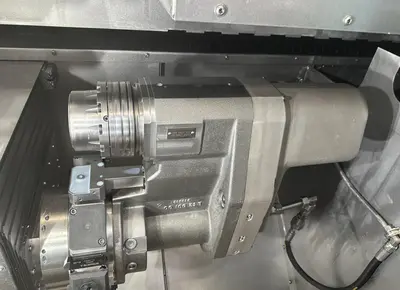

Back spindle mobile:
max. speed 6000 rpm
Internal spindle diameter 65 mm
Spindle diameter 110 mm
C axis (spindle, resolution) 0.001 °
Power of back spindle 5 / 9 kW
Torque max. 10.5 / 20 Nm
Rapid traverse X 30 m/min
Rapid traverse Z 50 m/min
Voltage 50 Hz 3x 400 Volt
Total power required 41 kW
Machine's weight about 6500 kg
Overall dimensions machine:
Length 3600 mm
Width 1280 mm
Height 1950 mm
Various accessories:
Collet device
Lamp
Water cooler
Coolant system 300 l
High pression coolant device 80 bar
Paper filtration system
Interface USB
Automatic parts removal
Workpiece conveyor
Chip conveyor

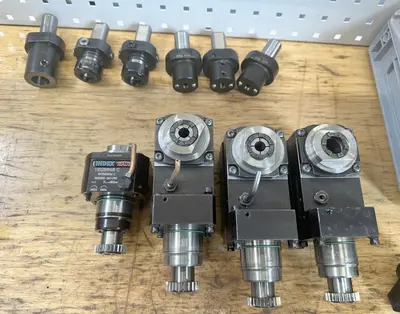

Set of toolholders
Notes:
Z-axis revised 2023

Technical specifications without guarantee.
