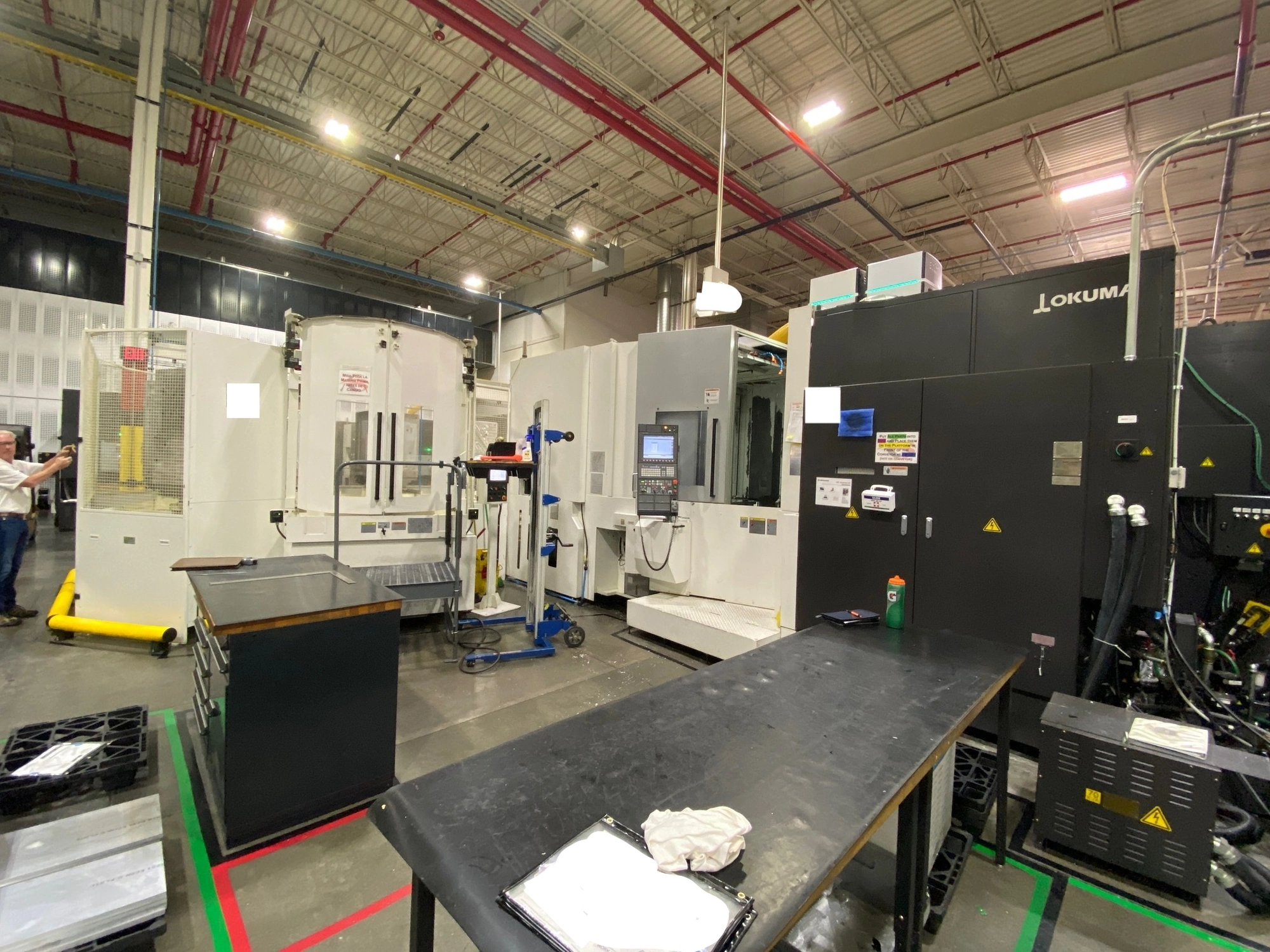

OKUMA MB8000H CNC Horizontal Machining Center, 2017, equipped with OSP P300M CNC Control, 12 pallets, 12,000 RPM spindle, and robust automation features including 12 pallet cell configuration, shower coolant and Renishaw tool breakage detection and Renishaw Part Probe offering precision and efficiency.
| Pallet Size - L | 31.5" | 800.1 mm |
| Pallet Size - W | 31.5" | 800.1 mm |
| Number of Pallets | 12 | 12 |
| Pallet Weight Capacity | 4,400 lb | 1,995.8 kg |
| Pallet Surface to Spindle Center | 1.97" ~ 45.28" | 1.97" ~ 45.28" |
| Pallet Center To Spindle Gage Line | 3.94" ~ 53.15" | 3.94" ~ 53.15" |
| X - AxisTravel | 51.18" | 1,300 mm |
| Y - Axis Travel | 43.31" | 1,100.1 mm |
| Z - Axis Travel | 49.21" | 1,249.9 mm |
| B - Axis Travel | 1 DEGREE | 1 DEGREE |
| Rapid Traverse Rate - X | 1,969 in/min. | 50 m/min. |
| Rapid Traverse Rate - Y | 1969 ipm | |
| Rapid Traverse Rate - Z | 1969 ipm | |
| Cutting Feed Rate | 1,969 in/sec. | 3,000.8 m/min. |
| Spindle Speed | 12,000 RPM | 12,000 RPM |
| Spindle Taper | 50 | 50 |
| Main Motor | 50 hp | 37.3 kW |
| Automatic Tool Changer | 171 | 171 |
| Tool Diameter | 5.51", 9.45" | 5.51", 9.45" |
| Tool Length | 23.62" | 599.95 mm |
| Tool Weight | 55 lb | 24.9 kg |
| Tool Change Time | 2 sec. | 2 sec. |
| Machine Weight | 59,400 lb | 26,943.4 kg |
| Control | CNC (OSP 300M CNC COLOR CONTROL) | CNC (OSP 300M CNC COLOR CONTROL) |
| Weight | 0.00 | 0.00 |
OSP P300M CNC CONTROL
PREPPED FOR HIGH PRESSURE THRU SPINDLE COOLANT
MULTI-TAP TRANSFORMER
200 HOUR LUBE TANK
EXTENDED CAP DRAIN TANK
8 SPARE M-CODES
WORK COORDINATE 400 SETS
MAYFRAN CONCEPT 2000 CONVEYOR
SHOWER COOLANT
RENISHAW TS34 TOOL BREAKAGE DETECTION
AUTO GAUGING, RENISHAW OMP60
