USED INDEX G 200

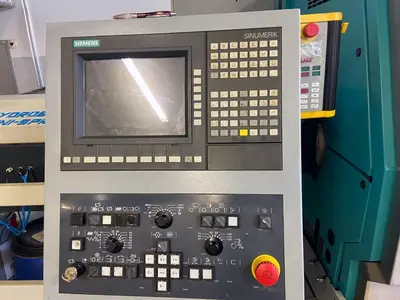

One Used Index G200 CNC Turning-Milling-Drilling Center, with SIEMENS SINUMERIK 840 C Control.
Technical data
Number of spindles 2
Number of revolvers 2
Spindle hole 42 mm
Turning diameter 200 mm
Turning length 400 mm
Turret slide:
Number of positions turret 1 14
Number of positions turret 2 14
Driven tools turret 1 14
Driven tools turret 2 14
Spindle speeds 6000 rpm
Power of driven tools 5.5 kW
Inner cone DIN 69 880
Indexing time 0.4 sec

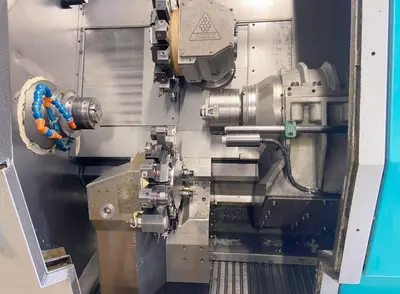

Upper turret head:
X axis 155 mm
Y axis +/- 60 mm
Z axis 400 mm
Lower turret head:
X axis 105 mm
Z axis 400 mm
Main spindle:
Internal spindle diameter 60 mm
C axis (spindle, resolution) 0.01 °
Spindle speeds:
stepless
from 0 rpm
up to 6300 rpm
Spindle power 20 / 29 kW
Torque max. 95 / 140 Nm
Back spindle:
max. speed 6300 rpm
Internal spindle diameter 42 mm
Spindle diameter 160 mm
C axis (spindle,resolution) 0.001 °
Back spindle stroke 445 mm
Power of back spindle 13 / 22 kW
Rapid traverse X 22.5 m/min
Rapid traverse Z 45 m/min
Rapid traverse Y 7.5 m/min
Spindle motor 39 kW
Voltage 50 Hz 3x 400 Volt
Machine's weight about 4800 kg
Overall dimensions machine:
Length 2500 mm
Width 2400 mm
Height 2700 mm
Various accessories:

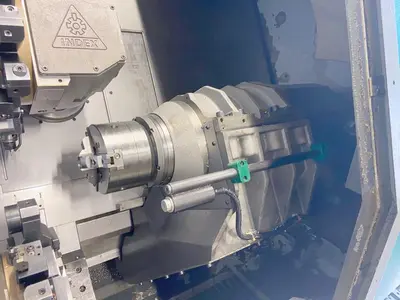

3-jaw chuck
Collet chuck (number) 2
Set of collets
Lamp

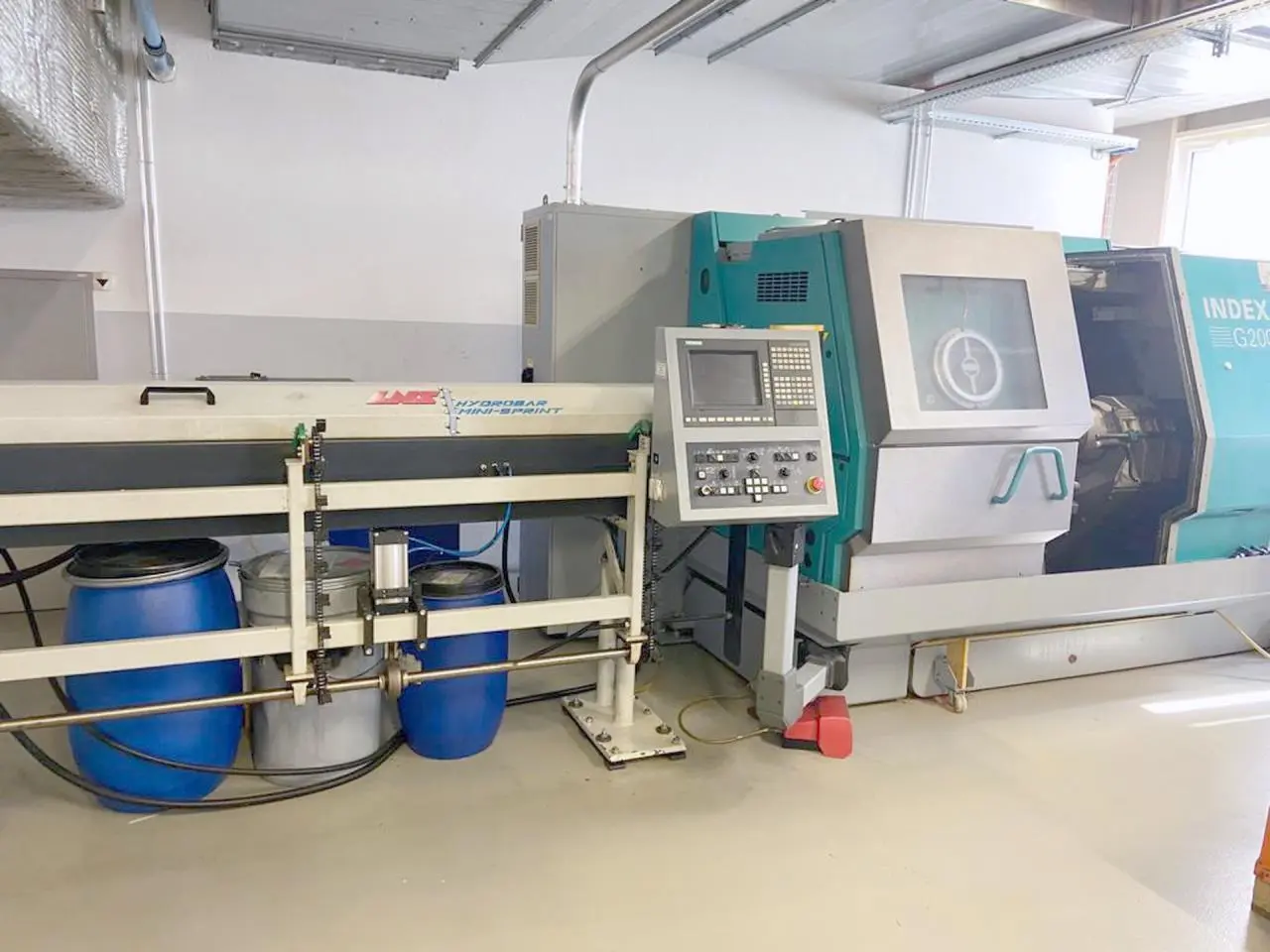

Bar feeder LNS
Type MINI-SPRINT S2-42
Length of bars max. 4000 mm
Tool cabinet
Interface serial port RS 232
Part separating device

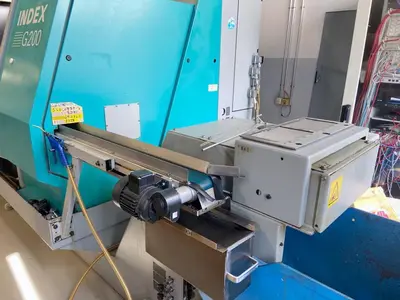

Workpiece conveyor
Chip conveyor
Foot pedal
Set of steel holders

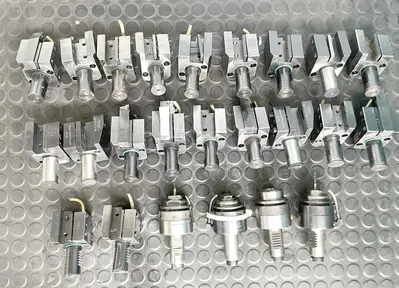

Set of toolholders
Driven tools (number)
Rotating viewing window

Technical specifications without guarantee.
