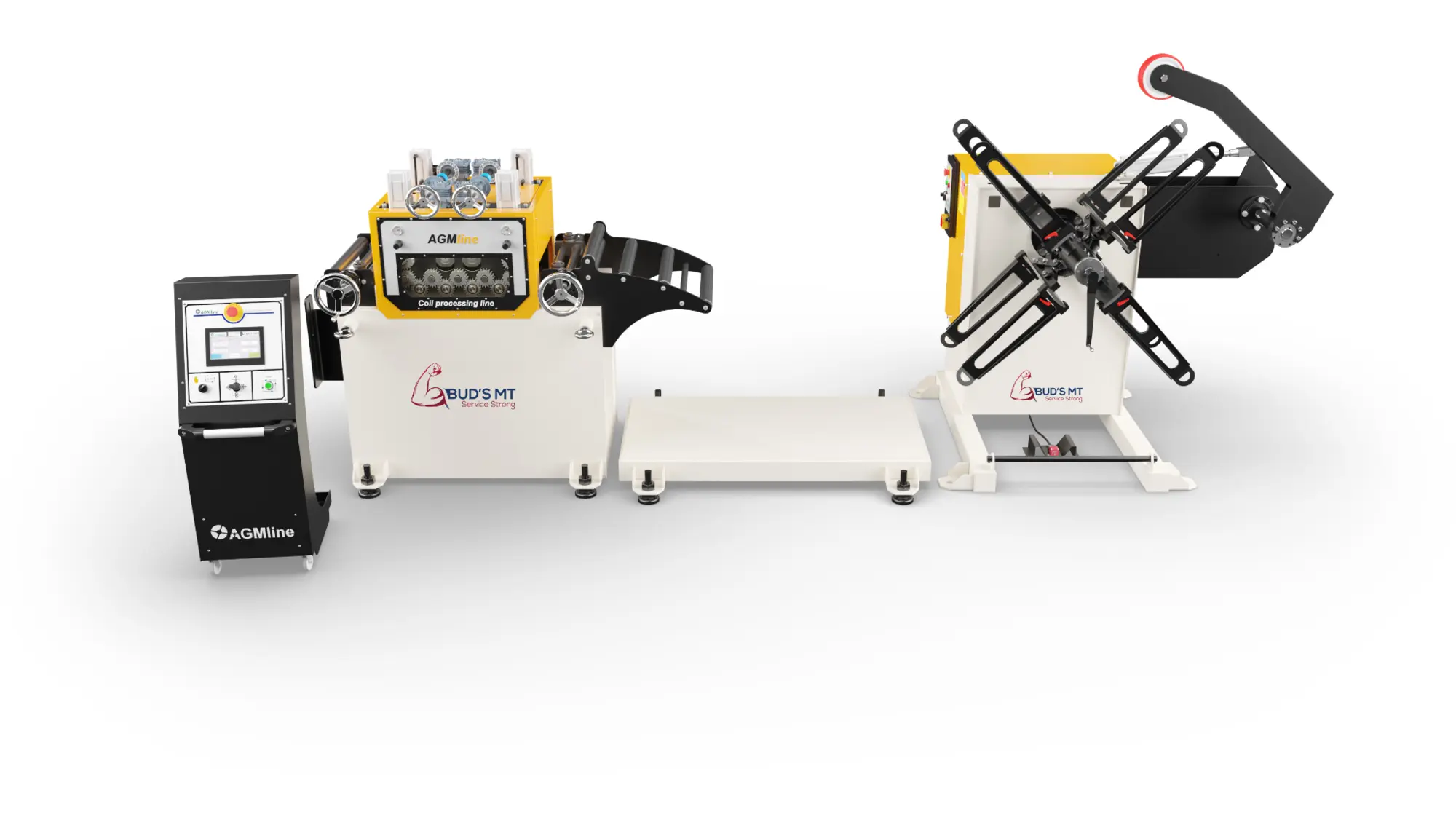

NEW BMT L-Series
Overview
CL Series of Our Compact System is Designed at Single Chassis which Enables to Minimize the Space Need, For Our Customers.
Specs
Model Material Width Coil Weight Material Thickness Speed Rollers Diameters Coil ID (Ø) Control System
CL302 30 – 300 1.000 Kg 0.4 – 3 ( mm ) 32 m/min 9 Pcs. / Ø 85 mm 300 – 550 ( mm ) Servo System
CL302 30 – 300 2.500 Kg 0.4 – 3 ( mm ) 32 m/min 9 Pcs. / Ø 85 mm 420 – 550 ( mm ) Servo System
CL402 40 – 400 2.500 Kg 0.4 – 3 ( mm ) 32 m/min 9 Pcs. / Ø 85 mm 420 – 550 ( mm ) Servo System
CL602 60 – 600 2.500 Kg 0.4 – 3 ( mm ) 32 m/min 9 Pcs. / Ø 85 mm 420 – 550 ( mm ) Servo System
CL304 30 – 300 4.000 Kg 0.4 – 3 ( mm ) 32 m/min 9 Pcs. / Ø 85 mm 480 – 530 ( mm ) Servo System
CL404 40 – 400 4.000 Kg 0.4 – 3 ( mm ) 32 m/min 9 Pcs. / Ø 85 mm 480 – 530 ( mm ) Servo System
CL604 60 – 600 4.000 Kg 0.4 – 3 ( mm ) 32 m/min 9 Pcs. / Ø 85 mm 480 – 530 ( mm ) Servo System
Equipped With
Mechanical Decoiler
Coil Capacity ( 1 Ton / 2.5 Ton / 4 Ton )
Mechanical Coil Tightening / Releasing
Coil Upper Pressure Arm
Coil Routing Platform
Coil Bending Arm
Servo Feeder with Straightener
Roller Group – Gear Transmission
Straightening Adjustment / Accurate Positioning
Automatic Mold Height Adjustment
Automated Straightening / Servo System
Distance Detection / Laser Sensor
Mold Memory & Multiple External Outputs
Operating from Touchscreen Panel and Remote Tech Support
Encoder
Press Control Automation System
Mold Protection System
Mold Lubrication System
