| X Axis | 80" | 2,032 mm |
| Y Axis | 30" | 762 mm |
| Z Axis | 30" | 762 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 24 | 24 |
| Taper | 40 | 40 |
| Table-W | 30" | 762 mm |
| Table-L | 82.5" | 2,095.5 mm |
| # Axis | 3 | 3 |
| Control | CNC (Fadal Multi Processor) | CNC (Fadal Multi Processor) |
| Dimensions | 218″ x 1118″ x 132″ High Approx. | 218″ x 1118″ x 132″ High Approx. |
| Weight | 18,000 lbs Approx. | 18,000 lbs Approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

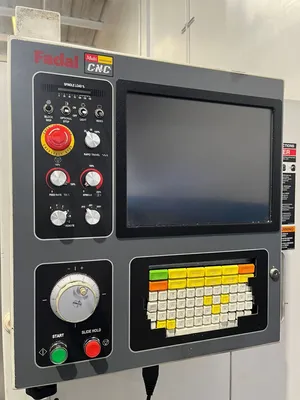

Fadal Multi Processor CNC Control
Box Way construction
Rigid Tapping
Telescopic way covers
Travels:
X-Axis: 80″
Y-Axis: 30″
Z-Axis: 30″
Spindle Nose to Table (Min.- Max.): 5.5″ – 35.5″
Feed rates:
Rapid Traverse rates X, Y & Z Axis: 400 IPM
Cutting Feedrate: 250 IPM
Table:
Length: 82.5″
Width: 30″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 3751 lbs
Spindle:
Taper Size: 40
Speed Range: 10,000 RPM
Spindle Power: 30 HP

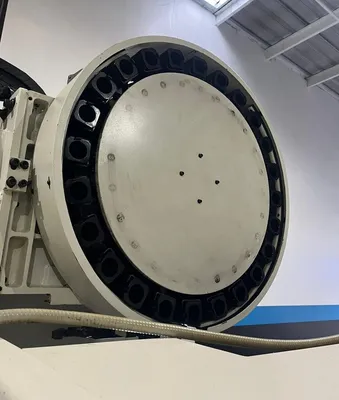

Automatic Tool Changer:
Capacity: 24 Tools
Max Tool Weight: 15 lbs
Max Tool Dia: 6.0″
Max Tool Length: 15.0″

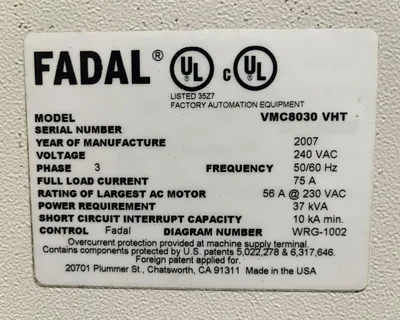

General:
Air Required: 80 psi, 4 scfm
Power: 240v / 3-Phase / 60 Hz / 37 Kva
Overall Dimensions: 218″ x 1118″ x 132″ High Approx.
Weight: 18,000 lbs Approx.
4th Axis Ready
Through Spindle Coolant Ready
24 Station Automatic Tool Changer
10,000 RPM High Precision Spindle
30 HP High Torque Spindle Motor
MPG Hand Wheel Control
Coolant System

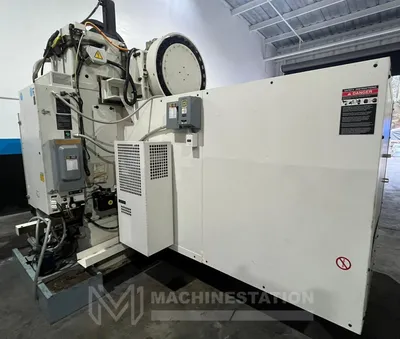

Chiller Unit
