USED 2018 MITUTOYO CRYSTA-APEX S776
Overview

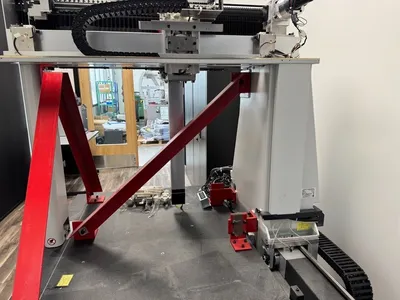

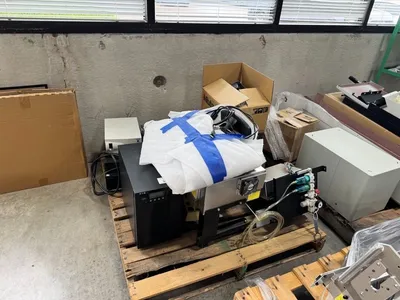

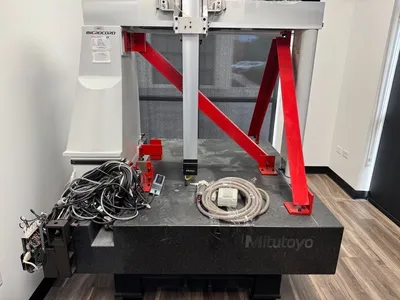

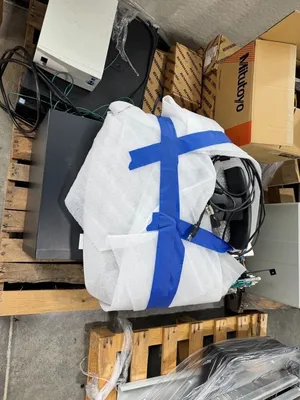

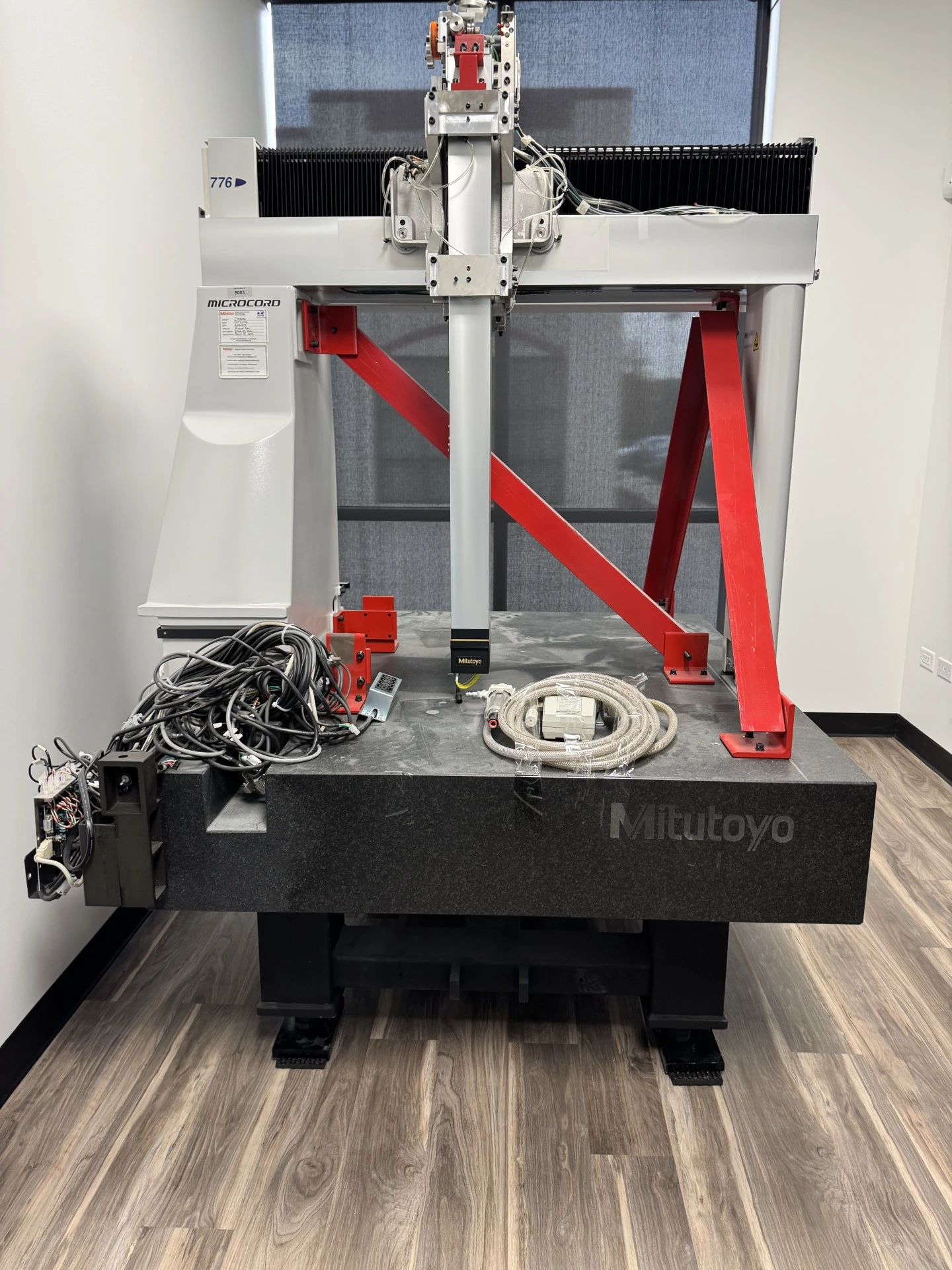

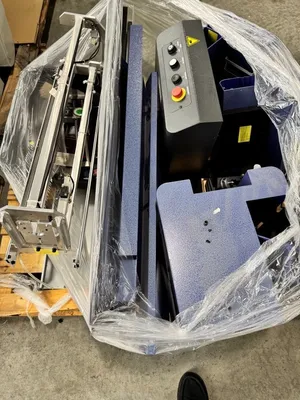

2018 Mitutoyo CMM Crysta-Apex S776 Coordinate Measuring Machine. Machine is in very good condition and can be inspected as needed. The unit was locked down and prepared for shipment by Mitutoyo. Lightly used.
Specs
The Mitutoyo CRYSTA-Apex S776 is a bridge-style CNC coordinate measuring machine
designed for high-accuracy dimensional inspection in toolrooms, precision machining,
aerospace, automotive, and medical manufacturing.
Specifications
Specification Value
Measuring Range (X × Y × Z) 700 × 700 × 600 mm (27.6" × 27.6" × 23.6")
Resolution 0.0001 mm (0.1 µm)
Guide System Air bearings on all three axes
Measuring Accuracy (SP25M probe) 1.7 + 3L/1000 µm (ISO 10360-2)
Max Measuring Speed 8 mm/sec
Max Traverse Speed 519 mm/sec
Max Acceleration 2,309 mm/sec²
Maximum Workpiece Height 800 mm (31.5")
Maximum Workpiece Weight 800 kg (1,763 lb)
Machine Weight 1,675 kg (3,692 lb)
Air Supply Pressure 0.4 MPa (58 psi)
Air Consumption 50 L/min (1.76 CFM) typical
Air Source Capacity 100 L/min (3.53 CFM) recommended
