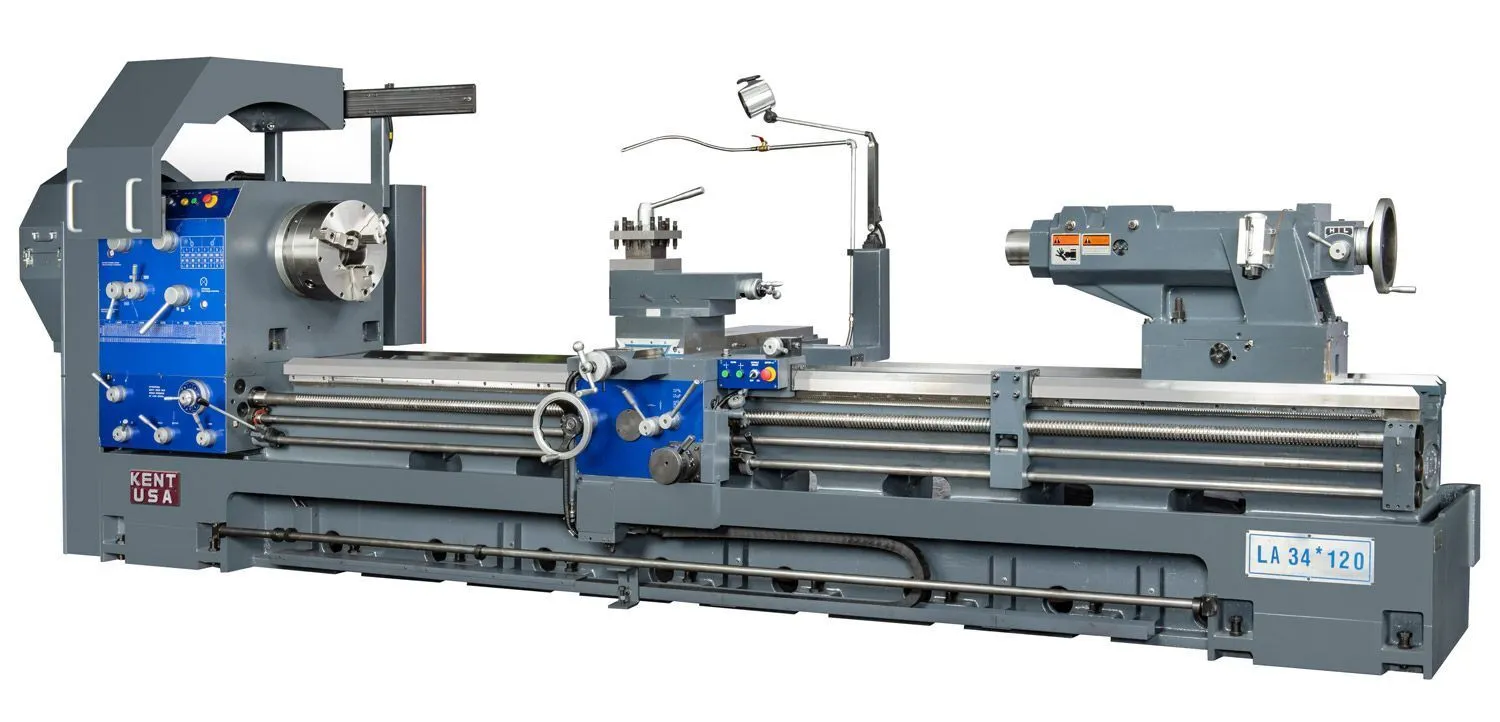

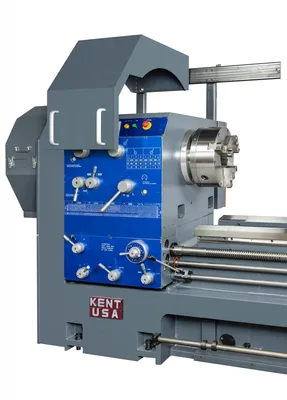

NEW KENT USA LA-34120
Overview
New KENT USA LA-34120 Precision Lathe, combining advanced engineering with reliable performance. Ideal for precision tasks, this model supports your most demanding projects. Trusted manufacturer, KENT USA, ensures high-quality equipment tailored for professionals.
Specs
Specification HR-35 Series LA-34 Series LA-38 Series
Swing Over Bed 34.6" 34" 38"
Swing Over Cross Slide 25.2" 24.4" 28.3"
Swing Over Gap 46" 46" 50"
Width of Bed 19" 20" 20"
Distance Between Centers 120" (Opt. 80" / 160" / 200") 60" (Opt. 80", 120", 160", 200") 60" (Opt. 80", 120", 160", 200")
Cross Slide Travel 17.32" 11.02" 19.6"
Top Slide Travel 9.4" 12" 11.02"
Spindle Bore 4.1" (Opt. 6.1") 6" (Opt. 9", 12") 6" (Opt. 9", 12")
Spindle Nose D1-11 or A1-11 A2-11 (Opt. A2-15) A2-15 (Opt. A2-20)
Spindle Speeds 12 18 18
Spindle Speed Range 14-1000 RPM 5 – 670 RPM (Opt. 4 – 500 RPM) 4 – 500 RPM (Opt. 4 – 440 RPM)
Through Hole Diameter 4.1" (Opt. 6.1") 6" 6" (Opt. 9", 12")
Quill Taper MT#6 MT#5 (Opt. MT#6) MT#6
Thread – Standard (Whit-worth) 45 (2-72) TPI 30 – 0.25 TPI 30 – 0.25 TPI
Thread – Metric Pitch 39 (0.2-14) mm 1 – 120 mm 1 – 120 mm
Longitudinal Feed 0.002"–0.0276" in/rev 0.0032 – 0.096 ipr 0.0032 – 0.096 ipr
Cross Feed 0.001"–0.00138" 0.0016 – 0.048 ipr 0.0016 – 0.048 ipr
Quill Travel 12" 5.9" (Opt. 7.9") 5.9" (Opt. 7.9")
Quill Diameter 4.133" 4.9" (Opt. 6.5") 4.9" (Opt. 6.5")
Main Motor 20 HP 20 HP (Opt. 30 HP) 20 HP (Opt. 30 HP)
Coolant Pump Motor 1/8 HP 1/8 HP 1/8 HP
Packing Dimension 198" x 69" x 73" 127" – 265" x 43" x 62" 127" – 265" x 43" x 66"
Gross Weight 9130 - 15400 lbs 13800 – 27000 lbs 14450 – 29750 lbs
Equipped With
Standard Accessories
3-jaw chuck (15″)
Steady rest
Follow rest
Thread chasing dial
4-position tool post
4-position carriage stop
Coolant system with full-length splash guard
Optional Accessories
Digital Readout System
Aloris DA #5-SET (Tool post and 6 holders)
Royal spindle type live center
Zero-set 3-jaw chuck with back plate (Zero-set, 15″ D1-11)
Adaptor plate and rear 12″ 3 jaw chuck for back of spindle
Face plate (20″ D1-11)
Taper turning attachment
Micrometer carriage stop
