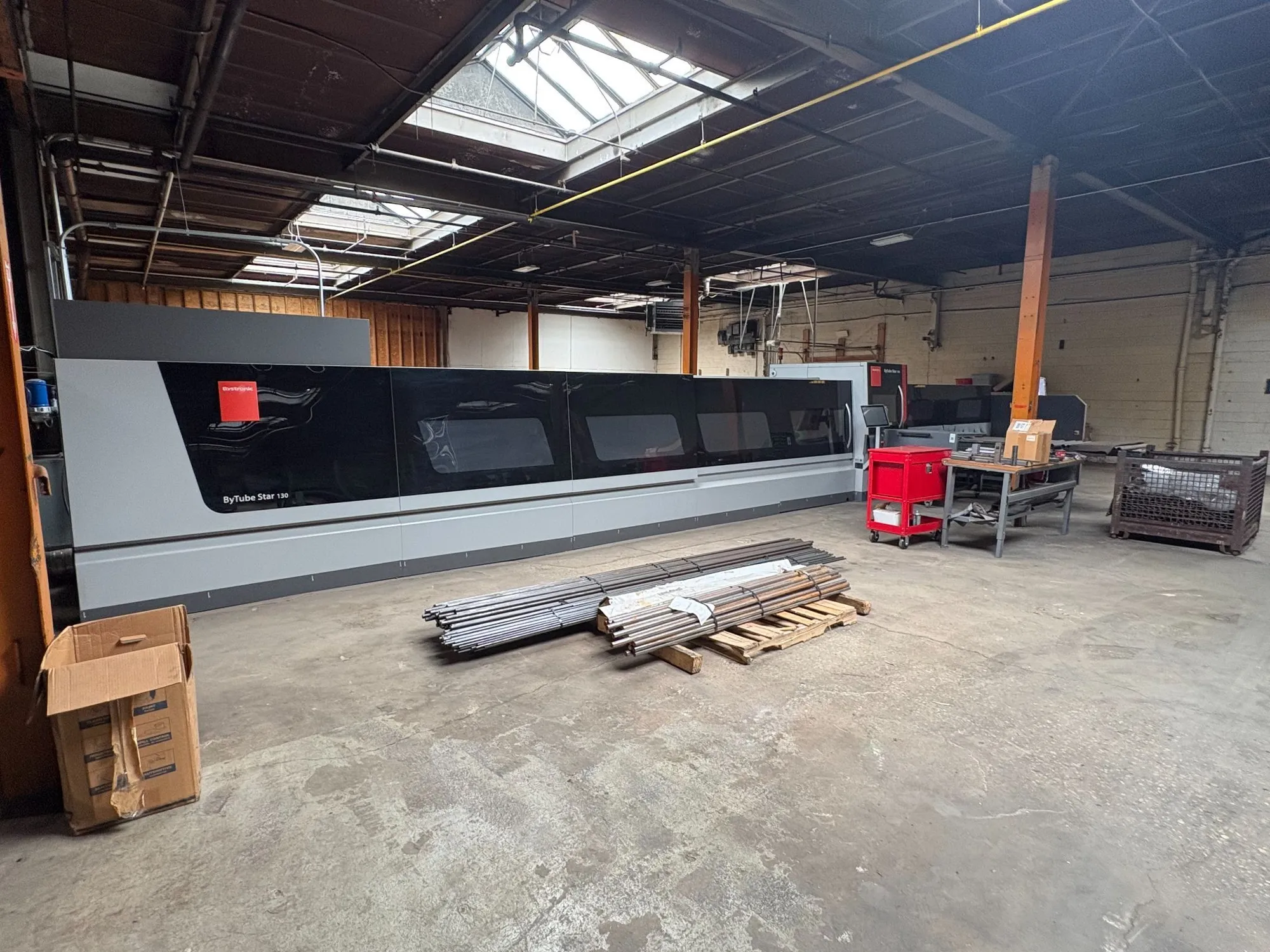

USED 2022 BYSTRONIC ByTube Star 130

LASER TYPE: FIBER
MAX. WATTAGE: 3,000
CHUCK CAPACITY: 0.39” TO 5.12”
TRAVELS:
- Z-AXIS: 4.25”
- Y-AXIS: 17.32”
MAX. TRAVEL SPEED:
- Z-AXIS: 2,362 IPM
- Y-AXIS: 2,362 IPM
- X-AXIS: 7,874 IPM
- XC-AXIS (HEAD): 1,181 TO 2,362 IPM
MAX. CHUCK ROTATION: 250 RPM
MAX. TUBE LENGTH: 255.9” - 334.6”
MIN. TUBE LENGTH WITH AUTO LOADING: 98.42”
MIN. TUBE LENGTH MANUAL LOADING: 5.5” + PART LENGTH
LOADING CAPACITY OF BUNDLE LOADER: 9,920 LBS
MAX. TUBE WEIGHT: 37.47
PROFILE TYPES: O ◻ ▯ ⬭ U C L —
DIMENSIONS OF ROUND CROSS-SECTIONS Ø: 0.39” TO 5.12”
DIMENSIONS OF SQUARE CROSS-SECTIONS: (0.39” x 0.39”) TO (5.12” x 5.12”)
MAX. TUBE LENGTH FOR UNLOAD SYSTEM: 78"
MAX. CUTTING THICKNESS:
- STEEL: 0.59”
- STAINLESS STEEL AND ALUMINUM: 0.315”
- COPPER AND BRASS: 0.236”
SUPPORTED TUBE DIMENSIONS:
- TUBE DIAMETER ROUND SECTION: 039” TO 5.12”
- TUBE DIMENSIONS SQUARE SECTIONS: (0.39” x 0.39”) TO (5.12” x 5.12”)
- TUBE DIMENSIONS OTHER CLOSED SECTIONS: 039” TO 5.12”
- PROFILE DIMENSIONS ANGLE (L) EQUAL LEGS: (0.748” x 0.748”) TO (3.54” x 3.54”)
- PROFILE DIMENSIONS ANGLE (L) UNEQUAL LEGS: (1.18” x 0.787”) TO (512” x 3.54”)
- PROFILE DIMENSIONS UPN/CHANNEL: (0.98” x 0.47) TO (5” x 1.97”)
- PROFILE DIMENSIONS UPE: (0.748” x 0.748”) TO (512” x 3.54”)
- PROFILE DIMENSIONS FLAT BARS:
- - WIDTH: (1.57” TO 5.12”)
- - THICKNESS: (0.196” TO 0.59”)
- SPECIAL PROFILES LIKE WINDOW PROFILES POSSIBLE WITH "SPECIAL PROFILE
PACKAGE.
