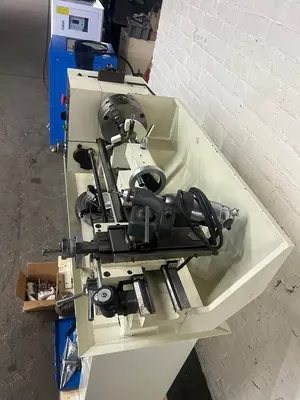

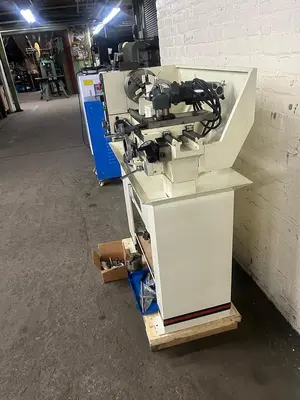

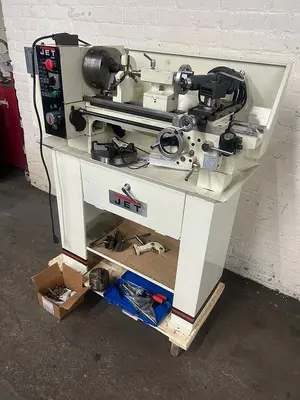

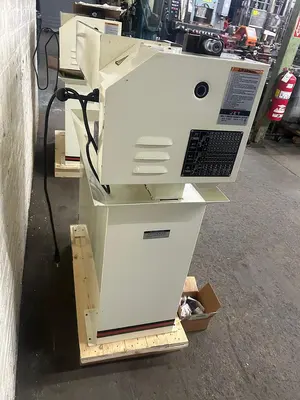

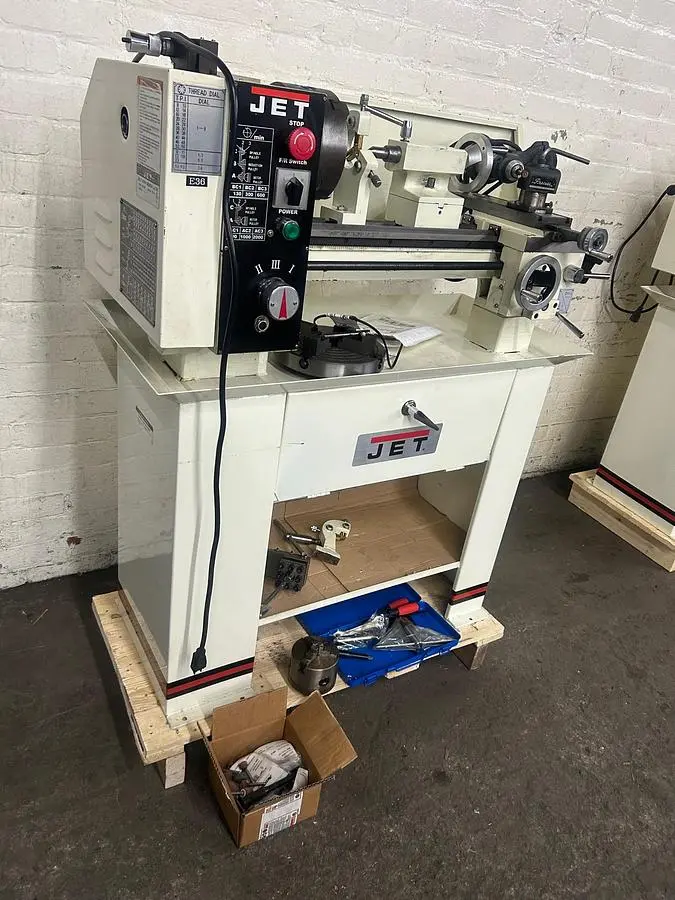

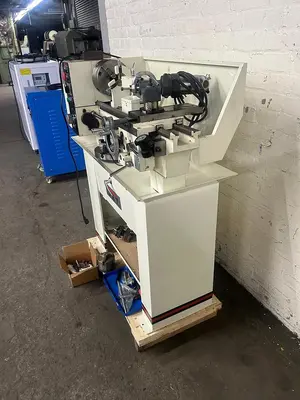

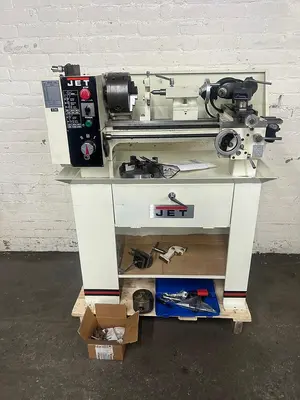

USED JET BD-920W
Overview

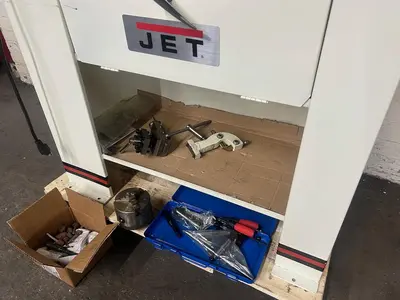

Equipped With:

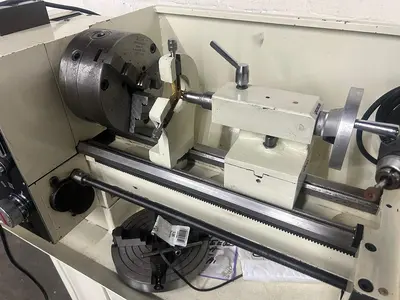

6 1/2" 3 Jaw chuck
8" 4 Jaw chuck
Tool post
4" 3 Jaw chuck
Face plates
Dead center
steady and follow rests
Precise grinder and attachments
Tail Stock
Travadial

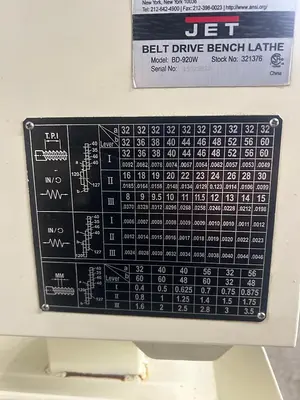

Spindle supported by precision tapered roller bearings. Quick-change gear box provides wide range of inch and metric threads.
Specs
Voltage: 115V
Motor: 3/4 HP
Width of Bed: 4-7/8"
Follow Rest Capacity: 1-7/8"
Steady Rest Capacity: 1-7/8"
Taper in Tailstock Spindle: MT-2
Tailstock Spindle Travel: 1-9/16"
Carriage Travel: 16"
Cross Slide Travel: 5"
Compound Slide Travel: 1-7/8"
Range of Metric Threads: .5 - .3
Number of Metric Threads: 11
Range of Inch Threads (TPI): 8 - 56
Number of Inch Threads: 27
Range of Longitudinal Feeds (IPR): .005 - .011
Number of Longitudinal and Cross Feed Rates: 27
Range of Spindle Speeds (RPM): 130 - 2,000
Number of Spindle speeds: 6
Spindle Taper W/ Sleeve: MT-3
Spindle Mount: 1-1/2 x 8
Spindle Bore: 25/32"
Distance Between Centers: 20"
Swing Through Gap: 20"
Swing over Cross Slide: 5-1/4"
Swing over Bed: 8-3/4"
Overall dimensions: 37.5" x 20" x 45"
Estimated weight: 325 Lbs
