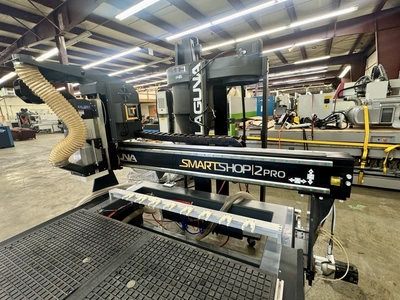

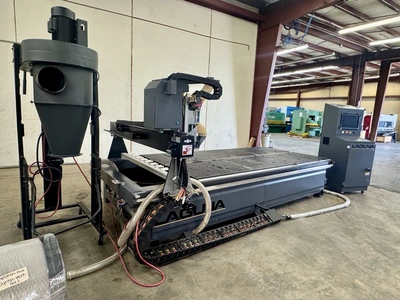

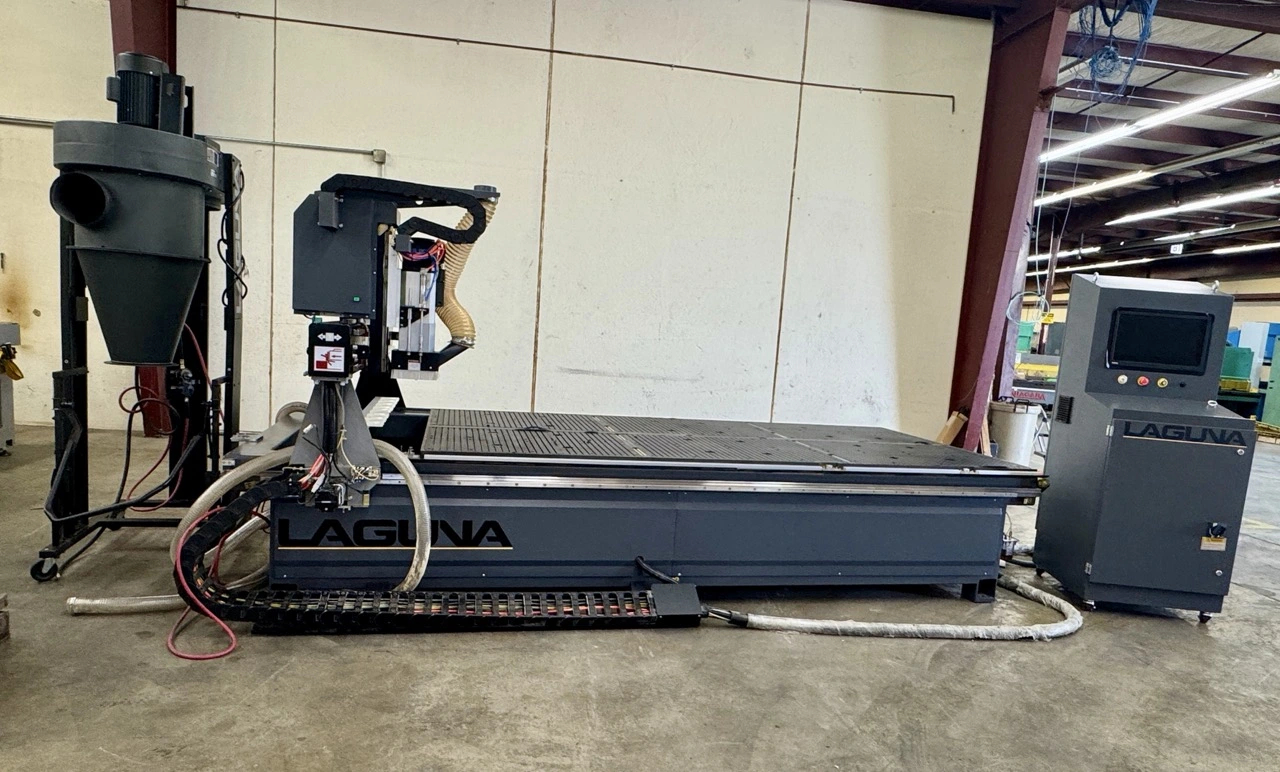

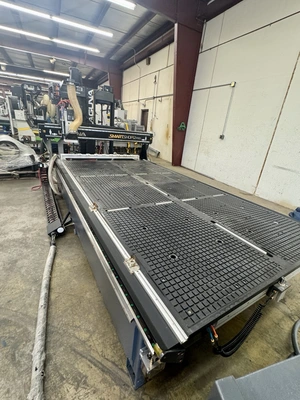

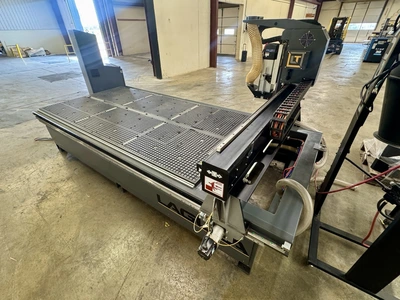

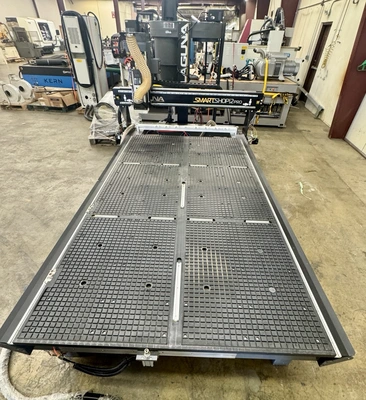

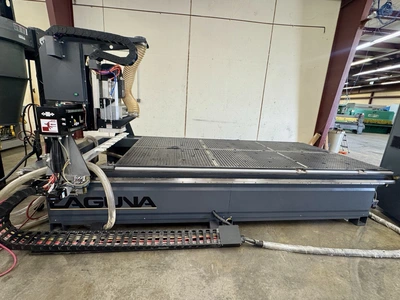

USED 2025 LAGUNA TOOLS SMARTSHOP II

Late-model 2024 Laguna Tools SmartShop II industrial CNC router featuring a full 5’ x 10’ vacuum table, powerful HSD automatic-tool-change spindle, 8-position ISO-30 tool changer and included 10 HP vacuum pump for high-production cabinet, woodworking, plastics and composite applications.
Model SmartShop II
Model Number MCNC SS2-2 / confirm complete serial-plate designation
Year 2024
Machine Type 3-Axis CNC Router
Table Size 60″ x 120″
Nominal Sheet Capacity 5′ x 10′
X-Axis Travel 60″
Y-Axis Travel 120″
Z-Axis Travel Approximately 9.5″
Work Envelope Approximately 61″ x 121″ x 8″
Gantry Clearance Approximately 11″
Spindle HSD Italian electrospindle
Spindle Horsepower commonly 11 HP on this SS2 configuration
Spindle Speed 6,000–24,000 RPM
Spindle Taper ISO-30

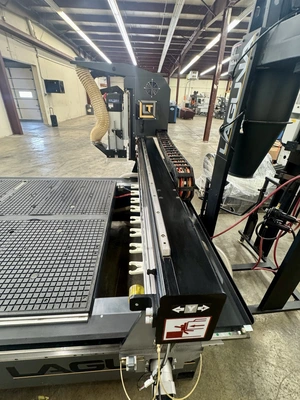

Automatic Tool Changer 8-position rear tool rack

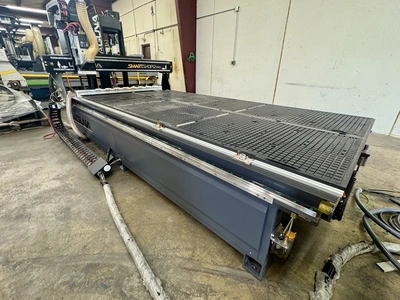

Table Type Phenolic vacuum table with T-slots
Vacuum Zones Six independently controlled zones
Vacuum Pump Included 10 HP vacuum pump
Axis Drive Helical rack-and-pinion on X and Y axes
Z-Axis Drive Precision-ground ball screw
Gantry Drive Dual-drive Y-axis
Linear Guides 25 mm HiWin HG-series linear bearings and rails

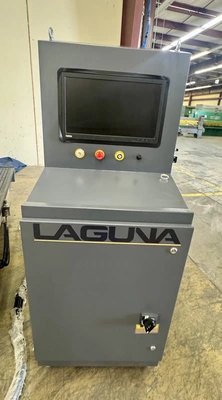

Controller Laguna Touch-series CNC controller
Programming Industry-standard G-code
Program Transfer USB and Ethernet
Rapid Traverse Approximately 720 IPM
Cutting Speed Up to approximately 550 IPM
Lubrication Centralized lubrication system
Dust Port 4″
Electrical 208–220 volts; phase and amperage dependent upon configuration
Machine Footprint Approximately 90″ x 160″
Machine Weight Approximately 3,500–4,500 lb., depending on configuration
