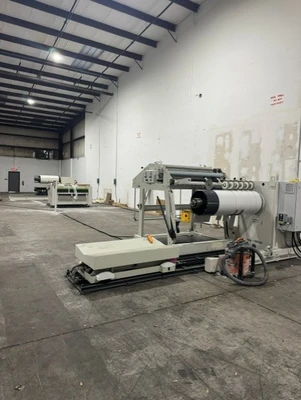

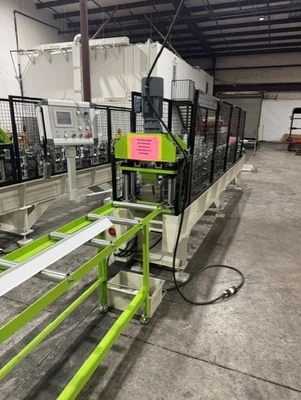

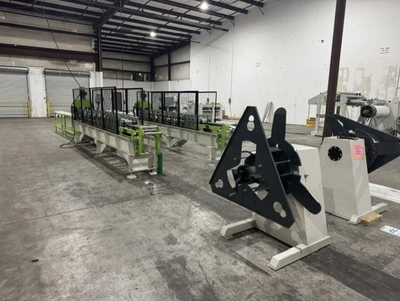

USED 2023 CIDAN COMPACT PRO 1250 / RC5 / QXS16C

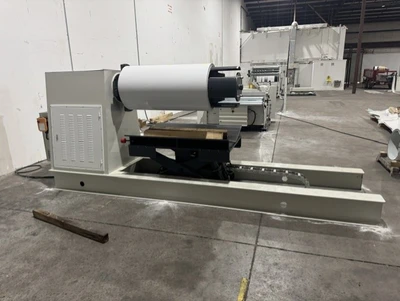

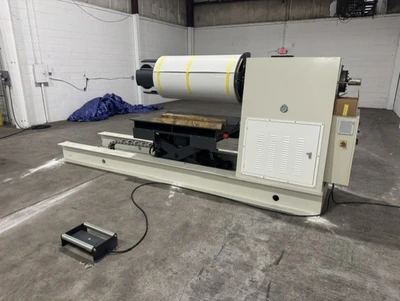

CIDAN QX16C Powered Decoiler & Hydraulic Coil Cart
Coil Weight Capacity: 16,000lbs
Max Coil Width: 51″
Mandrel Expansion: Hydraulic 4-Plate Wedge Expansion
Rotational Drive Power: 5.5 HP
Hydraulic Pump Motor: 4 HP
Coil Cart: Hydraulic Scissor-Lift Cart with 13.75″ stroke height
Speed Control: Floor-Mounted Ultrasonic Loop Control Sensor
Electrical: 460V, 3-Phase
Approximate Machine Dimensions: 151″ x 43″ x 68″
Approximate Machine Weight: 8,000lbs

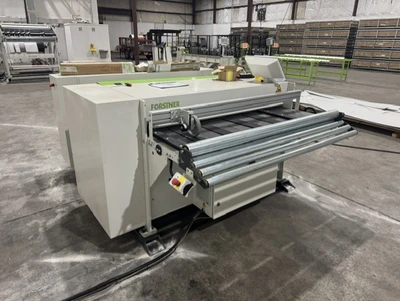

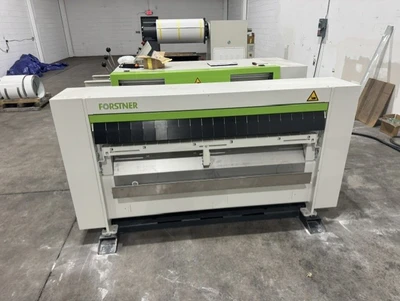

CIDAN Compact Pro Slitting & Cut-to-Length System
Infeed Width Capacity: 50″
Straightening Unit: 6 Power straightening rollers
Slitting Shafts: 3.94″
Slitting Knives: 5 dual-sided Rc45 Cap-Lock Slitting Knives
Shearing Unit: Integrated 16 ga with High-Carbon Blades
Processing Speed: 82 FPM with Variable Speed Dial Control
Pinch Rollers: Fully Rubberized Full-Width Pinch Rollers
Motor Power: 6 HP
Electrical: 460V, 3-Phase
Approximate Dimensions: 68″ x 72″ x 42″
Approximate Weight: 5,600lbs

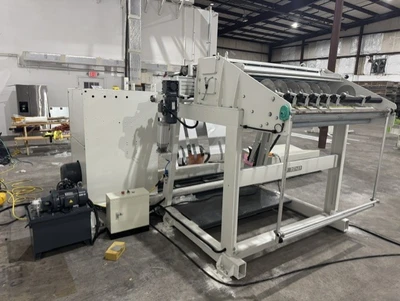

CIDAN Forstner RC5 Recoiling System
Working Width Capacity: 50″
Sitting Recoil Capacity: Up to 5 Simulatensous Slits in 20 ga (Mild Steel)
Mandrel Drive Motor: 15 HP
Mandrel Expansion Range: 18.9″ – 20″ with Drop-Down Arbor Support
Tensioning System: Dual Pneumatic Felt Bladder Tensioner
Material Guiding 7 Free-Spinning Adjustable Guide Discs
Integration: Integrated Dancer Arm Sensor for Variable-Speed Matching up to 85 FPM
Electrical: 460V, 3-Phase
Approximate Machine Dimensions: 142″ x 126″ x 82″
Approximate Machine Weight: 7,500lbs
Overall Approximate Combined Net Weight: 21,100lbs
Equipped With
SPS-S1 Touchscreen CNC Controller
