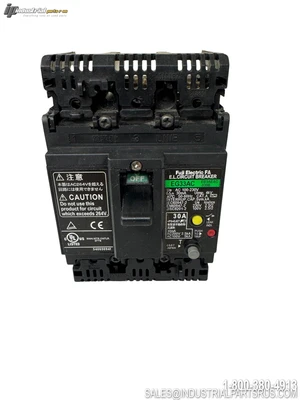

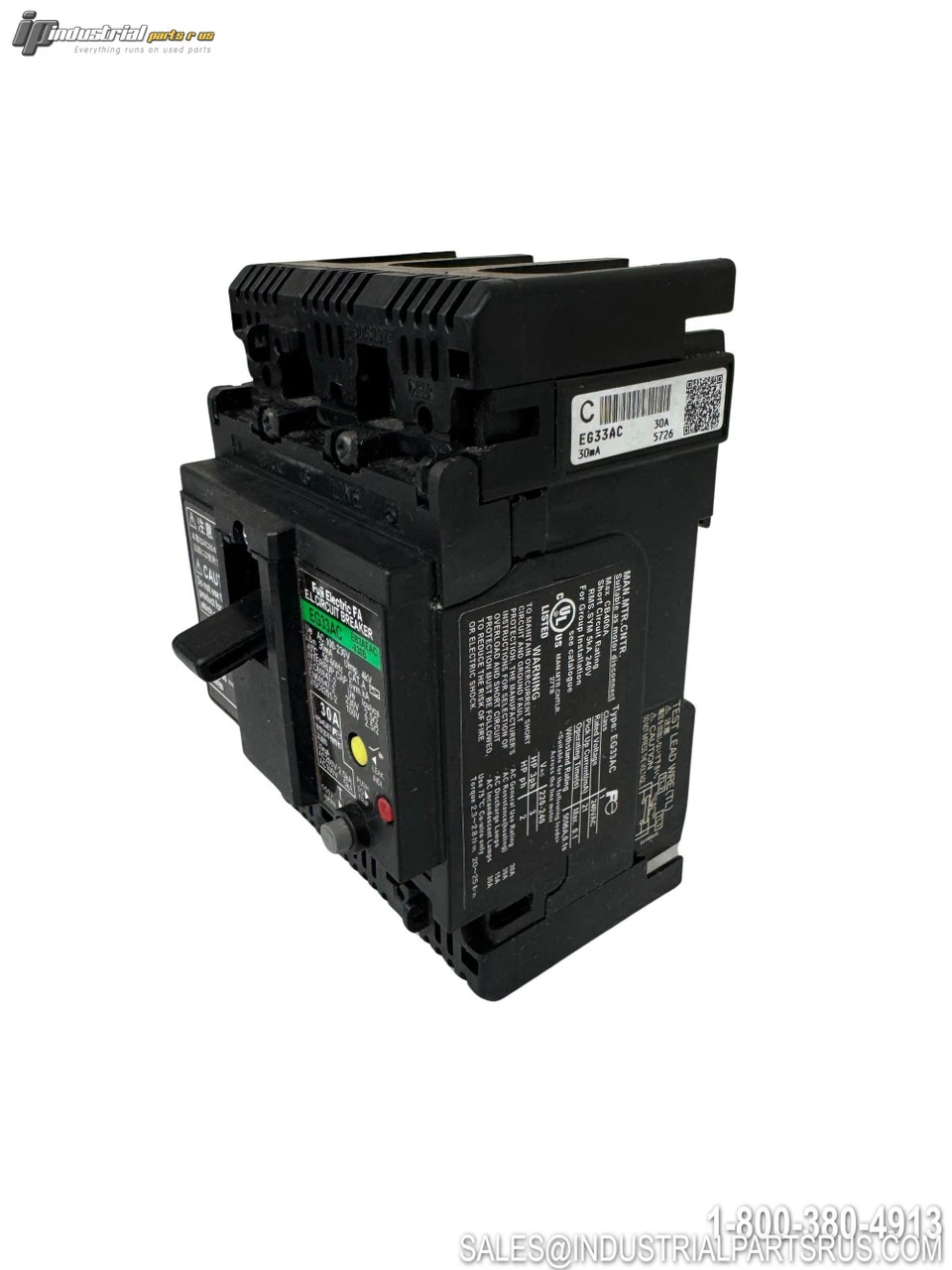

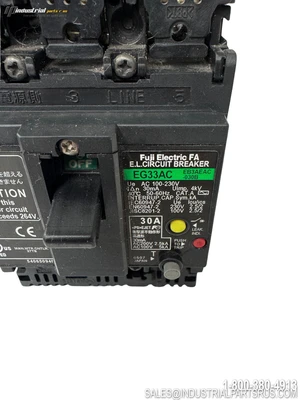

USED FUJI EG33AC

Fuji Electric EG33AC
is a
3-pole, 30 A Earth Leakage Circuit Breaker (ELCB)
from Fuji Electric's
α-TWIN Series
. It is designed to provide both overcurrent protection and ground-fault (earth leakage) protection in three-phase industrial electrical systems. It is a discontinued model that has been replaced by newer Fuji Electric G-TWIN series breakers.
Manufacturer:
Fuji Electric
Model:
EG33AC
Type:
Earth Leakage Circuit Breaker (ELCB)
Poles:
3
Rated current:
30 A
Frame size:
30 AF
Series:
α-TWIN
Mounting:
Surface mount
Specification
Value
Brand
Fuji Electric
Model / Part Number
EG33AC
Product Type
Earth Leakage Circuit Breaker (ELCB)
Series
EG Series
Number of Poles
3
Ampere Frame
30A
Available Rated Current (A)
5, 10, 15, 20, 30
Rated Operating Voltage (AC)
100–230V AC
Rated Sensitive Current (Earth Leakage) [mA]
15 mA, 30 mA, 100 mA (specified at order)
Interrupting Capacity Icu/Ics @ 100–230V AC
2.5 kA / 2.0 kA
Applicable 3-Phase Load (HP) @ 220–240V AC
0.5 / 1 / 2 / 2 / 3 HP (5–30A)
Applicable Single-Phase Load (HP) @ 220–240V AC
1/6 / 1/3 / 3/4 / 1 / 2 HP (5–30A)
Standards
IEC 60947-2, JIS C8201-2-2, UL508 (cUL)
UL508 Rated Operating Voltage
240V AC
Mounting Types Available
Blank (panel), X, E, Y, P (plug-in)
Test Button
Yes (built-in)
Trip Button
Yes
CE Marking Model
EG33AC-CE
Insulation
Resin-molded ZCT integrated unit
Accessory Dimensions (A × B × C, mm)
85 × 42.5 × 83
Manufacturer
Fuji Electric FA Components & Systems Co., Ltd.
We warranty all items for 30 days from date of purchase.
