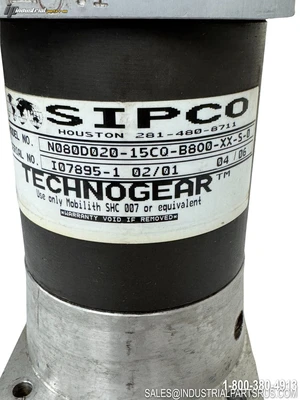

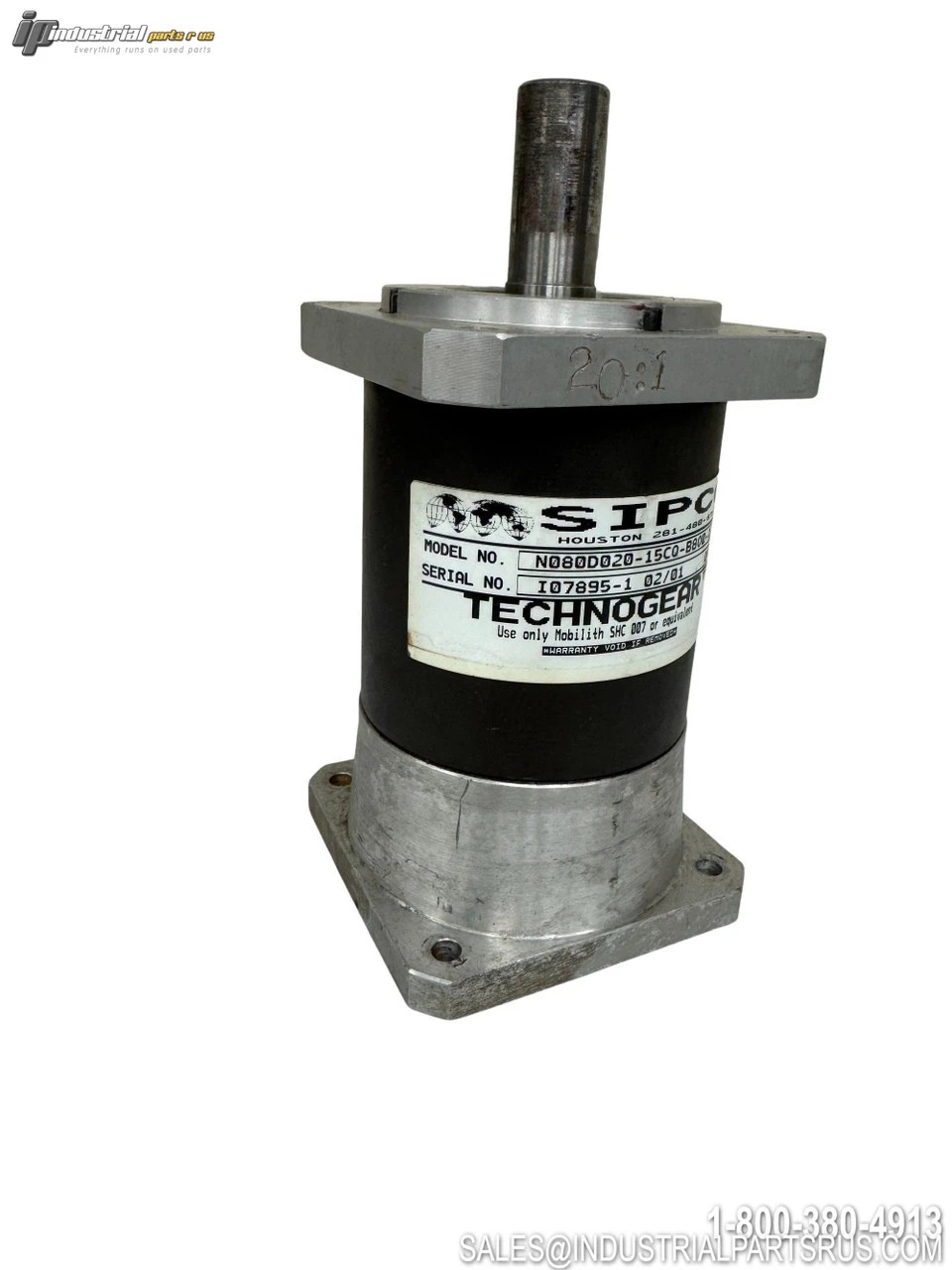

USED SIPCO N080D020-15CQ-B8O0-XX-S-0

The Sipco TechnoGear N080D020-15CQ-B8O0-XX-S-0 is a precision inline planetary gear reducer designed for servo drive systems requiring high positioning accuracy and reliable torque transmission. This unit features an 80mm IEC flange frame, a 20:1 reduction ratio, keyless clamping input coupling, and synthetic lubrication for maintenance-reduced operation. It is part of SIPCO's TechnoGear planetary reducer series, engineered for low backlash and high dynamic loading in compact, modular packages suitable for robotics, packaging, and motion control applications.
Specification
Value
Brand
Sipco
Model / Part Number
N080D020-15CQ-B8O0-XX-S-0
Product Line
TechnoGear
Product Type
Planetary Gear Reducer
Gear Ratio
20:1
Configuration
In-Line (Concentric Shaft)
Number of Stages
2 (Double Stage)
Frame / Flange Size
80mm
Output Shaft Diameter
20mm
Input Shaft Diameter
14mm
Input Style
Keyless Clamping Coupling (CQ)
Motor Adapter Flange
IEC B8 / 80mm Servo Flange
Backlash Class
Standard (≤15 arc-minutes)
Mounting Type
Flange Mount
Lubrication
Synthetic (Lubricated for Life)
Efficiency
90–96%
Max Input Speed
Up to 6,000 RPM
Special Options
None (XX)
Version
Standard (S)
Manufacturer
Sipco / SIPCO-MLS
Typical Applications
Robotics, Packaging, CNC, Servo Drives, Motion Control
We warranty all items for 30 days from date of purchase.
