USED 2024 MG S.R.L. AR 130
Overview
5.1" diameter| 3 Roll| 2024

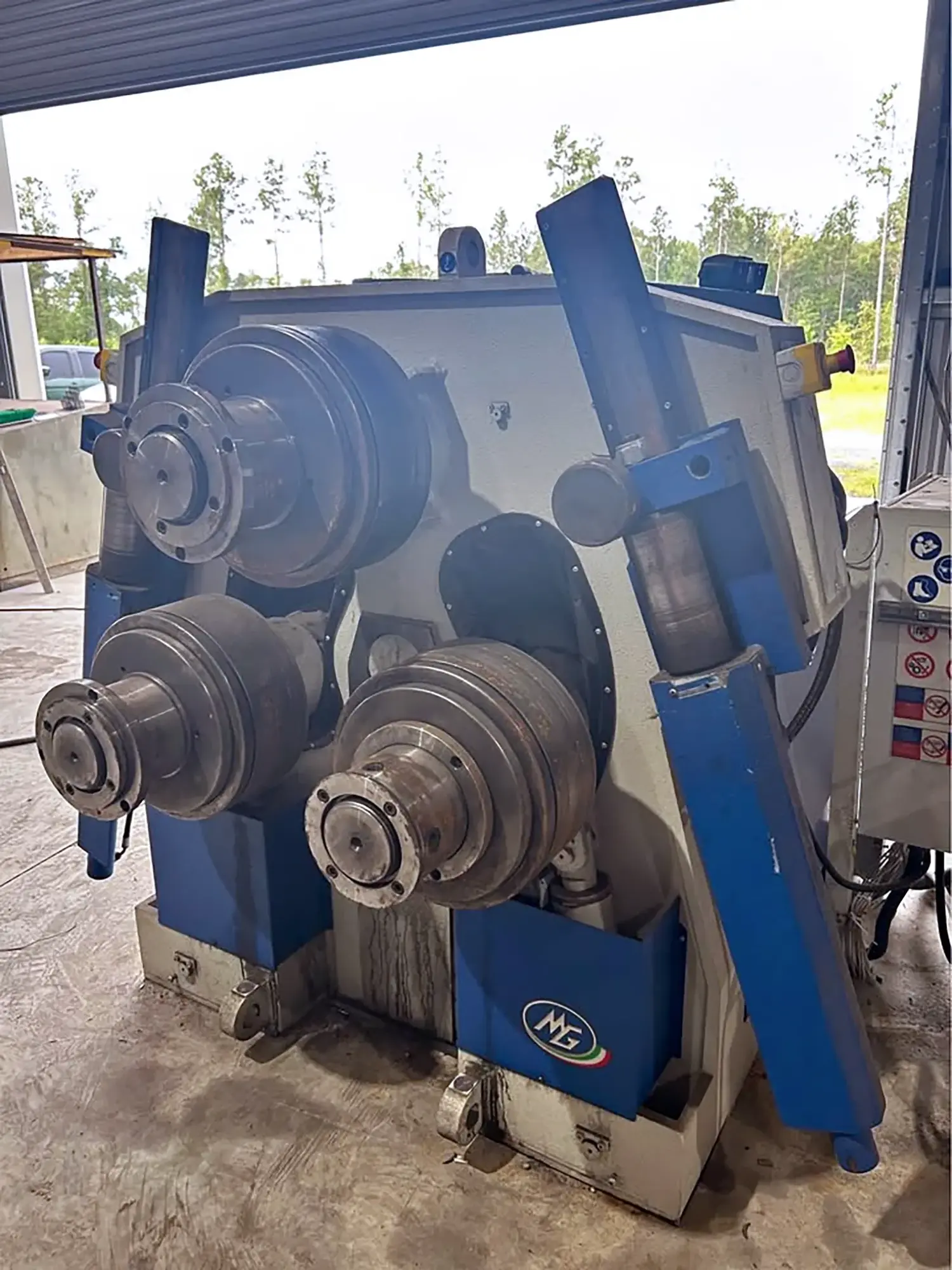

The MG S.R.L AR 130 Angle Roll Bending Machine (2024) is a heavy-duty profile bending system engineered to cold-form structural steel profiles, pipes, tubes, and bars into precise arcs, rings, and spirals. Ideal for structural fabrication, tank and vessel manufacturing, heat exchangers, spiral piping, transportation, and heavy equipment industries, it delivers consistent accuracy, high productivity, and superior forming performance.
Specs
Shaft Diameter: 130 mm (5.1")
Rolls: 3 Driven Rolls
Roll Adjustments: Fully Hydraulic
Variable Speed: Yes
Digital Position Readout: Yes
Programmable Control: Yes
Horizontal/Vertical Operation: Yes
Hydraulic Guide Rolls: Yes
Power: 15 kW (24A)
Electrical: 480V / 60Hz / 3 Phase
Weight: 3,800 kg (8,378 lbs)
Equipped With

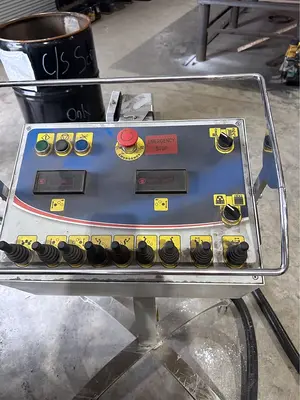

✔ Joystick Remote Pendant
✔ Hydraulic 3-roll system
✔ Three powered rolls
✔ Hydraulic side guide rolls
✔ Digital control pendant
✔ Dual digital readouts
✔ Variable speed control
✔ Hydraulic adjustment
✔ Foot pedal
✔ Emergency stop
✔ CE compliant
✔ 480V electrical package
✔ Italian-built MG heavy-duty frame
