USED 2022 DN SOLUTIONS DNM 6700

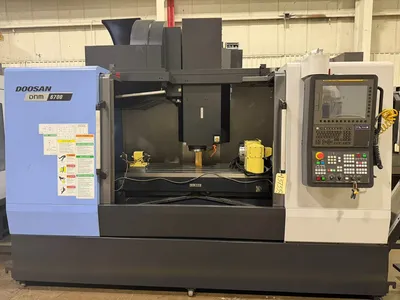

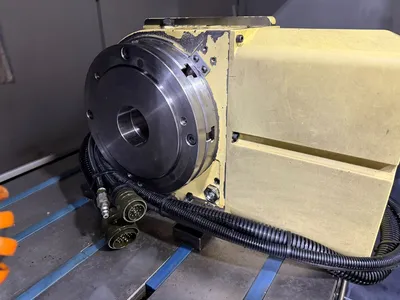

Doosan "DNM 6700" 4 Axis Vertical Machining Center (2022)

Large Linear Roller Guides (X - 45 mm \ 1.772", Y - 45 mm \ 1.772", Z - 45 mm \ 1.772")
Servo motors mounted directly to the oversized and pre-tensioned ball screws (X - 40 mm \1.575", Y - 40 mm \ 1.575", Z - 40 mm \ 1.575")
Fast rapid traverse rate (X - 36 m/min \ 1,417 ipm, Y - 36 m/min \ 1,417 ipm, Z - 30 m/min \1,181 ipm)
X axis travel 1,300 mm (51.18")
Y axis travel 670 mm (26.38")
Z axis travel 625 mm (24.60")

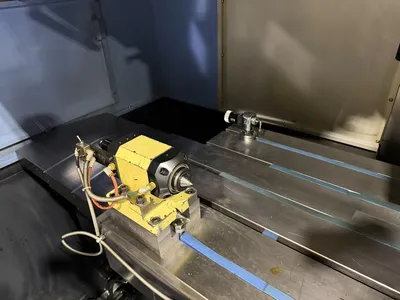

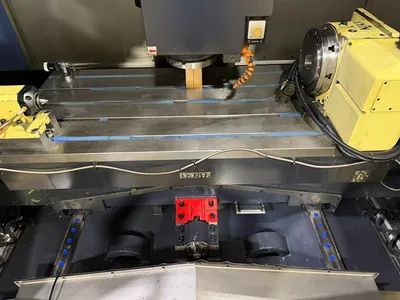

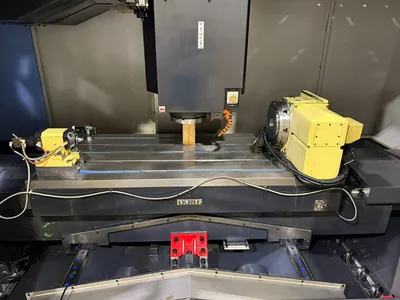

Table loading area 1,500 mm x 670 mm, (59.05" x 26.37")
Allowable table load 1,300 kg (2,866 lbs)
Table T-slot spacing x width (5) - 125mm x 18H8,(5) - 4.92" x .71"

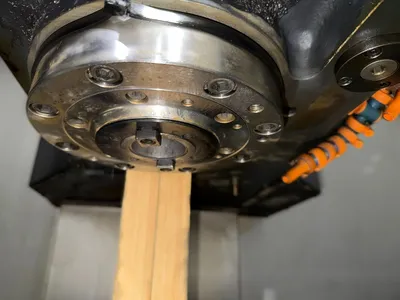

SPINDLE:
High precision, direct coupled spindle design with (11 / 18.5 kw \ 15 / 25 hp motor, 12,000 rpm)
Spindle nose to table top 150 mm to 775 mm (5.9" to 30.51")
Big Plus Spindle system CAT 40 Big Plus
Spindle speed 12,000 rpm
AC Spindle Motor (S3 15%) 11 / 18.5 kw (15 / 25 hp)
Spindle Torque (S3 15%) 118 nm (87 ft-lbs)
Spindle Acceleration \ Deceleration time 0 - 12k (2.06 sec) \ 12k - 0 (2.12 sec)

AUTOMATIC TOOL CHANGER:
Cam Type, Double Arm ATC
Number of Tools: 30
Tool Shank CAT 40
Pull Stud (Supply Company #) 711-23
Max. Tool Dia. \ Adjacent pots are empty (30) 80 mm \ 125 mm (3.15" \ 4.9")
Max. Tool Dia. \ Adjacent pots are empty (40\60) 76 mm \ 125 mm (2.99" \ 4.9")
Max. Tool Length 300 mm (11.8")
Max. Tool Weight 8 kg (17.6 lbs)
