USED 2014 SUPERTEC G25P-50CNC
Overview

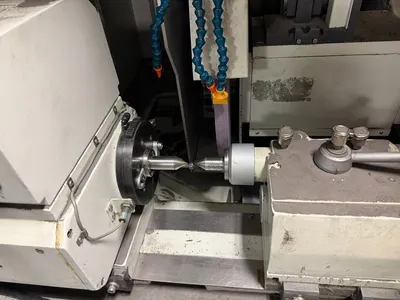

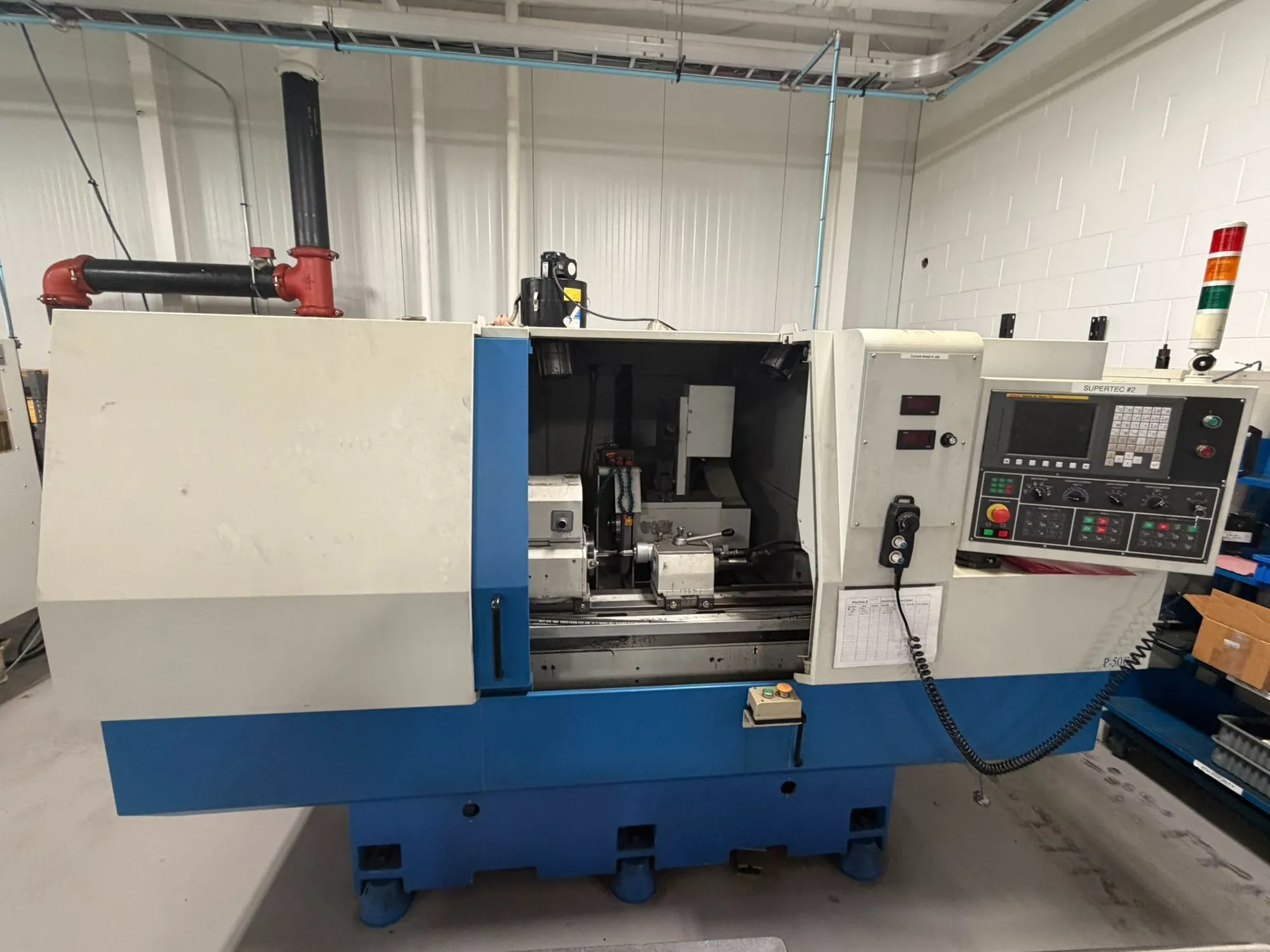

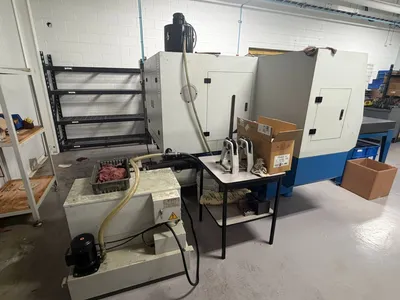

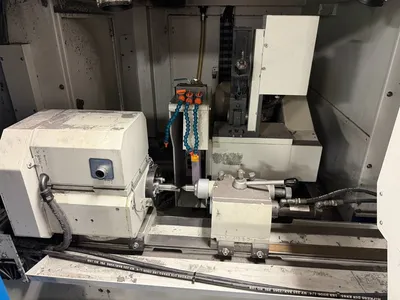

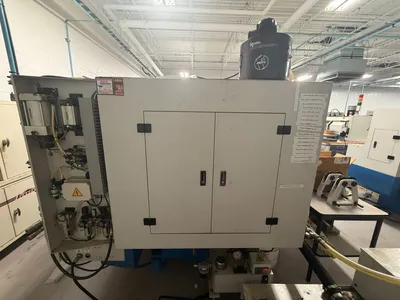

2014 Supertec G25P-50CNC grinder in used condition. Features 10" swing over table, 20" between centers, 16" grinding wheel, and Fanuc Oi Mate-TD CNC control. Includes coolant system, wheel dresser, Marposs T18 Touch Probe, and more. Ideal for precision work.
Specs
SWING OVER TABLE: .................... 10"
DISTANCE BETWEEN CENTERS: ............ 20"
MAX. GRINDING DIAMETER: .............. 10"
MAX. LOAD BETWEEN CENTERS: ........... 176 LBS
GRINDING WHEEL
DIAMETER X WIDTH X BORE: ............. 16"X 1.5"X 5"
WHEEL SPEED: ......................... 1940 RPM
MAX. PERIPHERAL SPEED: ............... 118 FT/SEC
WHEELHEAD
SLIDING ANGLE: ....................... 90 DEGREES
AUTOMATIC RAPID TRAVERSE: ............ 236 IN/MIN
INFEED TRAVEL: ....................... 6"
MIN. INCREMENT INFEED: ............... 0.000010"
TAILSTOCK:
QUILL TRAVEL ......................... 1"
CENTER TAPER: ........................ MT3

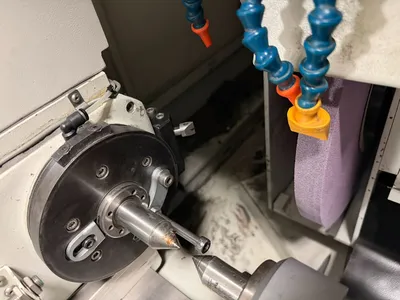

WORKHEAD:
SPINDLE SPEED (VARIABLE): ............ 50~500 RPM
CENTER TAPER: ........................ MT3
SPINDLE TYPE: ........................ FIXED & ROTARY
DIAMETER OF BORE: .................... 0.79"
INTERNAL GRINDING SPINDLE
SPINDLE SPEED: ....................... 14000 RPM (STD.) OR 25000 RPM (OPT.)
MAX. GRINDING BORE: .................. 0.9375"~ 2.75"
MAX. GRINDING LENGTH: ................ 2.75"
MAX. CHUCKING LENGTH: ................ 10.75"
MAX. CHUCKING DIAMETER: .............. 4.33"
TABLE:
SWIVELING ANGLE ...................... 7 DEGREES
(C.C.W):
RAPID FEEDERATE: ..................... 0-315 IN/MIN
MIN. INCREMENT FEED: ................. 0.0001"
MOTORS
WHEEL SPINDLE MOTOR: ................. 5 HP
WORKHEAD MOTOR: ...................... 0.25 HP
HYDRAULIC PUMP: ...................... 1 HP
LUBRICATION PUMP: .................... 0.25 HP
COOLANT PUMP: ........................ 0.125 HP
WHEELHEAD (X AXIS) MOTOR [FANUC]: .... 0.8 HP
TABLE (Z AXIS) MOTOR [FANUC]: ........ 0.8 HP
MACHINE
NET WEIGHT (SEMI-ENCLOSED): .......... 4400 LBS
GROSS WEIGHT INCLUDING PACKING: ...... 5500 LBS
PACKING DIMENSION: ................... 110"X69"X81"(L X W X H)
Equipped With

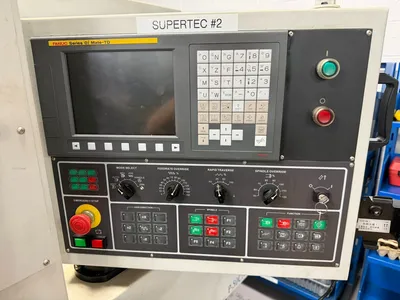

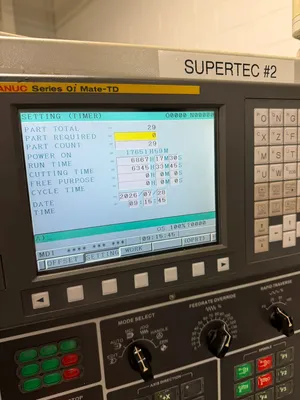

Fanuc Oi Mate-TD CNC Control

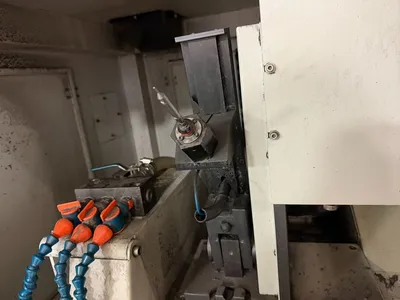

Wheel Dresser
Marposs T18 Touch Probe

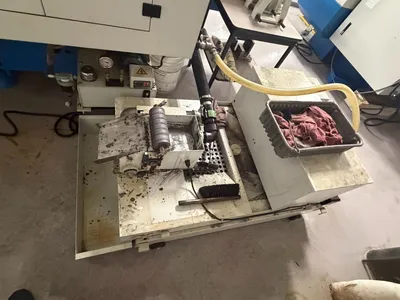

Coolant System
Royal Filtermist Mist Collector
Table Dial Gauge
