USED 2001 FANUC S-500I

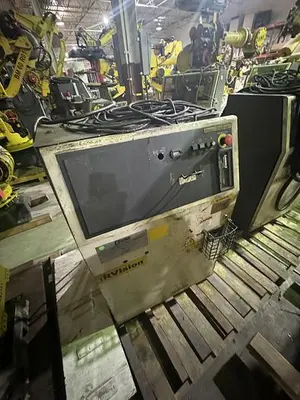

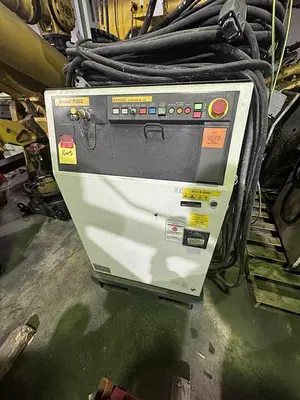

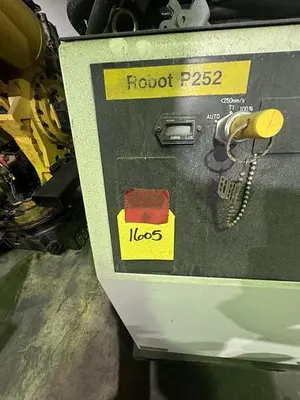

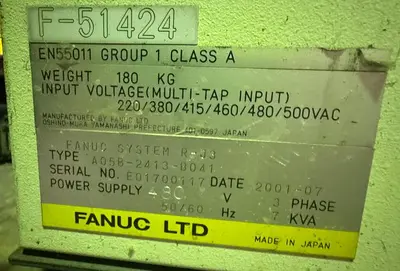

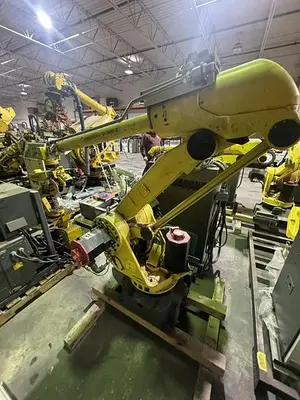

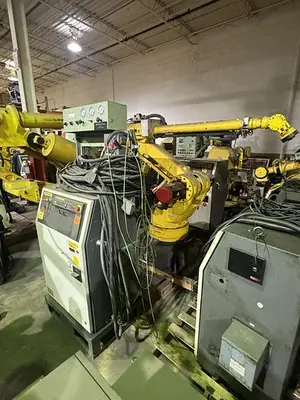

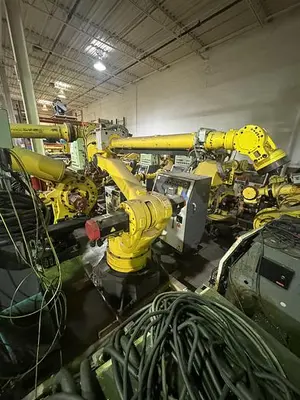

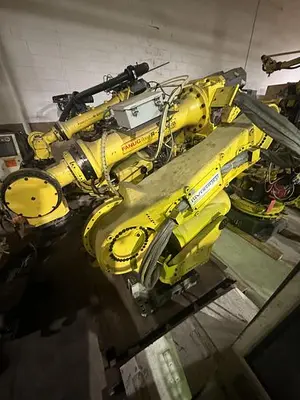

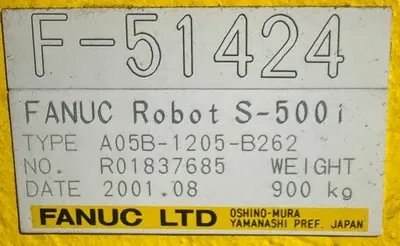

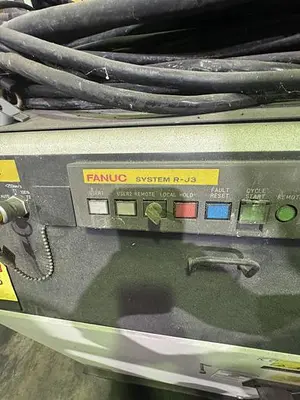

THE 2001 FANUC S500I IS A SIX-AXIS ARTICULATED CNC ROBOT DESIGNED FOR A VARIETY OF INDUSTRIAL APPLICATIONS, INCLUDING MATERIAL HANDLING, PICK AND PLACE, BONDING/SEALING, GRINDING, AND ARC WELDING. IT FEATURES A 15 KG PAYLOAD CAPACITY AND AN EXTENSIVE 2739 MM HORIZONTAL REACH, SUPPORTED BY A LARGE WORK ENVELOPE. THE MECHANICAL UNIT HAS A MASS OF 900 KG AND SUPPORTS FLOOR, INVERTED, AND ANGLE MOUNTING CONFIGURATIONS. TECHNICAL SPECIFICATIONS INCLUDE A REPEATABILITY OF ±0.2500 MM. AXIS MOTION SPEEDS ARE RATED AT 90°/S FOR J1 AND J2, AND 320°/S FOR AXES J3 THROUGH J6. THE MOTION RANGE FOR THE AXES IS J1 ±300°, J2 ±160°, J3 ±160°, J4 ±480°, J5 ±240°, AND J6 ±900°. THE SYSTEM IS EQUIPPED WITH A FANUC RJ3 CONTROLLER WEIGHING 180 KG, A TEACH PENDANT, AND CONNECTION CABLES. ITS DESIGN IS SUITABLE FOR TASKS SUCH AS DISPENSING, WELDING, AND PARTS TRANSFER.
