USED 2013 FANUC FANUC R2000IB/165F

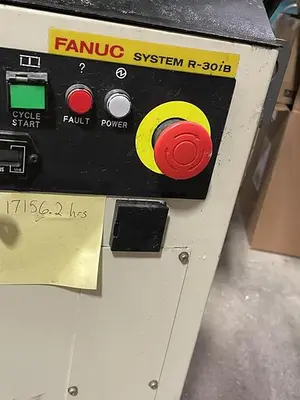

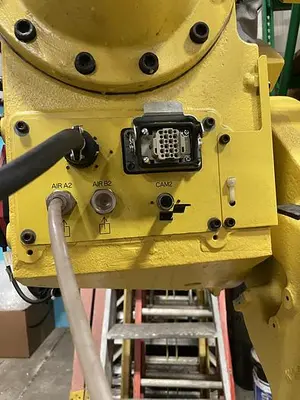

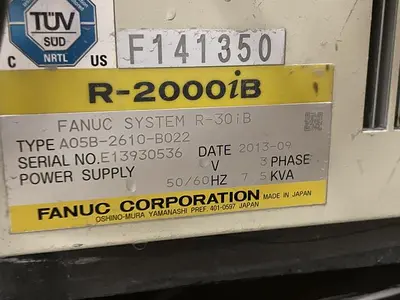

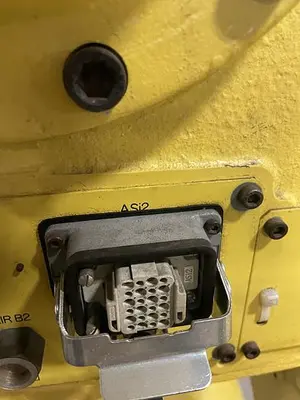

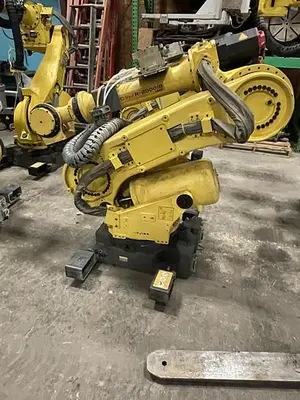

The 2013 FANUC R-2000iB/165F is a six-axis heavy payload articulated robot designed for applications including assembly, cutting, fiberglass cutting, foundry, injection molding, machine loading, machine tending, material handling, and spot welding. It features a 165 kg payload capacity, a 2655 mm horizontal reach, and a repeatability of ± 0.2 mm. The robot has a mass of 1170 kg and is designed for floor mounting. This model is equipped with an R-30iB controller, an i-Teach color pendant, EE cable connections, camera connections, ASI2 power connection, and FANUC robot connection cables. Axis motion speeds are 110°/s for J1, J2, and J3; 150°/s for J4 and J5; and 220°/s for J6. The motion range for the axes is J1 ±180°, J2 +75° to -60°, J3 +230° to -132°, J4 ±360°, J5 ±125°, and J6 ±360°. Its design includes a slim arm and wrist assembly suitable for operation in small spaces, with numerous process attachment points for integration.
