USED 2015 FANUC FANUC R-2000IB/210F

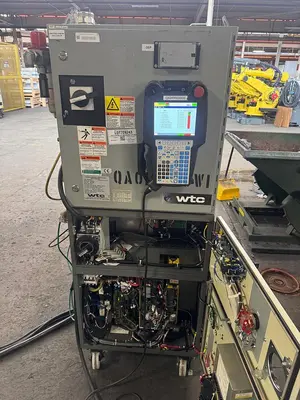

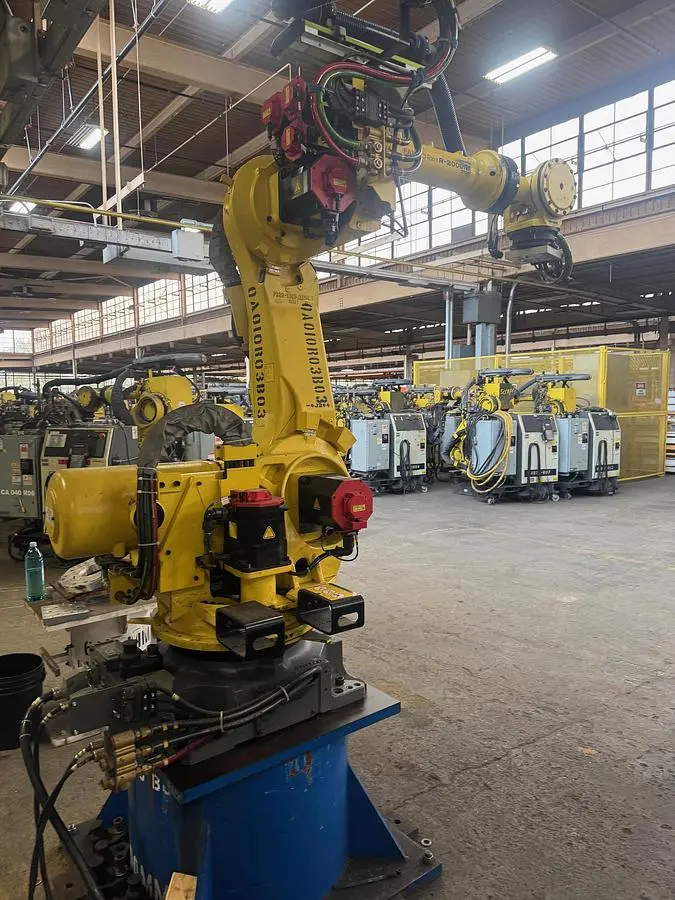

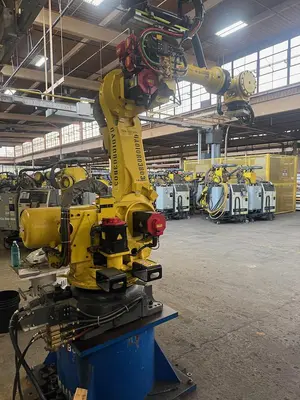

The 2015 FANUC R-2000iB/210F is a floor-mounted six-axis articulated robot designed for high-payload applications such as resistance welding, spot welding, injection molding, machine loading, material handling, assembly, and dispensing. It features a payload capacity of 210 kg, a horizontal reach of 2655 mm, and a repeatability of 0.3 mm. The mechanical unit has a mass of 1240 kg and is characterized by a slim arm and wrist design, providing a large work envelope with the ability to reach overhead and behind. The system is equipped with a FANUC R-30iB controller, a color teach pendant, and 7-meter connection cables. Axis motion speeds are 95°/s for J1 and J3, 90°/s for J2, 120°/s for J4 and J5, and 190°/s for J6. The motion range for the axes is J1 ±180°, J2 +75°/-60°, J3 +230°/-132°, J4 ±360°, J5 ±125°, and J6 ±360°. Its design allows for versatile application planning by reducing interference with system peripherals while maintaining the capability to operate in confined spaces.
