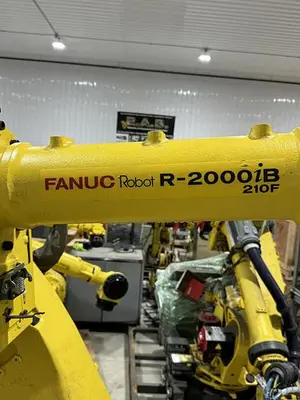

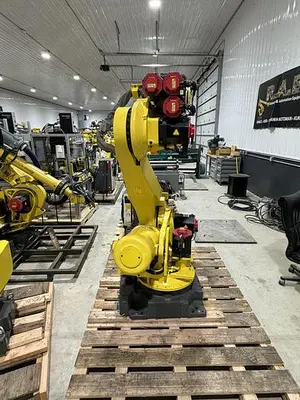

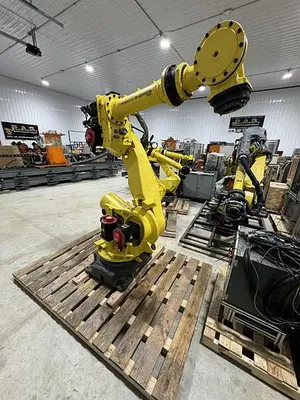

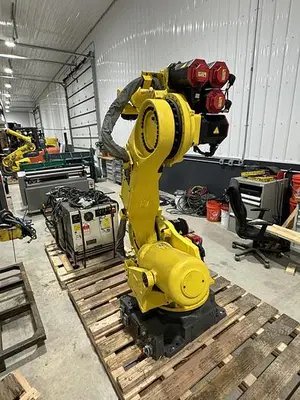

USED 2013 FANUC FANUC R-2000IB/210F

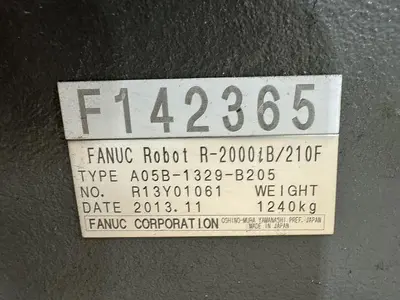

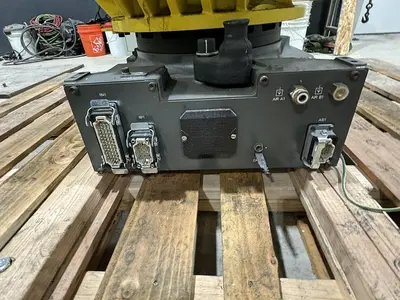

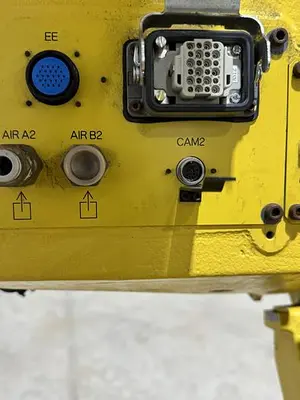

The 2013 FANUC R-2000iB/210F is a floor-mounted, six-axis articulated robot designed for high-payload applications including resistance welding, spot welding, injection molding, machine loading, material handling, assembly, and material removal. It features a payload capacity of 210 kg, a horizontal reach of 2655 mm, and a repeatability of 0.3 mm. The robot has a mass of 1240 kg and is equipped with a FANUC R-30iB Controller, color teach pendant, and connection cables. Its slim arm and wrist design facilitates access to confined spaces while maintaining a large work envelope with the ability to reach overhead and behind. Axis motion speeds are 95°/s for J1 and J3, 90°/s for J2, 120°/s for J4 and J5, and 190°/s for J6. The motion range for the axes is J1 ±180°, J2 +75°/-60°, J3 +230°/-132°, J4 ±360°, J5 ±125°, and J6 ±360°. The system includes EE and vision connections and utilizes a mechanical unit type A05B-1329-B205.
