USED FANUC GEN VI RTU

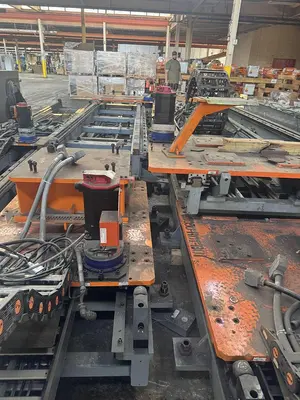

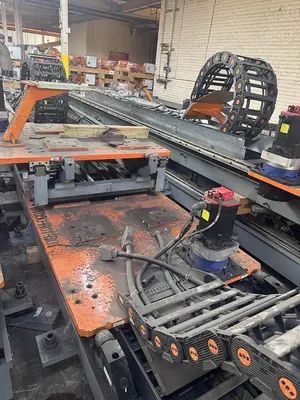

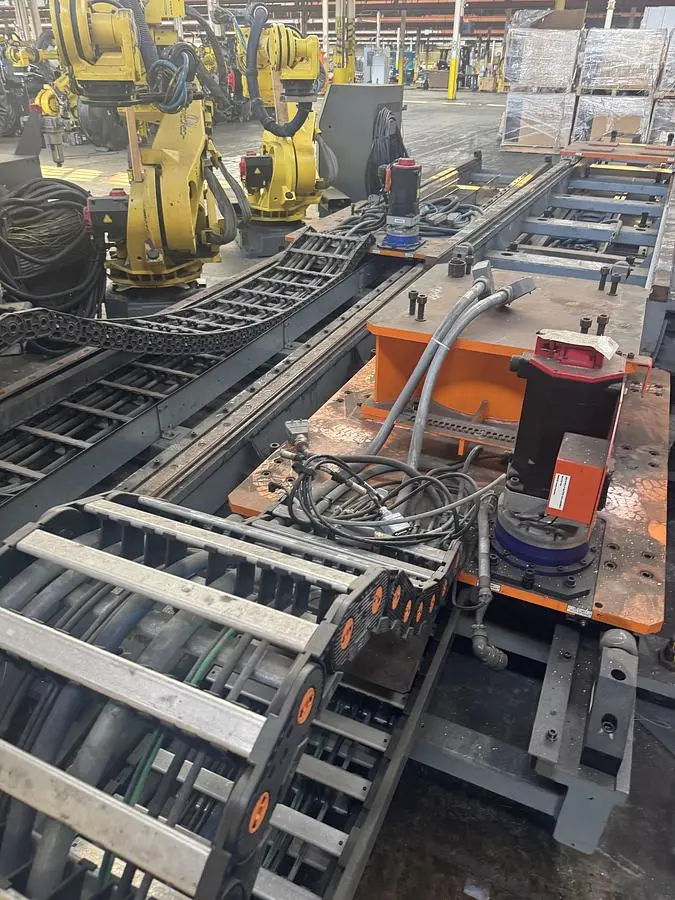

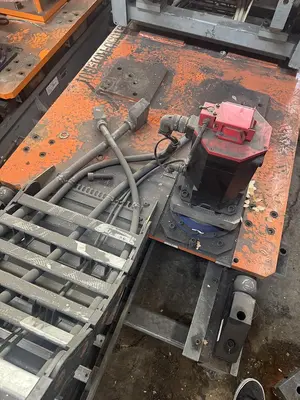

THE FANUC GENERATION VI ROBOT TRANSFER UNIT (RTU) IS A HEAVY-DUTY 7TH-AXIS LINEAR TRACK DESIGNED TO EXTEND THE OPERATING RANGE OF FANUC R-2000 AND M-900 SERIES ROBOTS. THIS SPECIFIC UNIT FEATURES AN OVERALL LENGTH OF 28 FEET AND IS ENGINEERED FOR HIGH-CAPACITY INDUSTRIAL APPLICATIONS. THE SYSTEM UTILIZES A PRECISION RACK AND PINION DRIVE MECHANISM COMBINED WITH HEAVY-DUTY LINEAR WAYS TO ENSURE STABLE AND ACCURATE MOVEMENT. IT IS EQUIPPED WITH A FANUC AC SERVO MOTOR FOR INTEGRATED MOTION CONTROL THROUGH THE ROBOT CONTROLLER. TECHNICAL FEATURES INCLUDE A COMPREHENSIVE FLEX CABLE MANAGEMENT SYSTEM TO PROTECT POWER AND SIGNAL LINES DURING TRAVEL, AS WELL AS AN INTEGRATED LUBRICATION SYSTEM TO MAINTAIN THE LINEAR GUIDES AND DRIVE COMPONENTS. THE UNIT PROVIDES THE STRUCTURAL RIGIDITY NECESSARY FOR HIGH-PAYLOAD ROBOTS, SUPPORTING APPLICATIONS SUCH AS HEAVY MATERIAL HANDLING, SPOT WELDING, AND LARGE-SCALE ASSEMBLY. MANUFACTURED IN APPROXIMATELY 2015, THIS GEN VI RTU SERVES AS A ROBUST PLATFORM FOR INCREASING THE WORK ENVELOPE OF LARGE ARTICULATED ROBOTIC ARMS.
