USED 2013 FANUC FANUC R2000IB/165F

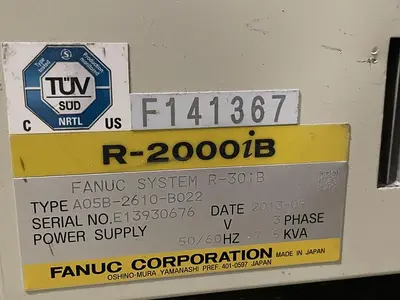

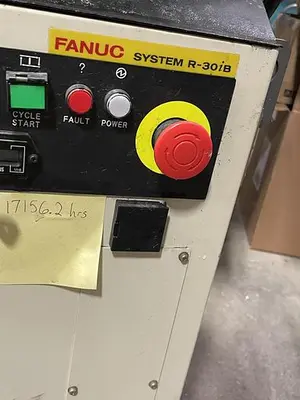

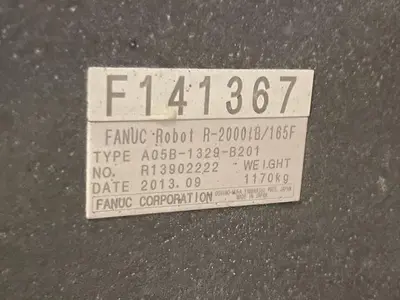

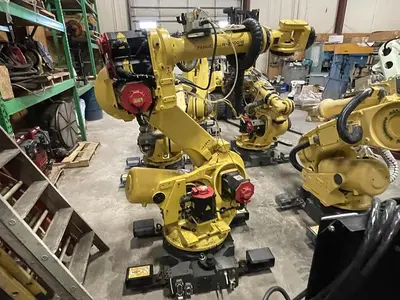

The 2013 FANUC R-2000iB/165F is a six-axis heavy payload industrial robot designed for high-productivity applications including assembly, cutting, foundry, injection molding, machine loading, material handling, and spot welding. It features a 165 kg payload capacity, a horizontal reach of 2655 mm, and a repeatability of ± 0.2 mm. The unit has a mass of 1170 kg and is designed for floor mounting. It is equipped with a FANUC R-30iB controller, an i-Teach color pendant, and necessary connection cables for the robot and vision systems. Axis motion speeds are 110°/s for J1, J2, and J3, 150°/s for J4 and J5, and 220°/s for J6. The motion range for the axes is J1 ±180°, J2 +75°/-60°, J3 +230°/-132°, J4 ±360°, J5 ±125°, and J6 ±360°. Its design includes a slim arm and wrist assembly for operation in confined spaces and incorporates numerous process attachment points to facilitate integration.
